Elo E330620 Touchscreen

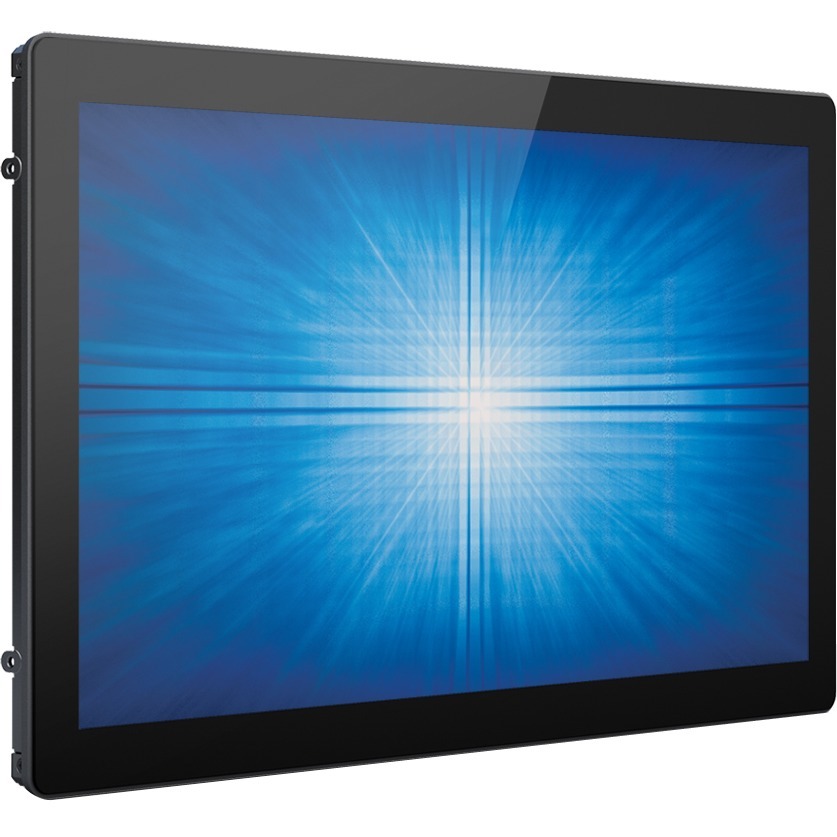

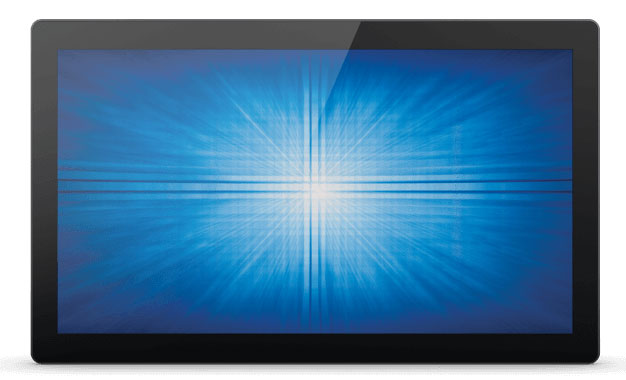

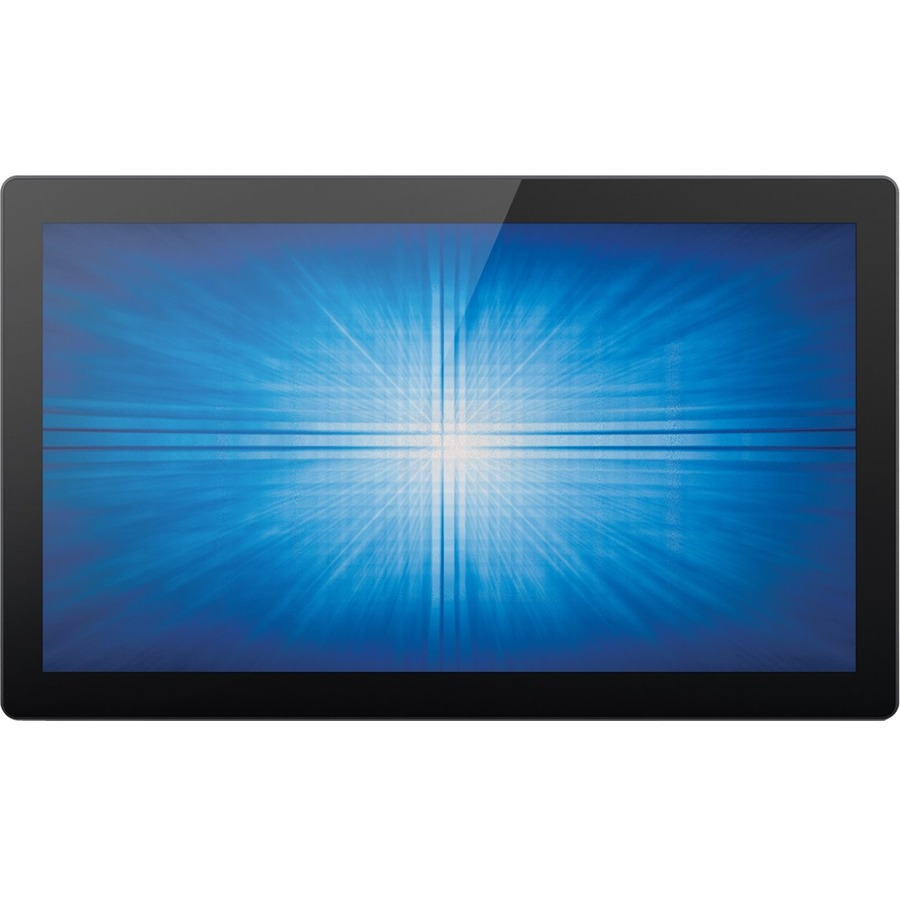

Elo 2294L - 21.5" Touchscreen Monitor, Elo 2294L, Open-Frame LCD WVA, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Clear, Zero-Bezel, Flush Mount, Black, 3-Year Warranty, No Power Brick, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, Flush Mount Brackets w/Screws (Part# E190706), EEI Label, Japan Class-B TM info sheet.
  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles

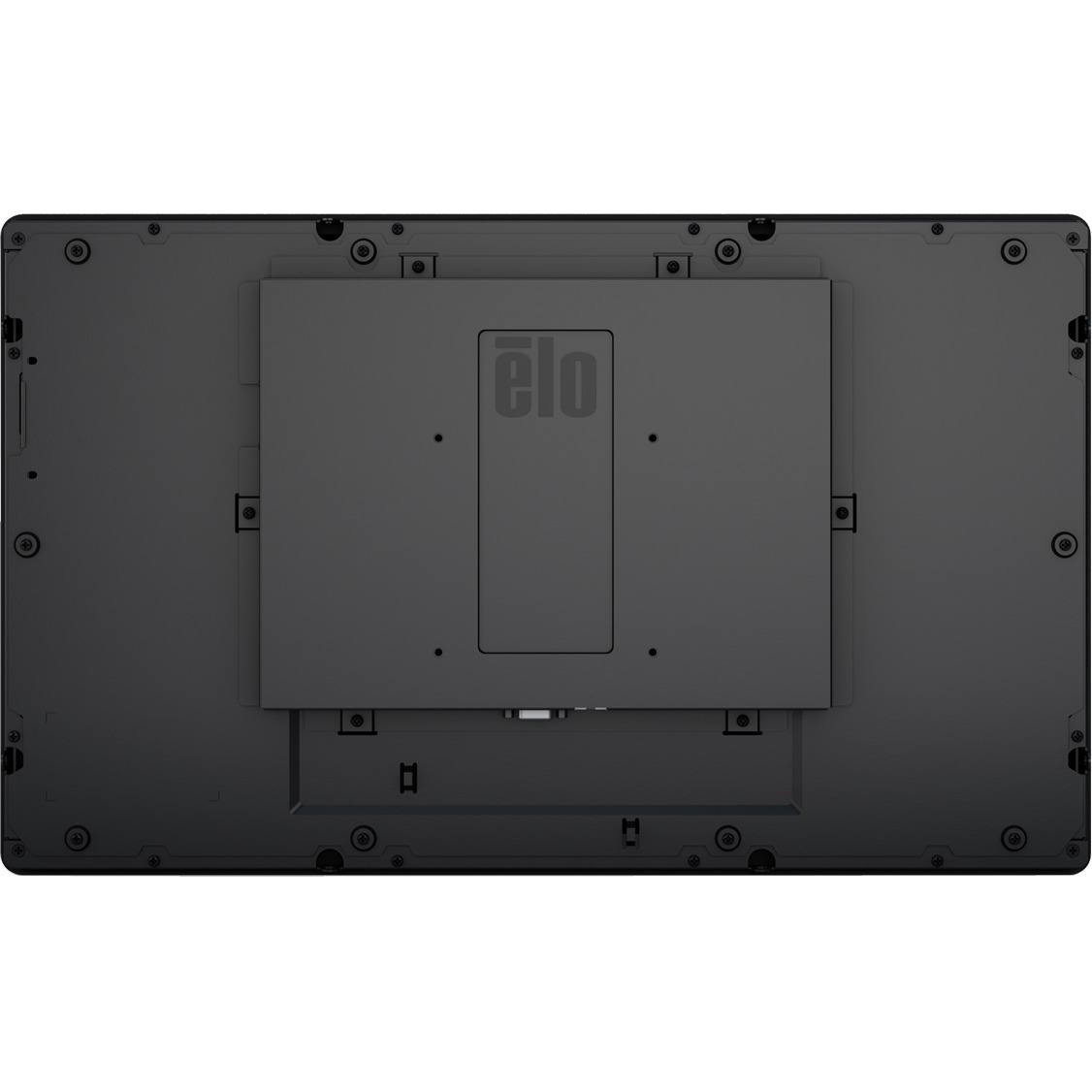

  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$727.00
In Stock
Add to Quote
Elo 2294L Digital Signage Display Model Overview

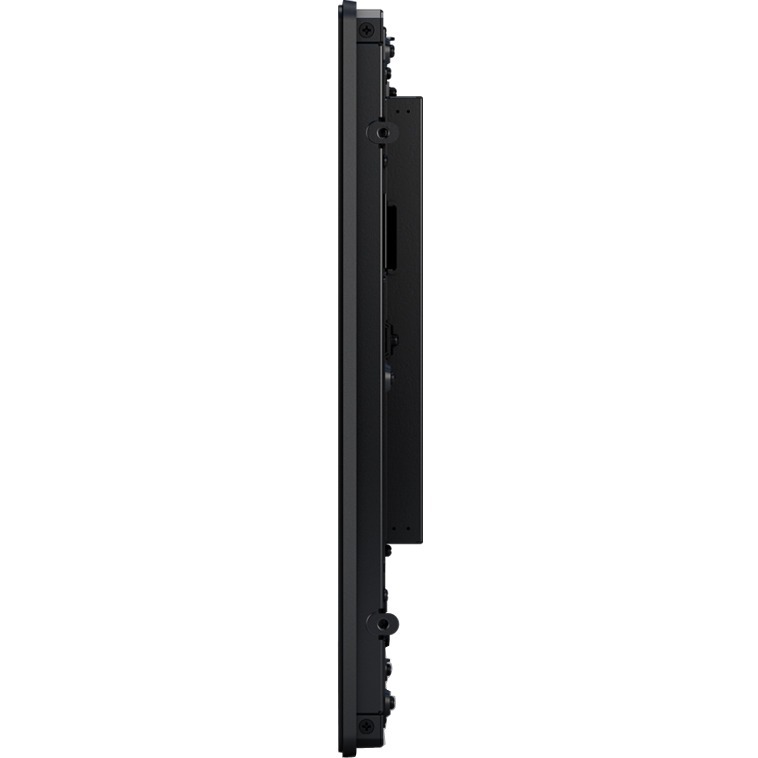

The Elo 2294L 22-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo E330620 Touchscreen Overview
The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • High definition LCD display offers ultimate HD interactivity, clarity and resolution
  • 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Display Port and VGA video interfaces
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Flush Mount
Backlight Technology:
LED
Features:
On-screen Display (OSD)
Curved Screen:
No
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
HDMI Version:
1.3
USB:
Yes
USB Standard:
USB 2.0
VGA:
Yes
DisplayPort:
Yes
DisplayPort Version:
1.1a
Power Description
Operating Power Consumption:
25 W
Standby Power Consumption:
1.50 W
Off-Mode Power Consumption:
500 mW
Energy Consumption per Year:
39 kWh
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
12.2"
Width:
20.3"
Depth:
1.5"
Weight (Approximate):
11.24 lb
Miscellaneous
Package Contents:
  • 2294L 21.5" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards:
  • TÜV
  • Mean Time Between Failures (MTBF):
    5.7 Year
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • China RoHS
    • WEEE
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0074050666844, 0815335025983, 0818214456687, 0818283636041
    UPC: 074050666844, 815335025983, 818214456687, 818283636041
    EAN: 0074050666844, 0815335025983, 0818214456687, 0818283636041
    UNSPSC: 43211903
    Questions? Get help from
    a POS Expert!

    What is your POS application?

    The Elo E330620 Touchscreen is also known as ELO-E330620 or E330620.
