Elo E700813 Touchscreen

Elo 1515L - 1000 Series 1515L Touch Screen Monitor - 15" - Surface Acoustic Wave - 1024 x 768 - 4: 3 - Dark gray
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 230 Nit brightness
  • The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
Read More
$583.10
In Stock:
Ships Same Day
Why don't we show the price?

Full specifications (PDF)

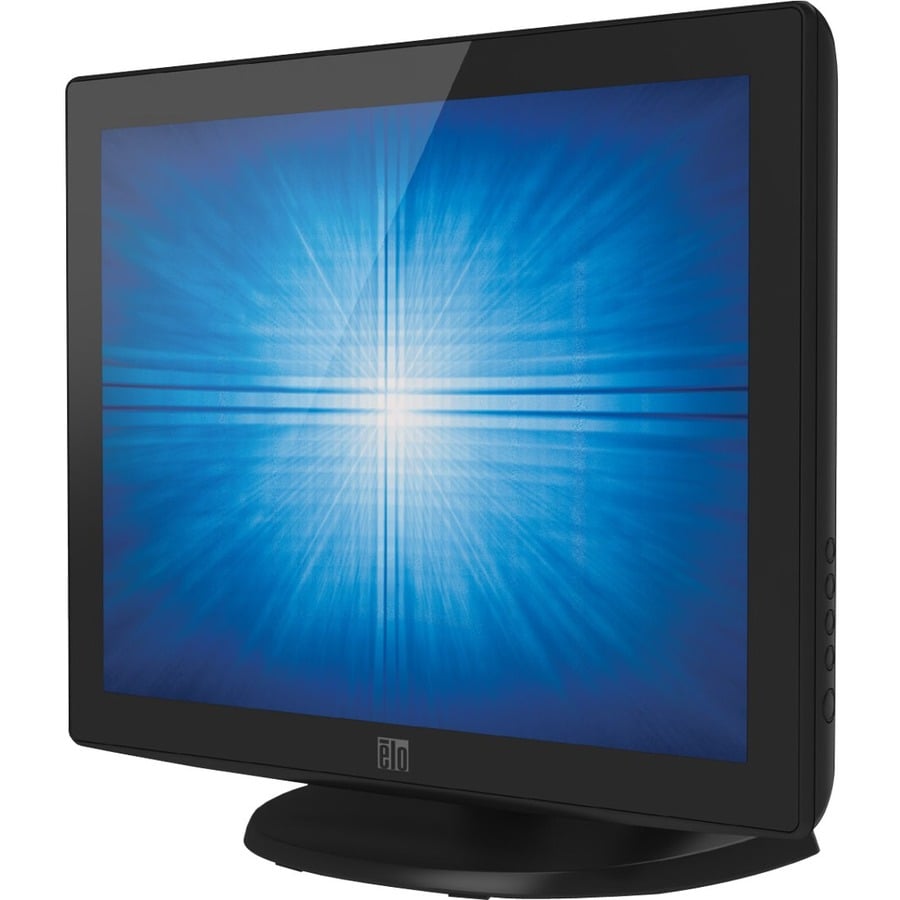

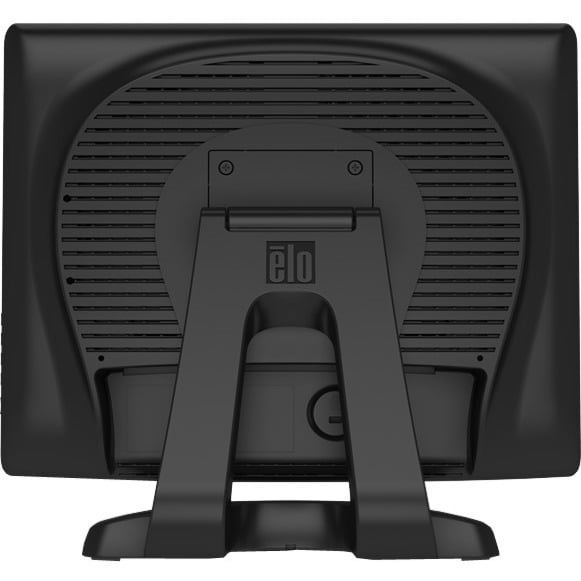

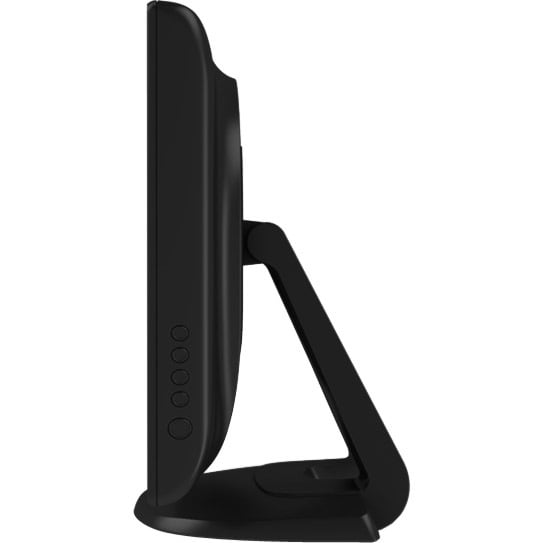

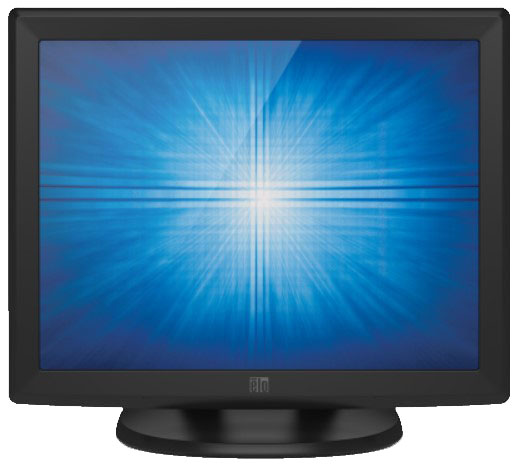

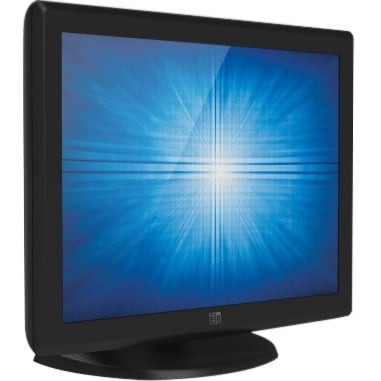

15" Flat Panel Desktop Touch Monitor in Dark gray
The 1000 Series of touchmonitors are designed, developed and built to provide the most cost-effective touch solutions. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease, or IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications, plus a dual serial/USB interface, sealed touchscreen, internal power supply and removable base.
Elo E700813 Overview

The 1515L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems.

Full specifications (PDF)

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
11.70 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Mount Type:
  • Desk Mountable
  • Wall Mountable
Horizontal Frequency:
60.20 Hz
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
500:1
Brightness:
230 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
220 V AC
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
Dark Gray
Height with Stand:
12.20"
Width with Stand:
13.80"
Depth with Stand:
6.90"
Weight (Approximate):
7.30 lb
Weight with Stand (Approximate):
10.60 lb
Miscellaneous
Package Contents:
  • 1515L Desktop Touchscreen LCD Monitor
  • Detachable touch and video cables
Platform Supported:
  • Mac
  • Sun
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • China RoHS
  • ENERGY STAR
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0002583243416, 0096259933992, 0741149300575, 0818239928053, 0851905134594, 4923773182079, 4943783198655, 7411493005756, 7411930057560
UPC: 002583243416, 096259933992, 741149300575, 818239928053, 851905134594
EAN: 0002583243416, 0096259933992, 0741149300575, 0818239928053, 0851905134594, 4923773182079, 4943783198655, 7411493005756, 7411930057560
UNSPSC: 43211903
