Elo E692448 Touchscreen Signage

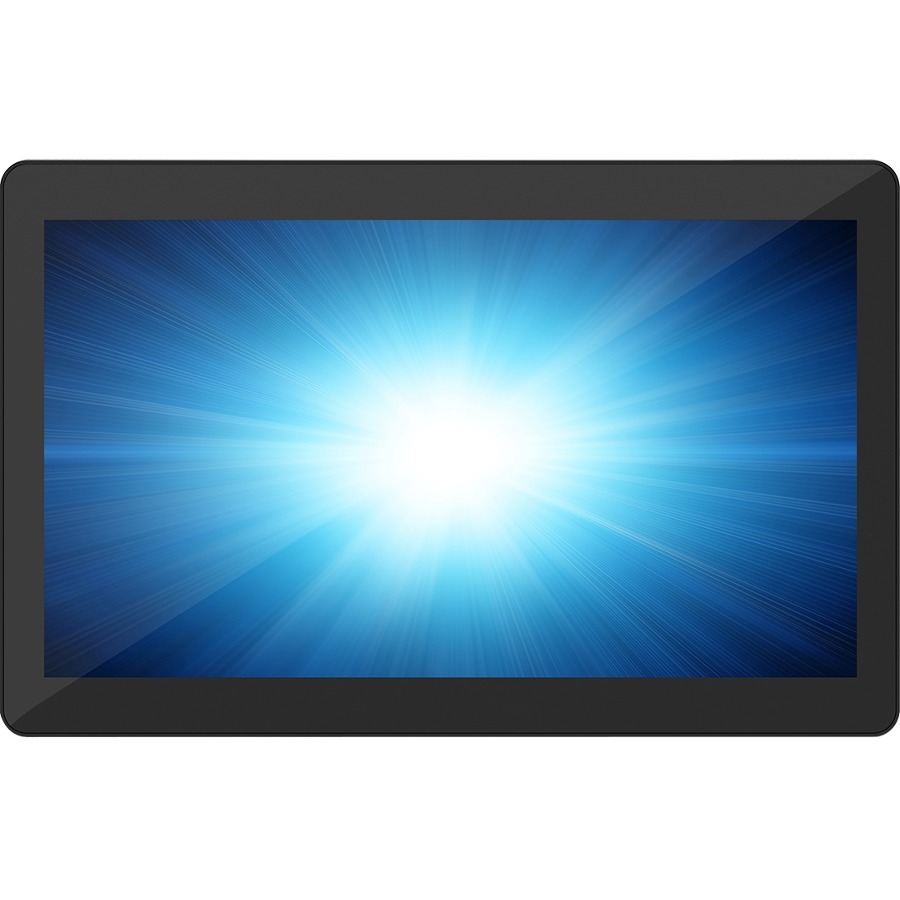

Elo I-Series 2.0 Standard Touchscreen Model Overview
Elo's I-Series 2.0 for Android is an all-in-one touchscreen signage solution that merges robustness with cutting-edge technology. Powered by the Qualcomm® Snapdragon™ processor, it provides twice the processing speed of its predecessor, featuring a vibrant PCAP 10-touch display and Android 7.1 (Nougat). Designed for continuous public use, this device excels in retail, hospitality, and corporate environments, offering flexible mounting options in both portrait and landscape orientations. Streamline your interactive content management with the optional EloView® software, enabling automated deployments and remote updates for seamless operation.
Key Features
- Powerful Performance: Equipped with Qualcomm® Snapdragon™ 2.0GHz octa-core processor for enhanced speed and reliability.
- Integrated Touch Display: 10-touch capable PCAP display for responsive interaction.
- Versatile Sizes: Available in 10", 15", and 22" sizes to suit various needs.
- Cloud Management: Utilize EloView® for simplified software management and content deployment.
- Flexible Installation: Power-over-Ethernet (POE) and virtual GPS options for tailored content delivery.
Specifications
- Operating System: Android 7.1 with EloView
- Processor: Qualcomm® Snapdragon™ APQ8053, 2.0GHz octa-core
- Memory: Standard 3GB DDR3L; Value 2GB DDR3L
- Storage: Standard 32GB eMMC; Value 16GB eMMC
- I/O Ports: Micro HDMI, USB 3.0, Micro SD, Ethernet, GPIO
- Wireless: 802.11 b/g/n/ac + Bluetooth 4.1
- Display Technology: Full HD 1920 x 1080 @ 60Hz
- Brightness: 400 nits (standard) / 250 nits (value)
- Warranty: 2 years with on-site exchange (U.S. only)

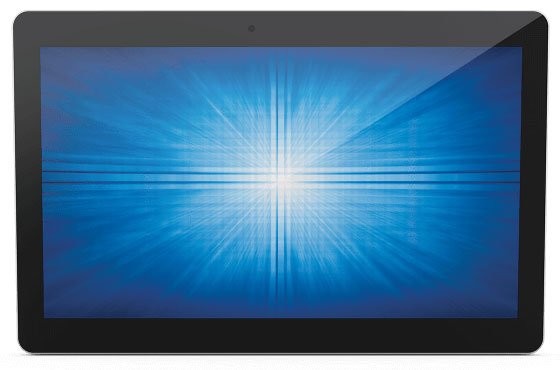

I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform-all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Fully Integrated
DisplayAvailable in 15-inch and 22-inch screen sizes
OSWindows 10 or No OS (for use with Linux)
Processor8th generation Intel processor
Memory/StorageUp to 8GB of RAM and 128GB SSD
NetworkWi-Fi 802.11 b/g/n/ac supporting 2.4Ghz & 5Ghz bands, ethernet & BLE5.0
Configure with Elo Edge Connect™
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare?
EloCare is service and support from the people who know your Elo products best. From customer care, technical support and extended warranties to onsite, advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
