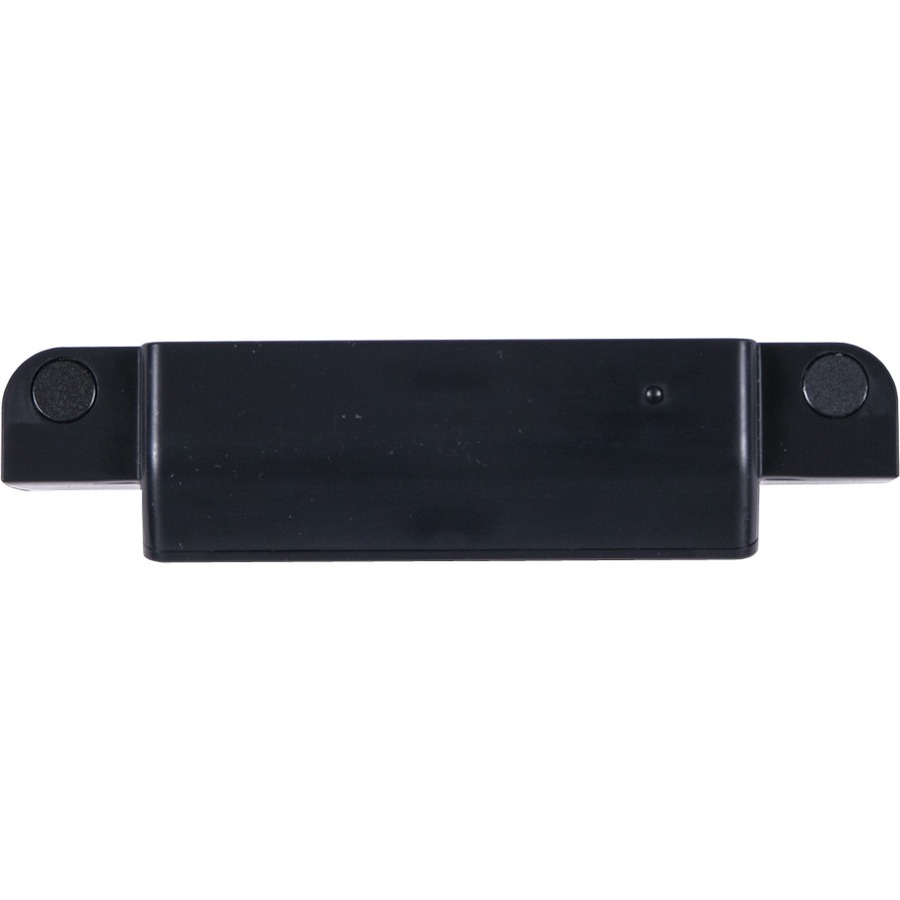

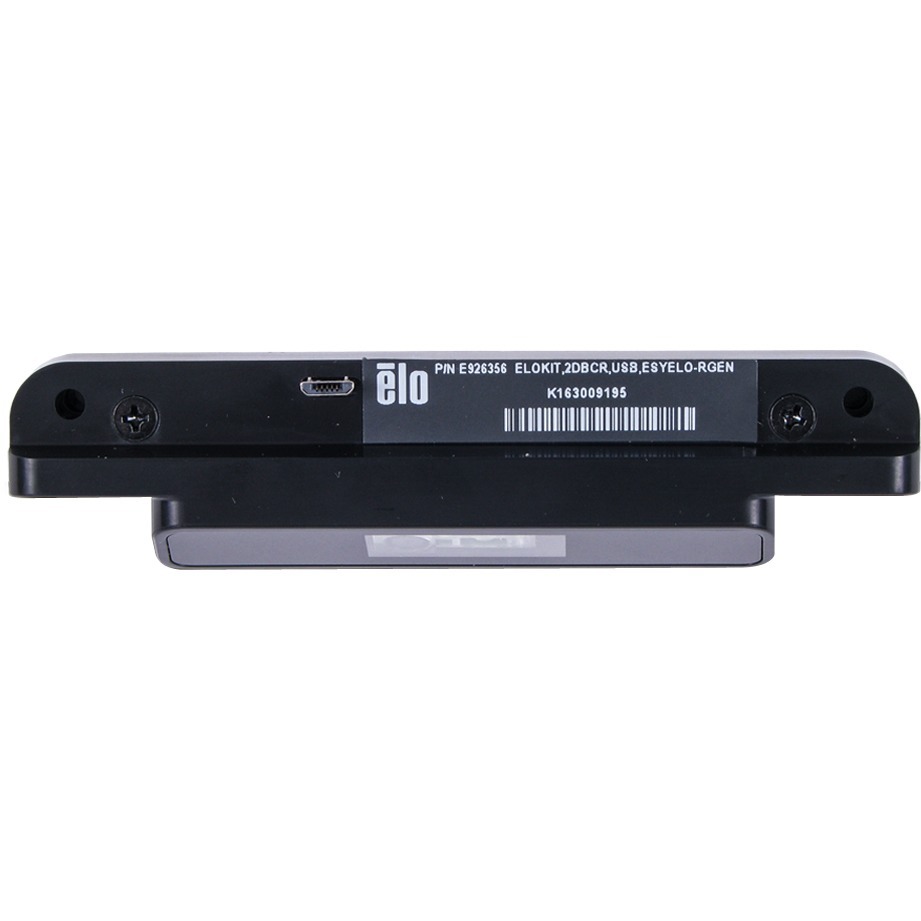

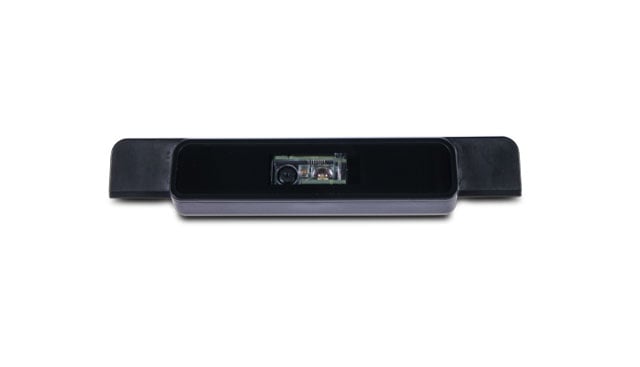

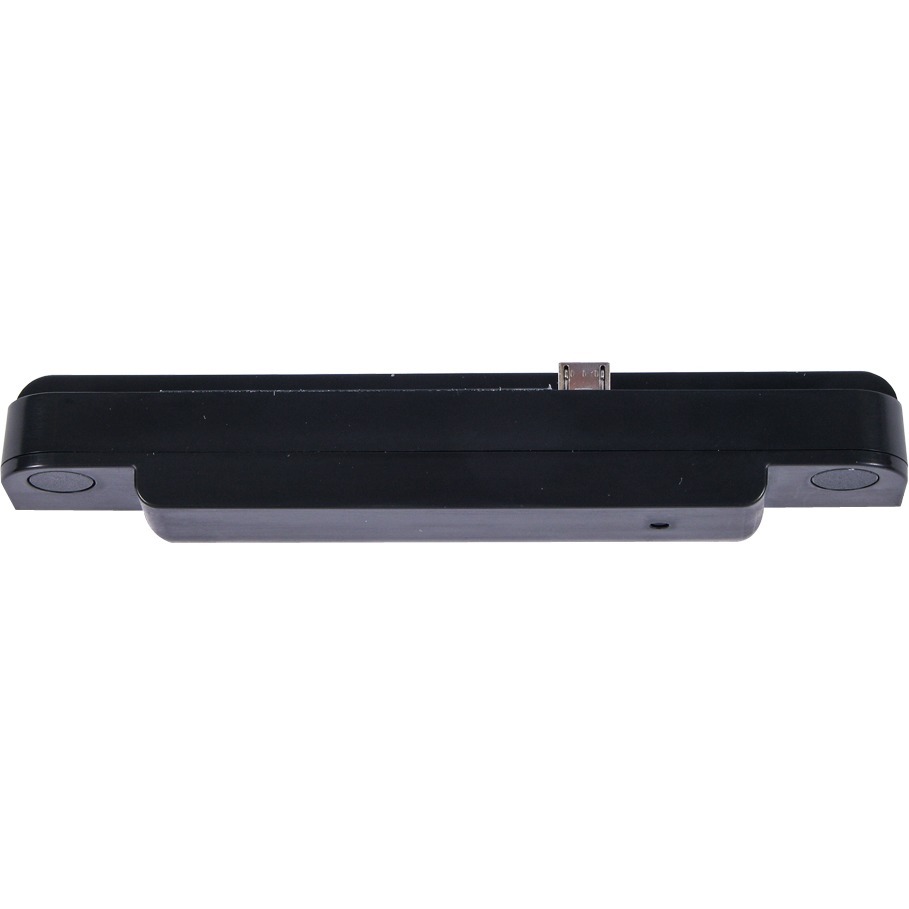

Elo E926356 Barcode Scanner

A newer version of this item is available.
It is replaced by the Elo E384627 Barcode Scanner.

Elo EloPOS System, 17-Inch (5:4) - 2D Barcode Scanner for I-Series (Android and Windows), X-Series

Scanner Capability

Creates a high ROI because of diminishment in workforce and descend inventory errors
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Features CMOS image sensor
Features Plug-in Card connectivity

Need a different version? See all Elo I-Series for Windows 15 Inch AiO Accessories

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Detailed Specs

Technical Information

Connectivity Technology:

Plug-in Card

Scanning Capability:

Barcode Symbology Supported:

1D Linear:

Codabar
Code 11
Code 128
Code 2 of 5
Code 39
Code 93 and 93i
EAN/JAN-13
EAN/JAN 8
IATA Code 2 of 5
Interleaved 2 of 5
Matrix 2 of 5
MSI
GS1 Databar
UPC-A
UPC E
UPC-A/EAN-13 with Extended coupon Code
Coupon GS1 Code 32(PARAF)
EAN-UCC Emulation
GS1 Data bar

2D Stacked:

Codablock A
Codablock F
PDF417
MicroPDF417

2D Matrix:

Aztec Code
Data Matrix
MaxiCode
QR Code
Chinese Sensible(Han Xin) code

Postal Codes:

Australian Post
British Post
Canadian Post
China Post
Japanese Post
Korea Post
Netherlands Post
Planet Code
Postnet

Image Sensor Type:

CMOS

Scanning Distance:

498.69 ft

Field of View (Horizontal):

38°

Field of View (Vertical):

29°

Maximum Ambient Light:

100000 lux

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Form Factor:

Modular

Product Color:

Black

Weight (Approximate):

0.96 oz

Miscellaneous

Country of Origin:

Switzerland

Item Numbers

GTIN: 0123649755015, 0991428827853

UPC: 123649755015, 991428827853

EAN: 0123649755015, 0991428827853

UNSPSC: 43211701

Reviews

Q&A

Get help from a Barcoding Expert!

The Elo E926356 Barcode Scanner is also known as ELO-E926356 or E926356.
