Barcodes,Inc.

Elo E485927 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review
Elo 2244L - PCAP, VGA/DVI, USB, LED BCKLGHT, Multi-Touch

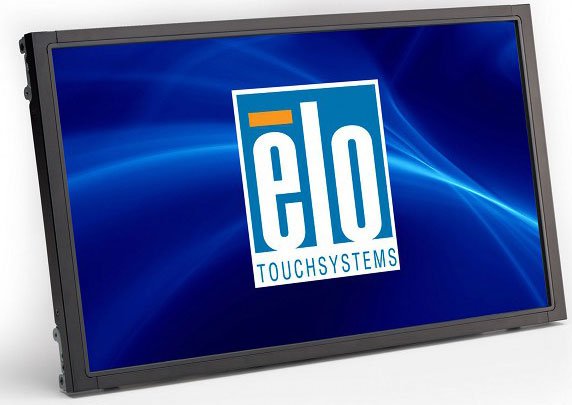

The Elo TouchSystems 2244L open-frame LCD touchmonitor

The slim design, narrow outside dimensions and wide viewing angle panel gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2244L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2244L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Backlight Technology: LED
  • Display Orientation: Landscape/Portrait
  • Screen Mode: Full HD
  • Screen Size: 21.5"
  • Aspect Ratio: 16:9
  • Response Time: 14 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2244L
  • Product Name: 2244L 22-Inch Open-Frame Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 11.7"
  • Width: 20.2"
  • Depth: 1.7"
  • Color: Black
  • Weight (Approximate): 10.58 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Video

  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Capacitive

Power Description

  • Operating Power Consumption: 39 W
  • Standby Power Consumption: 1.50 W
  • Off-Mode Power Consumption: 1 W

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Elo 2244L Touchscreen
Elo Accessories (E005277)
Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L.
In Stock: Ships Same Day
$28.90
+ Add to Quote
Elo 1928L (E450339)
Power cable for 1928L power brick
In Stock: Ships Same Day
$20.50
+ Add to Quote
Elo Service Contracts - 2 year (E794114)
Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships in 3-5 Days
$185.00
+ Add to Quote
Elo 15D2 (E145919)
Magnetic stripe reader (3-track) for the 15D1 and 17D2 Touchcomputers
Ships in 3-5 Days
$58.00
+ Add to Quote
Elo Accessories (E114692)
Power supply Brick (12V DC) for the 17A2
In Stock: Ships Same Day
$66.00
+ Add to Quote
Protect Your Product

The Elo E485927 is also known as Elo Touch Systems ELO-E485927 .
