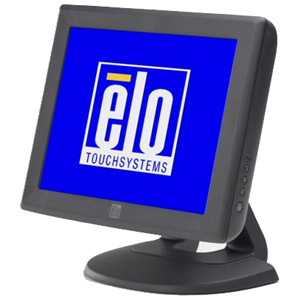

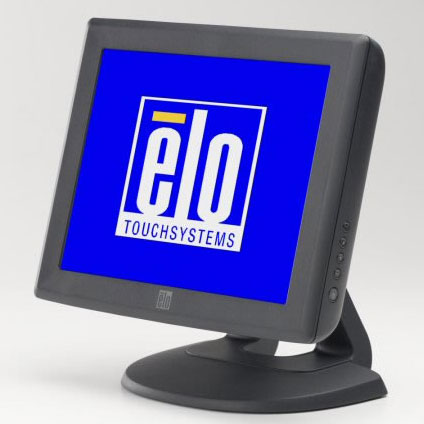

Elo E432532 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review
Elo 1215L - 12" LCD Desktop Monitor, Dual Serial/USB Interfaces, AccuTouch (resistive), Color: Dark Gray
Share:
12" Flat Panel Touch Monitor in Dark gray

The 1000 Series of touchmonitors are designed, developed and built to provide the most cost-effective touch solutions. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation. The economical and space-saving 1215L features a choice of touch technologies and spill resistant sealing. It is available with AccuTouch five-wire resistive technology activated by fingernails, gloves, credit cards or stylus, IntelliTouch Surface Wave Technology activated by finger only or Surface Capacitive Technology activated by finger only with superior scratch resistance. The 1215L touchscreen comes with a dual serial/USB interface, internal power supply and removable base.

General Information

  • Product Type: LCD Touchscreen Monitor
  • Product Series: 1000
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1215L
  • Product Name: 1000 Series 1215L Touch Screen Monitor

Technical Information

  • Screen Mode: SVGA
  • Mount Type: Desk Mountable
  • Screen Size: 12"
  • Response Time: 35 ms
  • Screen Surface: Anti-glare

Physical Characteristics

  • Height: 11.3"
  • Width: 11.9"
  • Depth: 6.6"
  • Color: Dark Gray
  • Weight (Approximate): 7.92 lb

Interfaces/Ports

  • USB: Yes

Other

  • Package Contents:
    • 1000 Series 1215L Touchscreen LCD Monitor
    • North American power cable
    • European power cable
    • Detachable touch cable
    • Detachable video cable
    • 1000 Series 1215L Touchscreen LCD Monitor
    • North American power cable
    • European power cable
    • Detachable touch cable
    • Detachable video cable
  • Platform Supported: PC
  • Additional Information:
    • Removable base
    • Controls on the side rather than the front

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 164 Nit
  • Color Supported: 16.7 Million Colors (24-bit)
  • Maximum Resolution: 800 x 600
  • Contrast Ratio: 500:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Power Description

  • Input Voltage: 265 V AC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)
