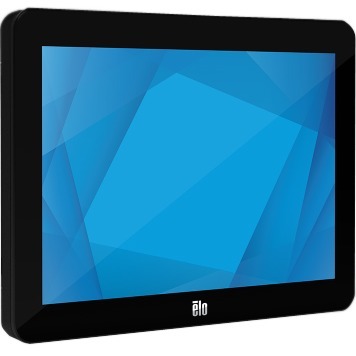

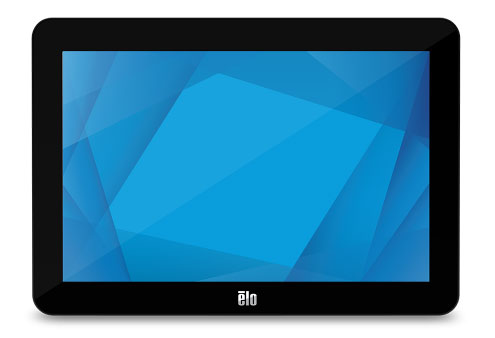

Elo E155834 Touchscreen

Elo 1002L - 10.1" Touchscreen Monitor, Elo 1002L, Desktop LCD, 16: 10 Aspect Ratio, Projected Capacitive 10-Touch, 1280 x 800, 262000 Colors, 315 nits Brightness (typical), 800: 1 Contrast Ratio (typical), USB-C, HDMI & VGA Inputs Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year, Requires Display Mount Kit (E835969). Worldwide.
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 350 Nit - LCD Panel brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$417.00
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

The Elo 1002L 10.1-inch touchscreen monitor delivers a professional-grade interactive solution featuring Elo's industry-leading TouchPro PCAP technology with edge-to-edge glass and enabling up to 10 simultaneous touches. With a compact form factor, clean design aesthetic and flexible mounting options, the 1002L is well-suited for POS, self-service, signage, and customer-facing point of interaction. Designed for commercial use, the Elo 1002L simplifies business operations by delivering energy efficiency and versatile accessory options - from EMV and MSR payment devices to a barcode scanner and customer facing display. With a variety of peripherals, Elo's 1002L monitor can be transformed to meet the demands of almost any blueprint. Backed by a three-year warranty, the feature rich monitor is equipped with dual built-in speakers and USB Type C, VGA and HDMI video connectors. The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. Offering dual functionality, use the Elo 1002L as a traditional POS terminal or customer facing display - or BOTH!
Elo E155834 Overview

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Protect Your Product
Elo Service Contracts (E898648)
Service Contracts, ELO, Elo Touch Monitor 3 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor
Global Supply Chain Constraints; Order now to be first when stock is available
$43.35
+ Add to Quote
Elo Service Contracts (E895125)
Service Contracts, ELO, 5 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor, Touch Monitor and Small Format Open Frame
Global Supply Chain Constraints; Order now to be first when stock is available
$107.10
+ Add to Quote

Full specifications (PDF)

Technical Information
Screen Size Class:
10"
Viewable Screen Size:
10.1"
Screen Mode:
WXGA
Response Time:
29 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
170°
Mount Type:
Rear Mount
Backlight Technology:
LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
Horizontal Frequency:
31.50 kHz to 80 kHz
Vertical Frequency:
60 Hz
Video
Maximum Resolution:
1280 x 800
Color Supported:
262,000 Colors
Native Contrast Ratio:
800:1
Brightness:
  • 350 Nit - LCD Panel
  • 315 Nit - PCAP
  • 200 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
USB Type-C:
Yes
Number of USB Ports:
4
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Operating Power Consumption:
7.43 W
Physical Characteristics

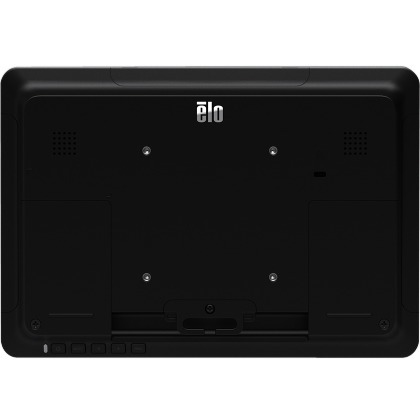

VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
Black
Height:
7"
Width:
10"
Depth:
1.1"
Weight (Approximate):
1.95 lb
Miscellaneous
Package Contents:
  • 1002L Touchscreen Monitor
  • HDMI cable
  • USB Cable (USB Type-A to Type-C)
  • Quick Install Guide
  • EEI Label
  • Power brick
  • NA Power cable
  • EU Power cable
  • 2 x Cable clamps
  • 2 x Tie wraps
  • 3 x Screws (M3x8mm) for cable clamps
  • 2 x Screws (M3x10mm) for cable doors
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
  • REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173124582
UPC: 843173124582
EAN: 0843173124582
UNSPSC: 43211903
