Elo E329262 Touchscreen

Part Number: E329262
Model: 2794L
$962.16
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
27"
Viewable Screen Size
27"
Screen Mode
Full HD
Response Time
12 ms

Product Description:

  Touchscreens, Elo 2794L, 27" Wide Full HD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port Video Interface, IntelliTouch, USB & RS-232 Touch Controller Interface, Worldwide, Clear, No Power Brick

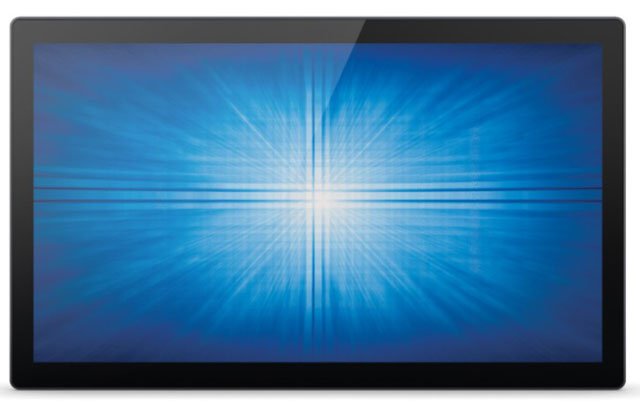

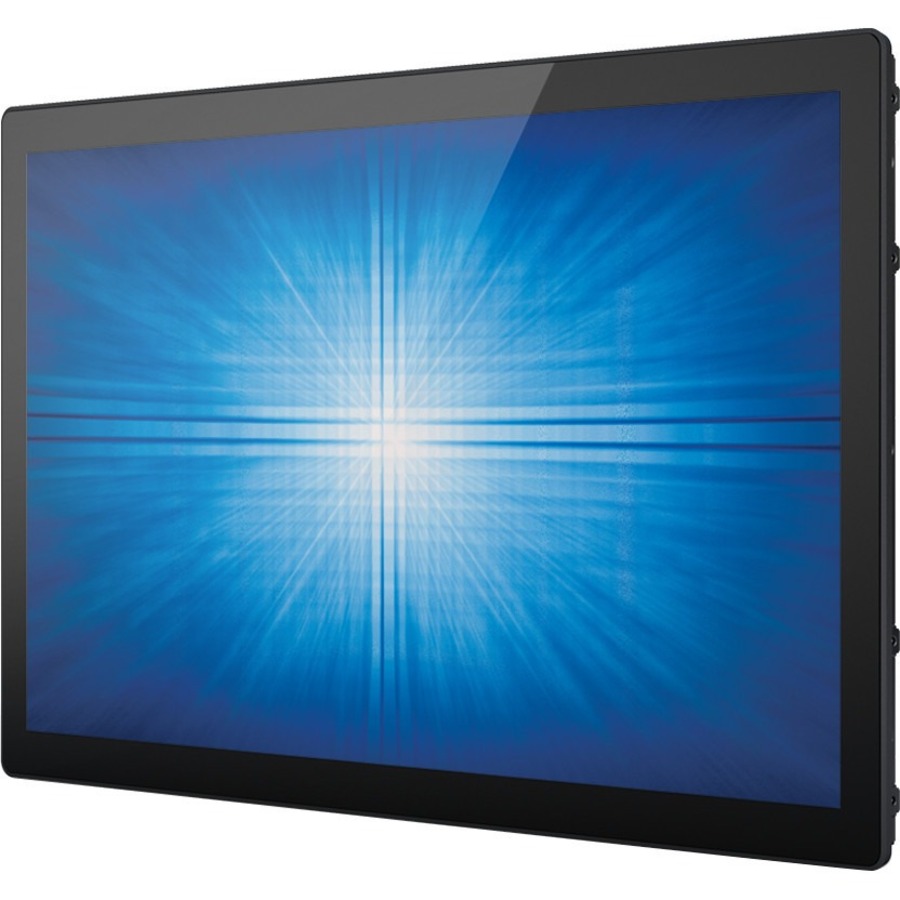

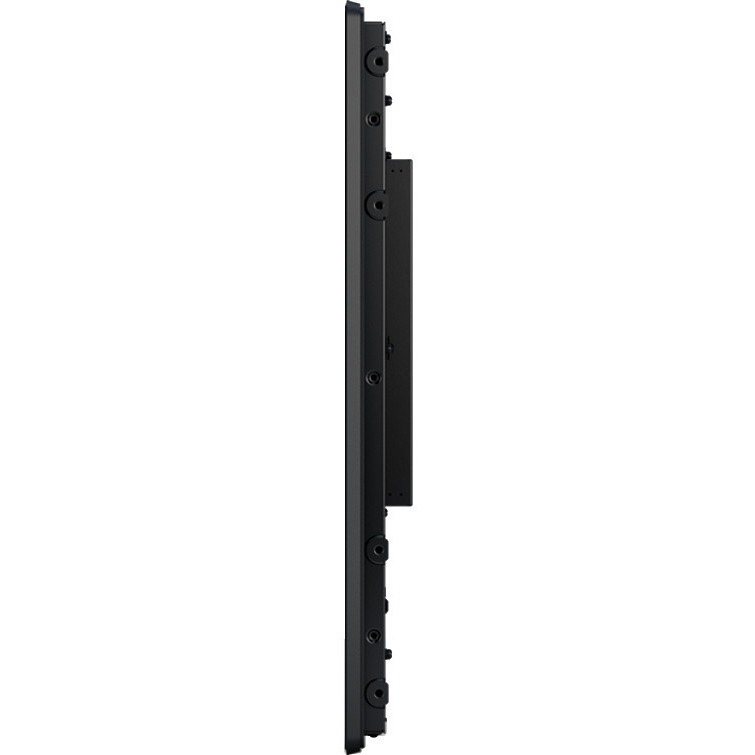

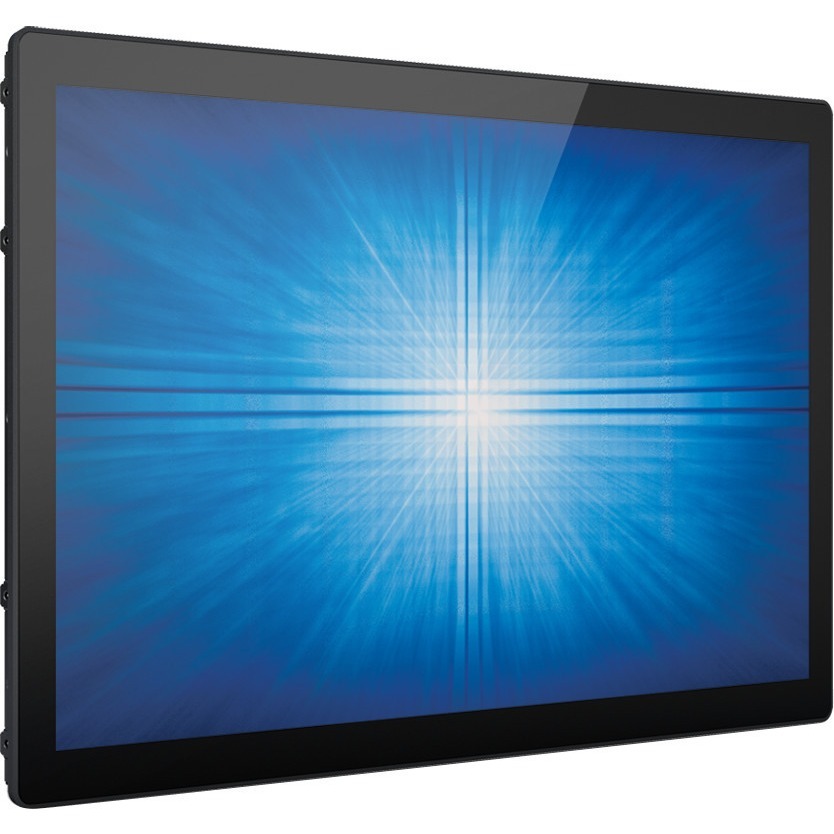

Elo 2794L Touchscreen Model Overview

The Elo 2794L 27-inch Open-Frame Touch Display combines sleek design with superior performance, making it ideal for a range of applications including retail self-service, kiosks, and industrial automation. Its pure-glass touchscreen provides exceptional image clarity and a reliable, touch-responsive experience. Engineered for durability with IP-rated sealing against dust and liquids, this display ensures longevity and reliability, supported by a standard three-year warranty. Experience vibrant visuals and a stable operation with the versatile touch technology options available.

Key features:
  • 27-inch high-definition LCD display with a resolution of 1920x1080 for stunning visuals.
  • Multiple touch technology options, including IntelliTouch® Plus and PCAP 2GS for fluid interaction.
  • 178° wide viewing angle ensures exceptional image visibility from different perspectives.
  • Dirt, dust, and liquid resistance simplifies integration into various environments.
  • Energy-efficient LED backlight reduces power consumption and generates less heat.


Specifications:
  • Model: 2794L
  • Color: Black
  • Active Display Area: 597.6 x 336.15 mm / 23.53 x 13.23 inches
  • Dimensions: Bezel: 633.2 x 374.4 x 41.8 mm / Zero-Bezel: 644.2 x 388.4 x 39.6 mm
  • Brightness: 300 nits (LCD panel); 270 nits (iTouch & IntelliTouch)
  • Power Consumption: ON: 30W; SLEEP: 1.5W; OFF: 0.5W
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Mounting Options: VESA 200x100mm; front and flush mount options available
  • Warranty: 3 years standard
  • Agency Approvals: UL, FCC, CE, TUV, among others
Elo E329262 Touchscreen Overview
The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • High definition LCD display offers ultimate HD interactivity, clarity and resolution
  • 10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities
Technical Information
Screen Size Class:
27"
Viewable Screen Size:
27"
Screen Mode:
Full HD
Response Time:
12 ms
Aspect Ratio:
16:9
Mount Type:
Front Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
3,000:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
27 W
Physical Characteristics
VESA Mount Compatible:
Yes
Color Family:
Black
Product Color:
Black
Height:
14.7"
Width:
24.9"
Depth:
1.7"
Weight (Approximate):
16.10 lb
Miscellaneous
Package Contents:
  • 2794L 27" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards:
  • TÜV
  • Country of Origin:
    China
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0815335025914, 0818213929991, 0818214893505
    UPC: 815335025914, 818213929991, 818214893505
    EAN: 0815335025914, 0818213929991, 0818214893505
    UNSPSC: 43211903

    Recommended Accessories

    Category

    • Data Networking Device Accessories (1)
    • Digital Signage Display Accessories (1)
    • Elo Touchscreen (1)
    • Mounting Hardware and Stands (1)
    • Service Contract (2)
    • Touchscreen Accessories (24)

    Recommended Accessories for Model: Elo E329262 Touchscreen

    Top Data Networking Device Accessories Purchased With Elo E329262

    • Elo E239980 Accessory
      Elo E239980 Accessory
      Power Systems & Supplies, ELO, ELO-Kit Power Converter 24VDC to 12VDC
      Item on backorder — chat for lead time
      $73.69
      Add to Quote

    Top Digital Signage Display Accessories Purchased With Elo E329262

    Top Elo Touchscreen Purchased With Elo E329262

    Top Mounting Hardware and Stands Purchased With Elo E329262

    Top Service Contract Purchased With Elo E329262

    • Elo E895125 Service Contract
      Elo E895125 Service Contract
      Service Contracts, ELO, 5 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor, Touch Monitor and Small Format Open Frame
      In Stock
      $139.00
      Add to Quote
    • Elo E898648 Service Contract
      Elo E898648 Service Contract
      Service Contracts, ELO, Elo Touch Monitor 3 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor
      In Stock
      $61.00
      Add to Quote

    Top Touchscreen Accessories Purchased With Elo E329262

    See All Touchscreen Accessories for Elo E329262 Touchscreen >

    Frequently Asked Questions

    The Elo 2794L is purpose-built for kiosks, casino and amusement venues, retail self-service stations, and industrial floor automation. Its wide viewing angle panel and drift-free touch response make it ideal for high-traffic environments where user attention and accuracy are critical.

    We offer the Elo 2794L with HDMI, VGA, and Display Port video interface options, giving you flexibility to integrate with a wide range of host systems and displays. This multi-interface design simplifies installation across different environments.

    The Elo 2794L delivers stable, drift-free operation with proven Elo expertise and reliability built in. Its IntelliTouch controller technology ensures accurate touch responses and vivid image clarity, even in demanding applications requiring consistent precision.

    The touchscreen is sealed against dirt, dust, and liquids, which simplifies integration into final enclosures and protects against environmental contamination. This sealed design makes it well-suited for industrial and high-traffic retail settings.

    The Elo 2794L features both USB and RS-232 touch controller interfaces, allowing you to connect to modern and legacy systems. This dual-interface approach ensures compatibility with a wide range of host devices and control systems.

    The Elo 2794L uses a state-of-the-art energy-saving LED backlight that consumes less electricity and generates less heat than conventional backlights. This efficiency benefit reduces operating costs and simplifies thermal management in your installation, while maintaining brilliant image quality with a wide viewing angle panel.

    The Elo E329262 Touchscreen is also known as ELO-E329262 or E329262.
