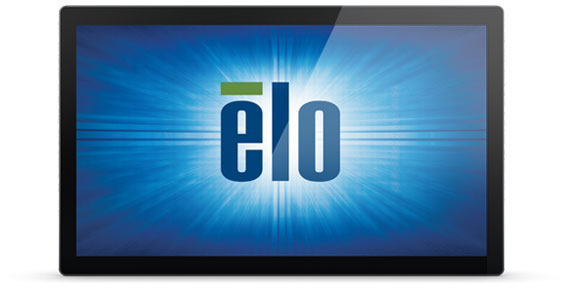

Elo 2794L Touchscreen

Elo 2794L  -  The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 2794L 27-inch open-frame touch display features a thin and compact state-of-the-art design, with energy-saving and low-heat LED panels. Available with IntelliTouch (SAW) or TouchPro (PCAP) touch technologies, the 2794L offers the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail. Featuring a brilliant wide viewing angle panel, Elo's open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for integrating in any table, kiosk, or cabinet design. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Add to Quote
Starting at:
$962.16
Item on backorder — chat for lead time

Subscribe & Save Eligible

Elo 2794L Touchscreen Options

  • Elo E329262 Touchscreen

    Elo E329262 Touchscreen

    Touchscreens, Elo 2794L, 27" Wide Full HD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port Video Interface, IntelliTouch, USB & RS-232 Touch Controller Interface, Worldwide, Clear, No Power Brick
    Item on backorder — chat for lead time
    $962.16
    Add to Quote
  • Elo E493591 Touchscreen

    Elo E493591 Touchscreen

    27" Touchscreen Monitor, Elo 2794L, Open-Frame LCD WVA, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080, 16.7 million Colors, 270 nits Brightness (typical), LED Backlight, 3000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Clear, Zero-Bezel, Flush Mount, Black, 3-Year Warranty, No Power Brick, Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, Flush Mount Brackets w/ Screws (Part# E190896), EEI Label, Japan Class-B TM Info Sheet.
    Item on backorder — chat for lead time
    $978.87
    Add to Quote
  • Elo E329077 Touchscreen

    Elo E329077 Touchscreen

    Touchscreens, Elo 2794L, 27" Wide Full HD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port Video Interface, IntelliTouch Plus Dual Touch, USB Touch Controller Interface, Worldwide, Clear, No Power Brick
    Item on backorder — chat for lead time
    $1,036.69
    Add to Quote
  • Elo E331401 Touchscreen

    Elo E331401 Touchscreen

    Elo 2794L 27" Open-frame LCD Touchscreen Monitor - 16:9 - 12 ms - 27" Class - Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 3,000:1 - 300 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year
    Item on backorder — chat for lead time
  • Elo E707022 Touchscreen

    Elo E707022 Touchscreen

    Elo 2794L 27" Open-frame LCD Touchscreen Monitor - 16:9 - 12 ms - 27" Class - TouchPro Projected Capacitive - 1920 x 1080 - Full HD - 16.7 Million Colors - 300 Nit, 270 Nit - LCD Panel, TouchPro PCAP - LED Backlight - HDMI - USB - VGA - DisplayPort - Black
    Item on backorder — chat for lead time
  • Elo E186635 Touchscreen

    Elo E186635 Touchscreen

    27-inch wide FHD LCD WVA (LED Backlight), Open Frame, VGA & Display Port video interface, Projected Capacitive 10 Touch, USB touch controller interface, Worldwide-version, Clear, No power brick
    Item on backorder — chat for lead time
  • Elo E187031 Touchscreen

    Elo E187031 Touchscreen

    27-inch wide FHD LCD WVA (LED Backlight), Open Frame, VGA & Display Port video interface, IntelliTouch Plus Dual Touch, USB touch controller interface, Worldwide-version, Clear, No power brick
    Item on backorder — chat for lead time

Frequently Asked Questions

The Elo 2794L is available with multiple touch technology options, including IntelliTouch® Plus and PCAP 2GS, both designed for fluid and reliable interaction. These technologies provide stable, drift-free operation for accurate touch responses in demanding commercial environments. Contact us today to select the touch technology that best fits your application requirements.

Yes, the Elo 2794L is engineered for durability with IP-rated sealing against dust and liquids, making it well-suited for integration into various challenging environments. This protection simplifies deployment in retail, industrial, and outdoor-facing kiosk applications where exposure to moisture and particulates is a concern. We offer this model as a reliable solution for environments requiring environmental resistance.

The Elo 2794L features a 27-inch high-definition LCD display with a resolution of 1920x1080 pixels and a 178° wide viewing angle for exceptional image visibility from multiple perspectives. The active display area measures 597.6 x 336.15 mm (23.53 x 13.23 inches), delivering stunning visuals with excellent light transmission. Available from us with brightness levels of 300 nits (LCD panel) or 270 nits (with IntelliTouch or iTouch technologies).

The Elo 2794L supports VESA 200x100mm mounting with front and flush mount options available, and can be mounted in landscape, portrait, and face-up orientations. This flexibility allows optimal integration into tables, kiosks, and cabinet designs for a wide range of commercial applications. Contact us today for guidance on mounting configurations for your specific deployment.

The Elo 2794L includes a standard three-year warranty, providing reliable coverage for your investment. Power consumption is energy-efficient at 30W during operation, 1.5W in sleep mode, and 0.5W when powered off, helping reduce operational costs and heat generation in your environment.

The Elo 2794L is ideal for retail self-service kiosks, gaming applications, industrial automation, and healthcare environments where reliable touchscreen performance is critical. Its open-frame design, durability, and versatile touch technology options make it cost-effective for OEMs and systems integrators requiring a dependable solution. Visit barcodesinc.com to explore how we can support your commercial kiosk deployment.

Elo 2794L Touchscreen Model Overview

The Elo 2794L 27-inch Open-Frame Touch Display combines sleek design with superior performance, making it ideal for a range of applications including retail self-service, kiosks, and industrial automation. Its pure-glass touchscreen provides exceptional image clarity and a reliable, touch-responsive experience. Engineered for durability with IP-rated sealing against dust and liquids, this display ensures longevity and reliability, supported by a standard three-year warranty. Experience vibrant visuals and a stable operation with the versatile touch technology options available.

Key features:
  • 27-inch high-definition LCD display with a resolution of 1920x1080 for stunning visuals.
  • Multiple touch technology options, including IntelliTouch® Plus and PCAP 2GS for fluid interaction.
  • 178° wide viewing angle ensures exceptional image visibility from different perspectives.
  • Dirt, dust, and liquid resistance simplifies integration into various environments.
  • Energy-efficient LED backlight reduces power consumption and generates less heat.


Specifications:
  • Model: 2794L
  • Color: Black
  • Active Display Area: 597.6 x 336.15 mm / 23.53 x 13.23 inches
  • Dimensions: Bezel: 633.2 x 374.4 x 41.8 mm / Zero-Bezel: 644.2 x 388.4 x 39.6 mm
  • Brightness: 300 nits (LCD panel); 270 nits (iTouch & IntelliTouch)
  • Power Consumption: ON: 30W; SLEEP: 1.5W; OFF: 0.5W
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Mounting Options: VESA 200x100mm; front and flush mount options available
  • Warranty: 3 years standard
  • Agency Approvals: UL, FCC, CE, TUV, among others
