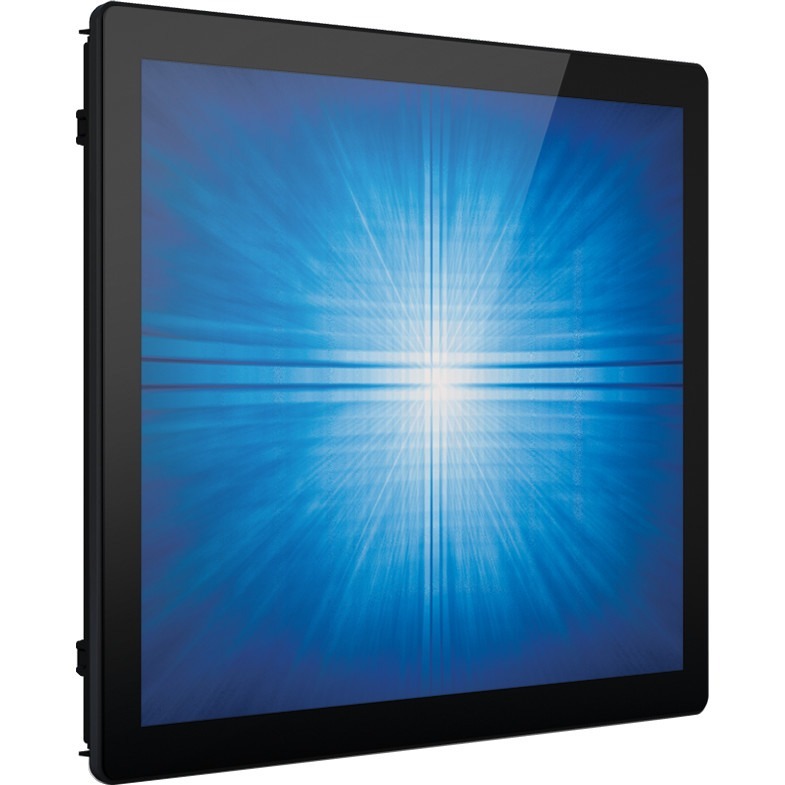

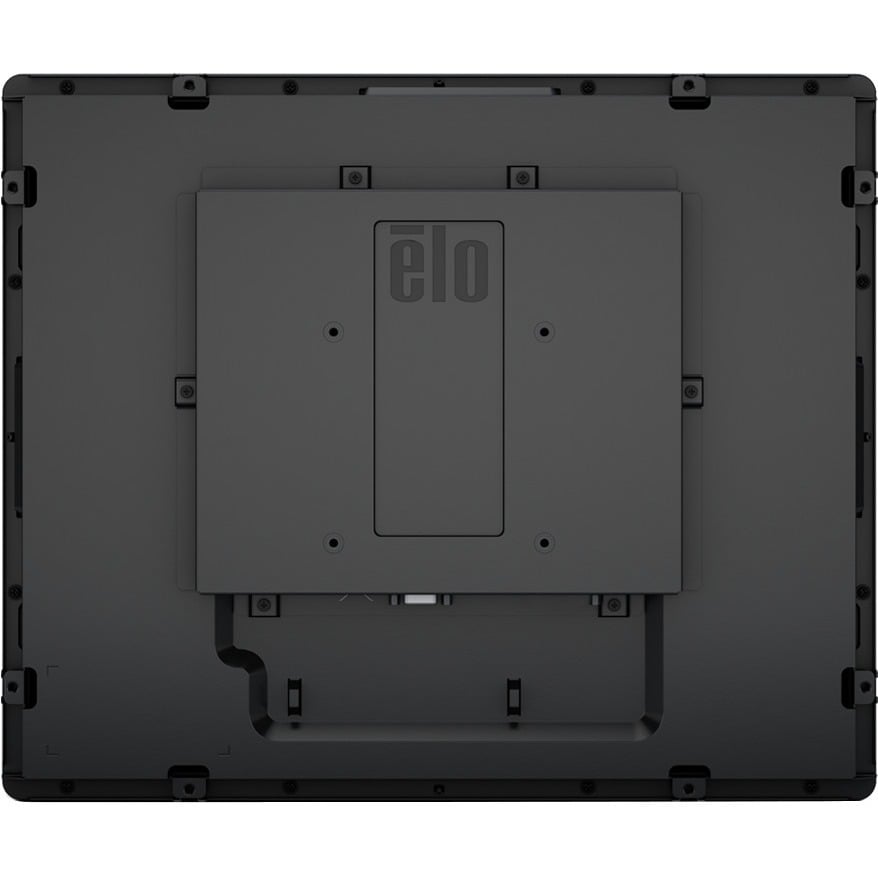

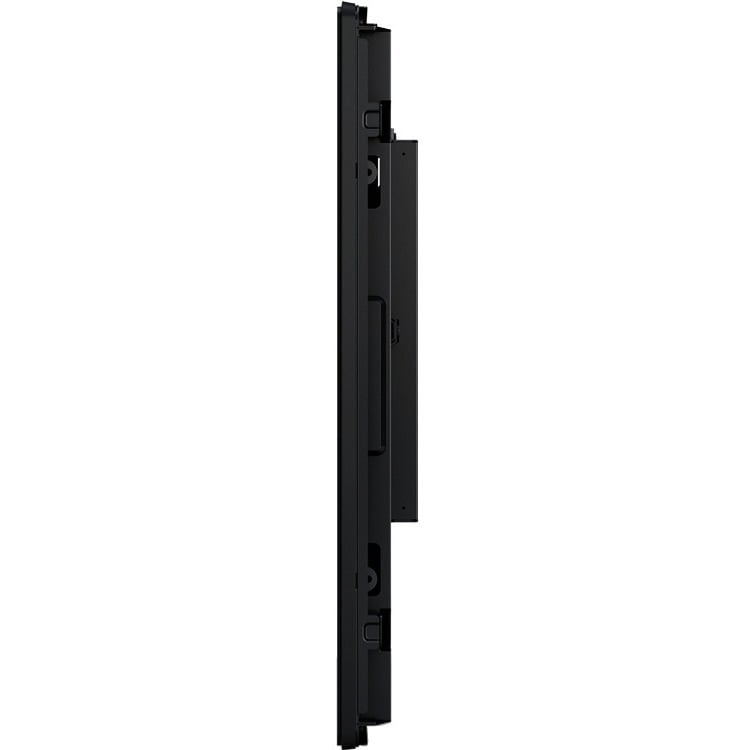

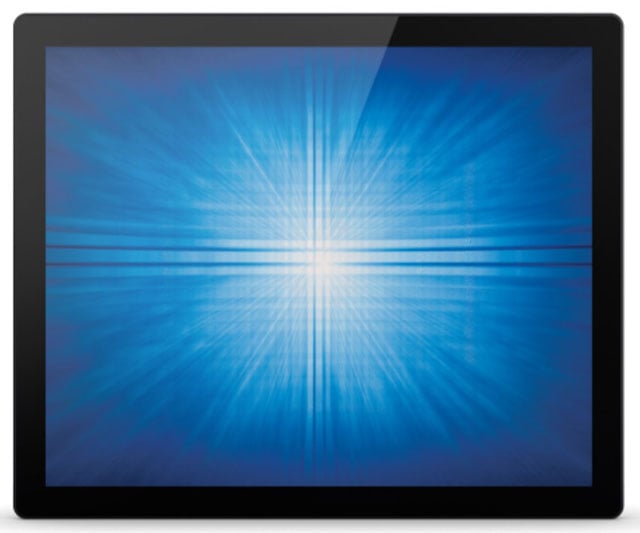

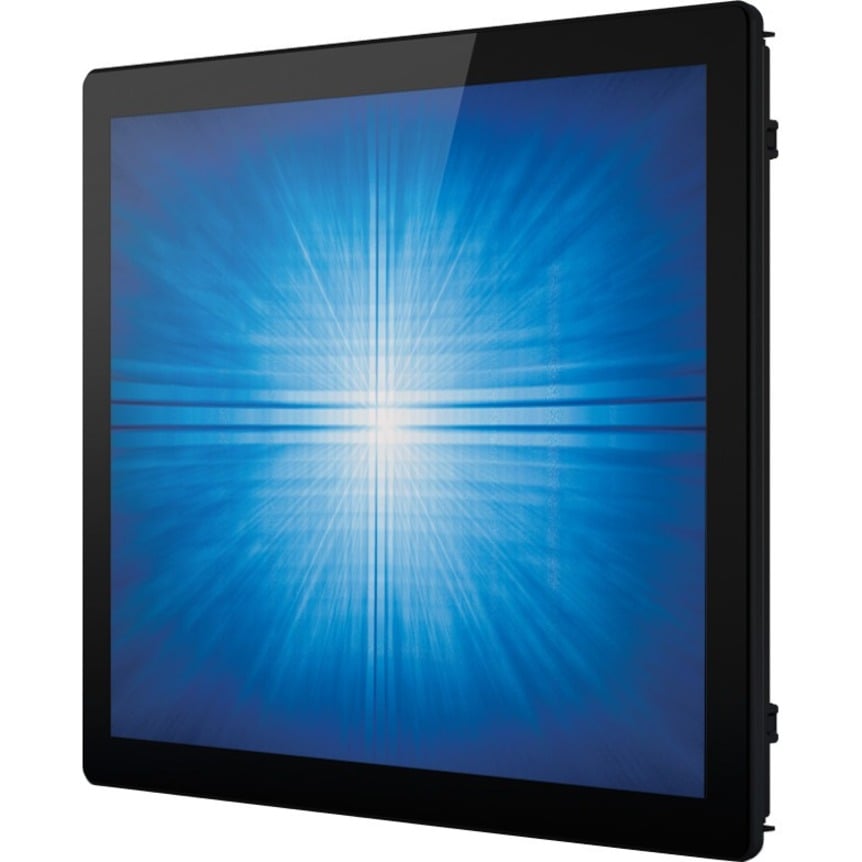

The Elo 1991L 19-inch Open-Frame Touch Display combines cutting-edge technology with user-friendly design, making it ideal for various applications from kiosks to industrial automation. Its energy-saving LED backlight not only reduces electricity consumption but also minimizes heat generation, ensuring longer life and reliable performance. With a wide viewing angle and a sealed touchscreen, the 1991L delivers vibrant visuals and accurate touch responsiveness, making it a perfect choice for interactive installations in retail and amusement environments. Key features:
Choice of Elo touch technology: Options include IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, and Projected Capacitive.
Viewing angle: 178° (h) x 178° (v) for brilliant color reproduction.
Sealed touchscreen: Protects against dirt, dust, and liquids.
Multi-touch capability: PCAP 2GS support for a seamless experience with up to 10 touch points.
Connectivity: Includes DisplayPort and VGA interfaces.
Specifications:
Model: 1991L
Color: Black
Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
Diagonal: 19"
Native Resolution: 1280 x 1024 at 60Hz
Brightness: Up to 250 nits
Response Time: 14ms
Contrast Ratio: 1000:1
Power Consumption: 16W (ON), 1.5W (SLEEP), 0.5W (OFF)
Operating Temperature: 0 °C to 40 °C
Warranty: 3 years
Weight: Unpackaged: 10.14 lb (4.6 Kg)
Agency Approvals: UL, FCC, CE, and more
Elo E328700 Touchscreen Overview
The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
What are the display specifications of the Elo E328700 touchscreen?
The Elo E328700 is a 19-inch open-frame LCD touchscreen with a 1280 x 1024 SXGA resolution, 5:4 aspect ratio, and 225 nits brightness (typical). It features a wide viewing angle WVA panel with 16.7 million colors, 1000:1 contrast ratio (typical), and an anti-glare finish for clear visibility in commercial environments.
What touch technology does the Elo 1991L use?
The Elo E328700 features IntelliTouch single-touch technology with a dual serial/USB touch controller interface. This proven Elo touch solution delivers stable, drift-free operation and accurate touch responses for reliable kiosk and industrial applications.
What video and connectivity options are available on this touchscreen?
The Elo E328700 includes HDMI, VGA, and Display Port video interfaces for flexible integration with various systems. It comes with an HDMI cable, VGA cable, and touch USB cable in the box, along with an RJ45 OSD remote for convenient control.
What are the ideal use cases for the Elo 1991L open-frame touchscreen?
We offer the Elo E328700 for self-service kiosks, casino and amusement applications, retail point-of-sale, gaming, industrial automation, and healthcare environments. Its compact design, energy-efficient LED backlight, and reliable touch performance make it ideal for OEMs and systems integrators building commercial solutions.
Is the Elo E328700 energy-efficient?
Yes, the Elo E328700 features a state-of-the-art, energy-saving LED backlight that uses less electricity to operate and generates less heat compared to traditional backlighting. This efficiency, combined with its slim design and narrow outside dimensions, makes it cost-effective for commercial deployments.
What warranty and compliance certifications does this touchscreen include?
The Elo E328700 comes with a 3-year warranty and meets RoHS, China RoHS, and WEEE compliance standards for worldwide deployment. It is designed for reliable, drift-free operation in demanding commercial and industrial environments.
The Elo E328700 Touchscreen is also known as
ELO-E328700
or E328700.
