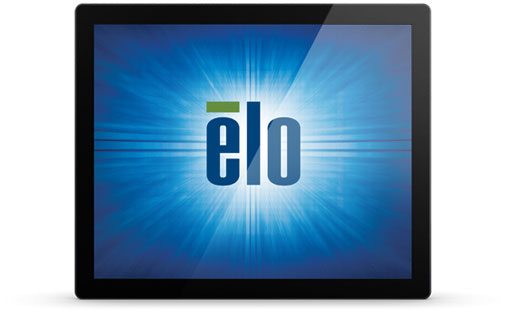

Elo 1991L Open-Frame Touchscreen

19-inch Open-Frame Touchmonitor

Elo 1991L Open-Frame  -  The Elo 1991L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$621.43
In Stock
Elo 1991L Open-Frame Touchscreen
Elo 1991L Open-Frame Touchscreen
Accessories For Elo 1991L Open-Frame Touchscreen

Category

Elo 1991L Open-Frame Touchscreen Options

  • Elo E331019 Touchscreen

    Elo E331019 Touchscreen
    19" Touchscreen Monitor, Elo 1991L, Open-Frame LCD WVA, 5:4 Aspect Ratio, Projected Capacitive 10-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Clear, Zero-Bezel, Flush Mount, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, Flush Mount Brackets w/Screws (Part# E001178), EEI Label, Japan Class-B TM info sheet.
    In Stock
    $621.43
    Add to Quote
  • Elo E296720 Touchscreen

    Elo E296720 Touchscreen
    Elo 1991L 19-inch LCD WVA (LED Backlight) Open Frame HDMI VGA & Display Port video interface Projected Capacitive 10 Touch Bezel USB touch controller interface Clear No power brick
    In Stock
    $759.67
    Add to Quote
  • Elo E326541 Touchscreen

    Elo E326541 Touchscreen
    19" Touchscreen Monitor, Elo 1991L, Open-Frame LCD WVA, 5:4 Aspect Ratio, AccuTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 200 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, Dual Serial/USB Touch Controller Interface, Anti-Glare, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, L (Side Mount) Brackets and w/ Screws (Part# E163604), EEI Label, Japan Class-B TM info sheet.
    In Stock
    $812.94
    Add to Quote
  • Elo E328700 Touchscreen

    Elo E328700 Touchscreen
    19" Touchscreen Monitor, Elo 1991L, Open-Frame LCD WVA, 5:4 Aspect Ratio, IntelliTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, Dual Serial/USB Touch Controller Interface, Anti-Glare, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, (Side Mount) Brackets and w/ Screws (Part# E163604), EEI Label, Japan Class-B TM info sheet.
    Item on backorder — chat for lead time
    Discontinued See Replacement
  • Elo E335119 Touchscreen

    Elo E335119 Touchscreen
    19" Touchscreen Monitor, Elo 1991L, Open-Frame LCD WVA, 5:4 Aspect Ratio, SecureTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 200 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, Dual Serial/USB Touch Controller Interface, Anti-Glare, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, (Side Mount) Brackets and w/ Screws (Part# E163604), EEI Label, Japan Class-B TM info sheet.
    Item on backorder — chat for lead time
    Discontinued See Replacement
  • Elo E179065 Touchscreen

    Elo E179065 Touchscreen
    Elo 1991L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 14 ms - 19" Class - AccuTouch - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - DisplayPort - Black
    Item on backorder — chat for lead time
    Discontinued See Replacement
  • Elo E197438 Touchscreen

    Elo E197438 Touchscreen
    Elo 1991L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 14 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - DisplayPort - Black
    Item on backorder — chat for lead time
    Discontinued See Replacement

Frequently Asked Questions

The Elo 1991L offers multiple touch technology choices to suit your application needs: IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, and Projected Capacitive. We offer all of these configurations, allowing you to select the technology that best matches your kiosk, retail, or industrial automation environment. Contact us today to discuss which option is ideal for your deployment.

Yes, the Elo 1991L features a sealed touchscreen that protects against dirt, dust, and liquids, making it well-suited for challenging environments. This sealed design ensures reliable performance in retail, amusement, and industrial automation settings where exposure to contaminants is a concern. Visit barcodesinc.com or contact us today for more details on environmental suitability for your specific application.

The Elo 1991L includes both DisplayPort and VGA interfaces, providing flexible connectivity options for integration into your existing systems. These dual connectivity standards ensure compatibility with a wide range of host computers and control systems used in kiosks and industrial automation. Contact us today if you need guidance on integration with your specific infrastructure.

The Elo 1991L delivers a wide viewing angle of 178° horizontally and 178° vertically, ensuring brilliant color reproduction and clear visibility from multiple positions. This expansive viewing angle makes it ideal for interactive kiosk installations and retail self-service applications where customers approach from various angles. We offer this display with the quality and support you need for demanding commercial environments.

Yes, the Elo 1991L supports Projected Capacitive (PCAP) 2GS multi-touch technology with up to 10 simultaneous touch points, enabling seamless multi-user interaction. This capability is particularly valuable for gaming, amusement, and interactive retail applications where responsive, intuitive touch control is essential. Available from us with full technical support—contact us today for specifications on your preferred touch technology.

The Elo 1991L is highly energy-efficient, consuming just 16W during normal operation, 1.5W in sleep mode, and 0.5W when powered off. Its energy-saving LED backlight reduces electricity costs and heat generation, extending display life and lowering operational expenses—a key advantage for high-volume kiosk and industrial deployments. We offer this cost-effective solution with a 3-year warranty backing your investment.

Full specifications (PDF)

Elo 1991L Open-Frame Touchscreen Model Overview

The Elo 1991L 19-inch Open-Frame Touch Display combines cutting-edge technology with user-friendly design, making it ideal for various applications from kiosks to industrial automation. Its energy-saving LED backlight not only reduces electricity consumption but also minimizes heat generation, ensuring longer life and reliable performance. With a wide viewing angle and a sealed touchscreen, the 1991L delivers vibrant visuals and accurate touch responsiveness, making it a perfect choice for interactive installations in retail and amusement environments.
Key features:
  • Choice of Elo touch technology: Options include IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, and Projected Capacitive.
  • Viewing angle: 178° (h) x 178° (v) for brilliant color reproduction.
  • Sealed touchscreen: Protects against dirt, dust, and liquids.
  • Multi-touch capability: PCAP 2GS support for a seamless experience with up to 10 touch points.
  • Connectivity: Includes DisplayPort and VGA interfaces.

Specifications:
  • Model: 1991L
  • Color: Black
  • Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
  • Diagonal: 19"
  • Native Resolution: 1280 x 1024 at 60Hz
  • Brightness: Up to 250 nits
  • Response Time: 14ms
  • Contrast Ratio: 1000:1
  • Power Consumption: 16W (ON), 1.5W (SLEEP), 0.5W (OFF)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years
  • Weight: Unpackaged: 10.14 lb (4.6 Kg)
  • Agency Approvals: UL, FCC, CE, and more
