Elo E326202 Touchscreen Signage

Part Number: E326202
Model: 3243L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
32"
Viewable Screen Size
32"
Screen Mode
Full HD
Response Time
8 ms

Product Description:

  32" Touchscreen Monitor, Elo 3243L, Open-Frame, 16:9 Aspect Ratio, IntelliTouch Dual-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 450 nits Brightness (typical), LED Backlight, 3000:1 Contrast Ratio (typical), USB Touch Controller Interface, Clear, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, Box Includes Quick Install Guide (With Driver), Japan Kiosk Class A Info, EEI Label, Side Mount Bracket Kit (8 pc Brackets, 16 pc M4x5 Screws), HDMI Cable (Type A Plug to Type A Plug), VGA Cable (DE-15 Male to DE-15 Male), USB Cable (Type A Plug to Type B Plug), Power Cable, IEC 60320-C13 to NA Plug, IEC 60320-C13 to EU/KR Plug, IEC 60320-C13 to UK Plug, IEC 60320-C13 to AR Plug, IEC 60320-C13 to CH Plug, IEC 60320-C13 to TW Plug, IEC 60320-C13 to JP Plug, 3-Pin to 2-Pin Adapter for JP Power Cable.
Explore all Elo 3243L Touchscreens
Add to Quote
Elo E326202 Touchscreen Signage
Elo E326202 Touchscreen Signage
Elo E326202 Touchscreen Signage
Elo E326202 Touchscreen Signage Elo E326202 Touchscreen Signage Elo E326202 Touchscreen Signage
Full specifications (PDF)

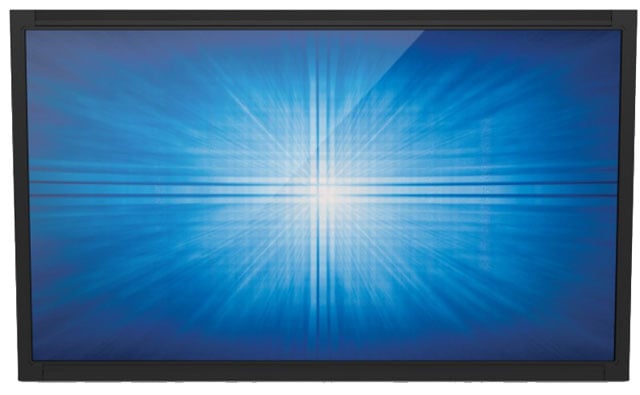

Elo 3243L Touchscreen Model Overview

The 3243L 32-inch Open-frame Touchmonitor from Elo Touch Solutions brings dual-touch performance and commercial durability to various applications. Engineered with IntelliTouch Plus surface acoustic wave technology, it delivers smooth interactions, making it ideal for retail, gaming, transportation, and hospitality environments. Its sleek design, featuring a mere 2.3" total thickness and less than 1" border width, allows for integration into modern kiosks. The robust glass construction ensures resilience against heavy use, and with a remarkable 60% energy savings thanks to its LED backlighting, the 3243L is a smart choice for both performance and efficiency.

Key Features:
  • 1920 x 1080 Full HD resolution for vibrant display
  • IntelliTouch Plus technology offering dual-touch functionality
  • Commercial-grade durability with "ball-drop" tested glass
  • Narrow borders and various mounting options for easy installation
  • Low power consumption with 60% energy savings
  • 3-year standard warranty for peace of mind


Specifications:
  • Model: 3243L
  • Color: Black
  • Active Display Area: 27.49" x 15.47" (698.4mm x 392.85mm)
  • Dimensions: 28.95" x 17.44" x 2.28" (735.4mm x 443mm x 58mm) max
  • Display Technology: Active matrix TFT LCD
  • Diagonal Size: 31.5"
  • Resolution: 1920 x 1080
  • Brightness: 350 nits (typical)
  • Response Time: 8 ms (typical)
  • Viewing Angle: Horizontal: 178°, Vertical: 178°
  • Contrast Ratio: 3000:1 (typical)
  • Power Consumption: 55W (Typical)
  • Weight: Unpackaged: 27.12 lbs (12.3kg)
  • Warranty: 3 year standard
Elo E326202 Touchscreen Signage Overview

The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor is available with a choice of two multi-touch touchscreen technologies, zero-bezel Projected Capacitive (PCAP) or IntelliTouch® Plus surface acoustic wave. The PCAP touchscreen offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows10 operating systems with up to 10 touches recognized simultaneously.

IntelliTouch Plus surface acoustic wave dual-touch offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements.

The 3243L touchmonitor is less than 2.3-inches (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust "ball-drop" requirements supporting applications in demanding public access environments.

The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Full specifications (PDF)
Technical Information
Screen Size Class:
32"
Viewable Screen Size:
32"
Screen Mode:
Full HD
Response Time:
8 ms
Aspect Ratio:
16:9
Backlight Technology:
LED
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
3,000:1
Brightness:
500 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Plus
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
17.4"
Width:
29"
Depth:
2.3"
Weight (Approximate):
26.70 lb
Item Numbers
GTIN: 0028999860290, 0644391036332, 0800953867077, 0834619009136
UPC: 028999860290, 644391036332, 800953867077, 834619009136
EAN: 0028999860290, 0644391036332, 0800953867077, 0834619009136
UNSPSC: 43211903
