Elo E343671 Touchscreen Signage

Part Number: E343671
Model: 3263L
Add to My Shopping List Add to Compare
$1,233.58
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
32"
Viewable Screen Size
31.5"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  32" Touchscreen Monitor, Elo 3263L, LCD, 16:9 Aspect Ratio, Projected Capacitive - 40 Touch, Palm Rejection & Touch Thru, 1920 x 1080/Full HD, 16.7 million Colors, 425 nits Brightness (typical), 3000:1 Contrast Ratio, VGA & HDMI 1.4, USB Touch Interface, Clear Anti-Friction Glass, Gray, 3-Year Warranty, Ambient Light Sensor/Auto-Wake
Explore all Elo 3263L Touchscreens
Add to Quote
Elo E343671 Touchscreen Signage
Elo E343671 Touchscreen Signage
Elo E343671 Touchscreen Signage
Elo E343671 Touchscreen Signage
Elo E343671 Touchscreen Signage Elo E343671 Touchscreen Signage Elo E343671 Touchscreen Signage Elo E343671 Touchscreen Signage
Full specifications (PDF)

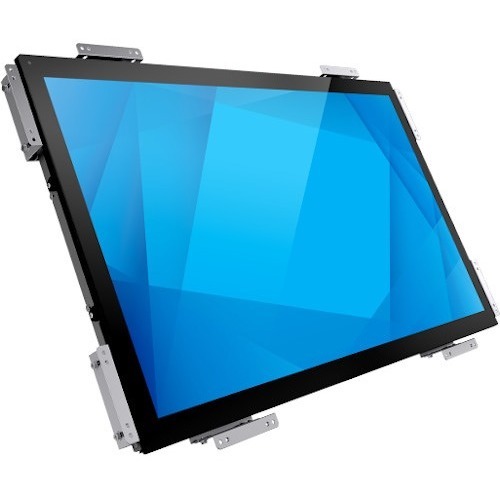

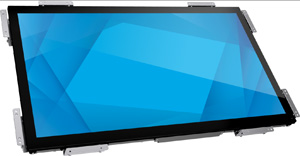

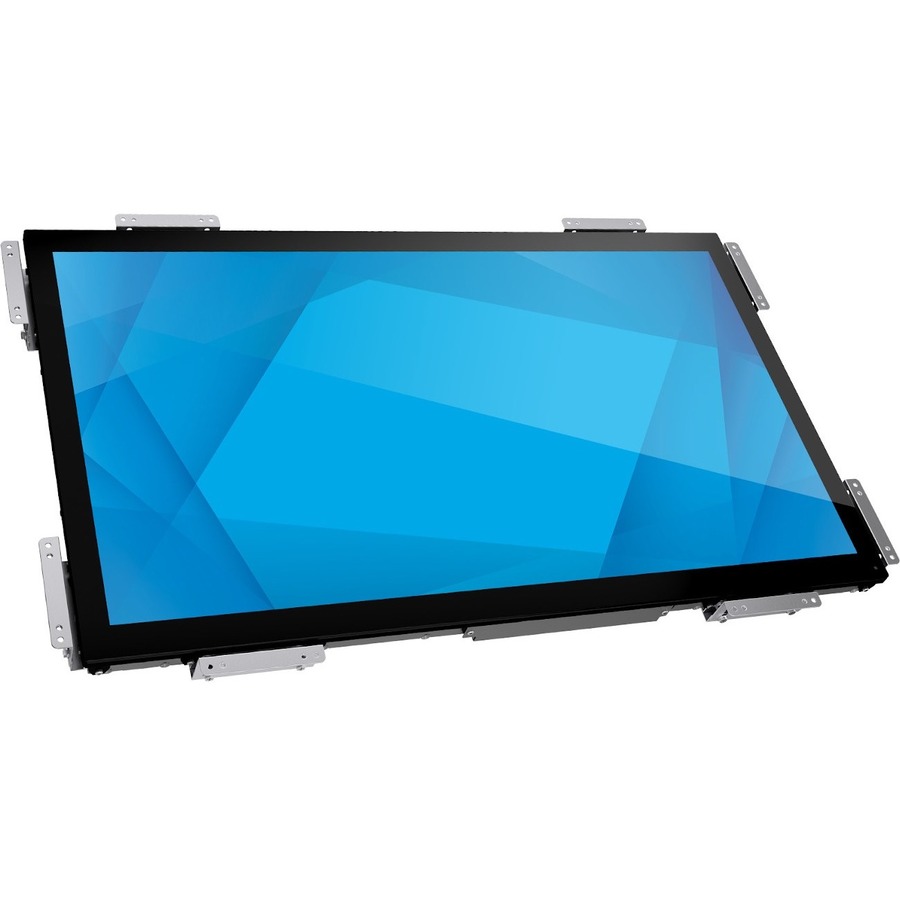

Elo 3263L Touchscreen Model Overview

Elo's commercial-grade 3263L 31.5-inch LCD Open-Frame Touchscreen offers a cutting-edge design tailored for seamless integration into various environments. Its full HD display features TouchPro® PCAP technology, delivering up to 40 simultaneous touches for an unparalleled, tablet-like user experience. Equipped with palm rejection and the capability to detect touch even through 6mm thick materials, this monitor excels in diverse applications ranging from retail kiosks to healthcare settings. With UL60950 and IK07 impact resistance ratings, the 3263L ensures durability and reliability, while the Energy Star 8.0 certification highlights its energy-efficient operation, keeping power costs low without compromising performance.
Key Features
  • 31.5-inch full HD open-frame design for versatile installation
  • Touch Pro® PCAP technology with palm rejection and touch thru capabilities
  • Supports up to 40 simultaneous touches for a responsive experience
  • Impact-resistant design exceeding UL60950 and IK07 standards
  • Energy-efficient with Energy Star 8.0 certification
  • Flexible mounting options including portrait, landscape, and tabletop orientations

Specifications
  • Model: 3263L
  • LCD Technology: Active matrix TFT LCD with LED backlight
  • Diagonal Size: 31.5" (800.1 mm)
  • Native Resolution: 1920 x 1080 @ 60Hz
  • Brightness: 500 nits (typical for LCD Panel), 425 nits (TouchPro PCAP)
  • Response Time: 8 ms (typical)
  • Viewing Angle: Horizontal 89°/178°, Vertical 89°/178°
  • Contrast Ratio: 3000:1
  • Weight: 24.17 lbs (10.99 Kg)
  • Dimensions: 29.42" x 17.82" x 2.16" / 747.3 mm x 452.7 mm x 55 mm
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Warranty: 3 years standard
Elo E343671 Touchscreen Signage Overview

The perfect touchscreen for any enclosure.

Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo's commercial-grade interactive displays offer the versatility to add touch to your solution.

Brilliant, interactiveTouchPro PCAP display.

The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.

Captivate customers and employees with reliable,easy to use interactive solutions.

  • Payment and Ticketing
  • Operating Room Control Board
  • Point of Information
  • Self-Order/Self-Checkout
  • Automation/Industrial Controls
  • Wayfinding & Interactive Signage

Designed for easy integration.

Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

Get the viewing experience you want to see.

Whether viewing straight on or at an angle, close-up or from a distance, Elo's touchscreen displays offer optimal clarity for the viewing experience.

Place your touchscreen behindan extra layer of protection.

For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Make your digital transformation faster,and more affordable.

Elo EssentialEdge™ for Android offers everything you need to build and operate interactive solutions for your business.

The Elo Backpack brings computing power that scales.

With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.

Full specifications (PDF)
Technical Information
Screen Size Class:
32"
Viewable Screen Size:
31.5"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
8 ms
Response Time Details:
8 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
  • Anti-glare
  • On-screen Display (OSD)
  • OnScreen Control
  • Ambient Light Sensor
Horizontal Frequency:
31.50 kHz to 80 kHz
Vertical Frequency:
47 Hz to 63 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
3,000:1
Brightness:
500 Nit
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
40
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
44.30 W
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 200
Color Family:
Black
Product Color:
Black
Height:
17.8"
Width:
29.4"
Depth:
2.2"
Weight (Approximate):
24.17 lb
Miscellaneous
Package Contents:
  • 3263L 32-inch Full HD Open-Frame Touchscreen LCD Monitor
  • Quick Installation Guide
  • HDMI 1.4 Cable (Type A Plug to Type A Plug)
  • USB Cable (Type A Plug to Type B Plug)
  • VGA Cable (DB-15 Male to DB-15 Male)
  • RJ45 Wired OSD Remote
  • Power Cable IEC 60320-C13 to NA Plug
  • 8 Sets Flushmount Brackets 48 pcs Screws
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 8.0
Energy Efficiency Compliance:
Korea E-Standby
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173126906
UPC: 843173126906
EAN: 0843173126906
UNSPSC: 43211903

Recommended Accessories

Category

  • Computer Components (1)
  • Digital Signage Display Accessories (1)
  • Touchscreen Accessories (1)

Recommended Accessories for Model: Elo E343671 Touchscreen Signage

Top Computer Components Purchased With Elo E343671

  • Elo E393359 Accessory
    Elo E393359 Accessory
    Compute Engine, Elo Backpack 4, Standard Model, USB/Ethernet/Bluetooth/Wi-Fi, HDMI, USB-C output, Micro-SD, GPIO, Qualcomm 660 4GB RAM, 64GB Storage, Android 10, Google Mobile Services, Black, Compatible with I-Series 4.
    Item on backorder — chat for lead time
    $643.61
    Add to Quote

Top Digital Signage Display Accessories Purchased With Elo E343671

Top Touchscreen Accessories Purchased With Elo E343671

Frequently Asked Questions

The Elo 3263L is a 32-inch touchscreen monitor with a 16:9 aspect ratio and 1920 x 1080 Full HD resolution. This size and aspect ratio make it ideal for kiosk and signage applications where you need a large, widescreen display. We offer the 3263L as an open-frame model designed for easy integration into custom enclosures.

The Elo 3263L supports up to 40 simultaneous touches with projected capacitive technology, palm rejection, and touch-through capabilities. This multi-touch functionality delivers a tablet-like user experience and enables complex gesture-based interactions for modern kiosk applications. Contact us today to discuss which touch specifications best fit your deployment needs.

The Elo 3263L provides VGA and HDMI 1.4 video inputs along with a USB touch interface for connecting to your host system. These standard connectivity options ensure compatibility with a wide range of kiosk controllers, PCs, and signage systems. We stock the 3263L with all necessary cables and connectors to get your installation running quickly.

The Elo 3263L is available in two glass options: anti-glare and anti-friction, both with edge-to-edge glass construction. The monitor also includes an ambient light sensor and auto-wake functionality to optimize visibility in varying lighting conditions. With 425 nits typical brightness and a 3000:1 contrast ratio, the 3263L performs well in both indoor and brightly lit environments.

Yes, the Elo 3263L is specifically designed as an open-frame touchscreen monitor for easy integration into kiosks and custom enclosures. Its slim form factor, edge-to-edge glass, and durable projected capacitive touch technology make it well-suited for high-traffic public-facing applications. Available from us with a 3-year warranty to ensure reliable performance in your signage deployments.

The Elo 3263L comes with a 3-year warranty covering defects in materials and workmanship. Our team at Barcodes Inc is available to answer technical questions, assist with integration, and help you select the right touch glass option for your specific application. Contact us today for warranty details and support options.

The Elo E343671 Touchscreen Signage is also known as ELO-E343671 or E343671.
