Full specifications (PDF)
Features:
- Progressive Scan
- Scratch Resistance
- Water Resistance
Elo E220625 Touchscreen
Part Number:
E220625
Model:
3243L

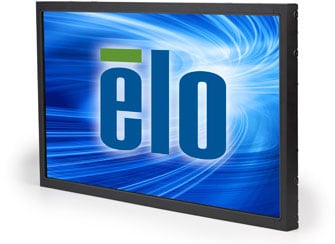

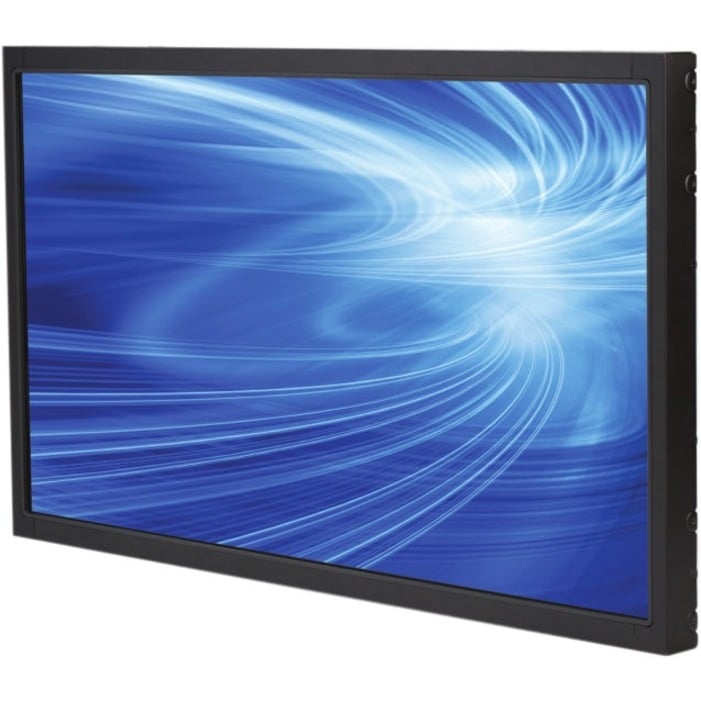

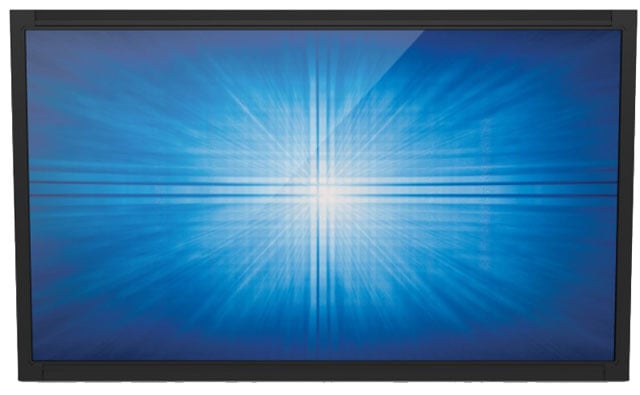

Elo 3243L Touchscreen Model Overview
The 3243L 32-inch Open-frame Touchmonitor from Elo Touch Solutions brings dual-touch performance and commercial durability to various applications. Engineered with IntelliTouch Plus surface acoustic wave technology, it delivers smooth interactions, making it ideal for retail, gaming, transportation, and hospitality environments. Its sleek design, featuring a mere 2.3" total thickness and less than 1" border width, allows for integration into modern kiosks. The robust glass construction ensures resilience against heavy use, and with a remarkable 60% energy savings thanks to its LED backlighting, the 3243L is a smart choice for both performance and efficiency.
Key Features:
Specifications:
Key Features:
- 1920 x 1080 Full HD resolution for vibrant display
- IntelliTouch Plus technology offering dual-touch functionality
- Commercial-grade durability with "ball-drop" tested glass
- Narrow borders and various mounting options for easy installation
- Low power consumption with 60% energy savings
- 3-year standard warranty for peace of mind
Specifications:
- Model: 3243L
- Color: Black
- Active Display Area: 27.49" x 15.47" (698.4mm x 392.85mm)
- Dimensions: 28.95" x 17.44" x 2.28" (735.4mm x 443mm x 58mm) max
- Display Technology: Active matrix TFT LCD
- Diagonal Size: 31.5"
- Resolution: 1920 x 1080
- Brightness: 350 nits (typical)
- Response Time: 8 ms (typical)
- Viewing Angle: Horizontal: 178°, Vertical: 178°
- Contrast Ratio: 3000:1 (typical)
- Power Consumption: 55W (Typical)
- Weight: Unpackaged: 27.12 lbs (12.3kg)
- Warranty: 3 year standard
Technical Information
Display & Graphics
Screen Size:
32"
Display Screen Type:
LCD
Touchscreen:
No
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
HDCP Supported:
Yes
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
3,000:1
Brightness:
350 Nit
Interfaces/Ports
VGA:
Yes
HDMI:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
55 W
Physical Characteristics
Product Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 200
Height:
17.4"
Width:
29"
Depth:
2.3"
Weight (Approximate):
27.12 lb
Miscellaneous
Package Contents:
- 3243L Open-frame Digital Signage Display Non-Touch
- Side Mounting Brackets
- Video/Accessory Cables
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
- China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
7411493306648
EAN:
7411493306648
UNSPSC:
43211902
