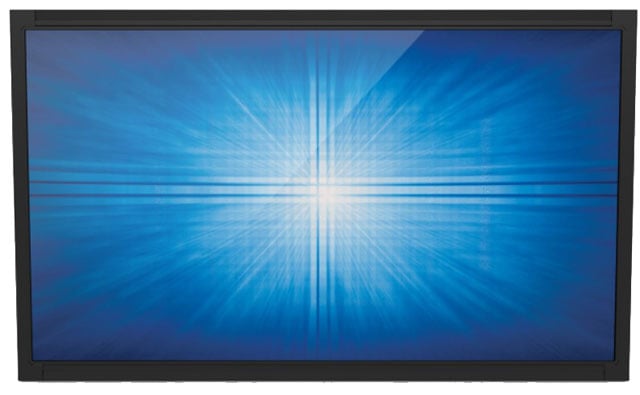

Elo E304029 Touchscreen Signage

Part Number: E304029
Model: 3243L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size
32"
Display Screen Type
LCD
Touchscreen
Yes
Display Resolution
1920 x 1080

Product Description:

  32" Touchscreen Monitor, Elo 3243L, Open-Frame, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 425 nits Brightness (typical), LED Backlight, 3000:1 Contrast Ratio (typical), USB Touch Controller Interface, Clear with Anti-Friction, Zero-Bezel, No Stand, Black, 3-Year Warranty, Box Includes Quick Install Guide (With Driver), Japan Kiosk Class A Info, EEI Label, HDMI Cable (Type A Plug to Type A Plug), VGA Cable (DE-15 Male to DE-15 Male), USB Cable (Type A Plug to Type B Plug), Power Cable, IEC 60320-C13 to NA Plug, IEC 60320-C13 to EU/KR Plug, IEC 60320-C13 to UK Plug, IEC 60320-C13 to AR Plug, IEC 60320-C13 to CH Plug, IEC 60320-C13 to TW Plug, IEC 60320-C13 to JP Plug, 3-Pin to 2-Pin Adapter for JP Power Cable.
Explore all Elo 3243L Touchscreens
Add to Quote
Elo E304029 Touchscreen Signage
Elo E304029 Touchscreen Signage
Elo E304029 Touchscreen Signage
Elo E304029 Touchscreen Signage
Elo E304029 Touchscreen Signage Elo E304029 Touchscreen Signage Elo E304029 Touchscreen Signage Elo E304029 Touchscreen Signage
Full specifications (PDF)

Elo 3243L Touchscreen Model Overview

The 3243L 32-inch Open-frame Touchmonitor from Elo Touch Solutions brings dual-touch performance and commercial durability to various applications. Engineered with IntelliTouch Plus surface acoustic wave technology, it delivers smooth interactions, making it ideal for retail, gaming, transportation, and hospitality environments. Its sleek design, featuring a mere 2.3" total thickness and less than 1" border width, allows for integration into modern kiosks. The robust glass construction ensures resilience against heavy use, and with a remarkable 60% energy savings thanks to its LED backlighting, the 3243L is a smart choice for both performance and efficiency.

Key Features:
  • 1920 x 1080 Full HD resolution for vibrant display
  • IntelliTouch Plus technology offering dual-touch functionality
  • Commercial-grade durability with "ball-drop" tested glass
  • Narrow borders and various mounting options for easy installation
  • Low power consumption with 60% energy savings
  • 3-year standard warranty for peace of mind


Specifications:
  • Model: 3243L
  • Color: Black
  • Active Display Area: 27.49" x 15.47" (698.4mm x 392.85mm)
  • Dimensions: 28.95" x 17.44" x 2.28" (735.4mm x 443mm x 58mm) max
  • Display Technology: Active matrix TFT LCD
  • Diagonal Size: 31.5"
  • Resolution: 1920 x 1080
  • Brightness: 350 nits (typical)
  • Response Time: 8 ms (typical)
  • Viewing Angle: Horizontal: 178°, Vertical: 178°
  • Contrast Ratio: 3000:1 (typical)
  • Power Consumption: 55W (Typical)
  • Weight: Unpackaged: 27.12 lbs (12.3kg)
  • Warranty: 3 year standard
Elo E304029 Touchscreen Signage Overview
The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 3243L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotels, gaming, transportation and other commercial uses. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. The 3243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 3243L.
Full specifications (PDF)
Display & Graphics
Screen Size:
32"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Resolution:
1920 x 1080
Backlight Technology:
LED
Video
Scan Format:
1080p
Brightness:
425 Nit
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Physical Characteristics
Product Color:
Black
Height:
17.4"
Width:
29"
Depth:
2.3"
Weight (Approximate):
27.12 lb
Warranty
Limited Warranty:
3 Year
