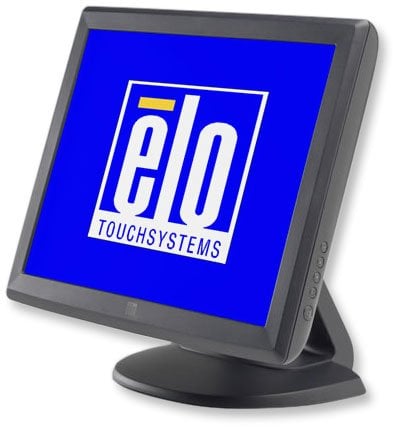

Elo E176383 Touchscreen

Part Number: E176383
Model: 1515L

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

  ELO 1515L 15" LCD Touchscreen Monitor - 4:3 - 11.70 ms - 15" Class - Acoustic Pulse RecognitionMulti-touch Screen - 1024 x 768 - XGA - 16.7 Million Colors - 500:1 - 250 Nit - USB - VGA - Dark Gray

Elo 1515L Touchscreen Model Overview

The 1000 Series of touchmonitors are designed, developed and built to provide the most cost-effective touch solutions. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; or IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications, plus a dual serial/USB interface, sealed touchscreen, internal power supply and removable base.
Elo E176383 Touchscreen Overview
The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo Touch Solutions. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surfacewith multi-touch.
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
11.70 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Mount Type:
Desk Mountable
Features:
Security Lock
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Acoustic Pulse Recognition
Multi-touch Screen:
Yes
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Dark Gray
Height with Stand:
12.20"
Width with Stand:
13.80"
Depth with Stand:
6.90"
Weight (Approximate):
7.30 lb
Weight with Stand (Approximate):
10.60 lb
Item Numbers
UNSPSC: 43211903
