Elo E175580 Touchscreen

Elo E321195 Touchscreen A newer version of this item is available.
It is replaced by the Elo E321195 Touchscreen.
Elo 1093L Open-Frame - Elo 1093L 10.1" Open-frame LCD Touchscreen Monitor - 16:10 - 25 ms - Projected CapacitiveMulti-touch Screen - 1280 x 800 - WXGA - 262,000 Colors - 800:1 - 350 Nit - LED Backlight - USB - VGA - DisplayPort - Black
  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1280 x 800 pixels
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • Enjoy crisp content and energetic hues with the 350 Nit brightness
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

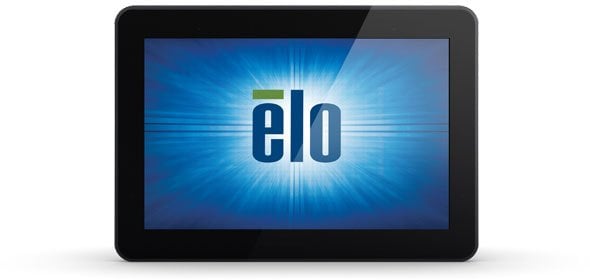

Elo 1093L Open-Frame Touchscreen Model Overview
The Elo 1093L 10-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's 1093L open frame delivers outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight that uses less electricity to operate while generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo E175580 Touchscreen Overview

The Elo 1093L 10" open-frame LCD touch display provides an additional compact size to complement the family of touch solutions for kiosk, gaming, amusement, and industrial automation. Featuring a slim design and narrow outside dimensions, the state-of-the art energy saving LED backlight uses less electricity to operate and generates less heat.

This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 1093L provides stable "drift-free" operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.

This seamless zero-bezel 10" multi-touch display is available with our latest projected capacitive (PCAP) 2GS (two glass solution) technology that delivers both a ten touch "tablet like" interactive experience along with thru-glass functionality - both modes support single or dual latex gloves as well as cloth gloves.

At Elo, we design, build and are responsible for the complete solution with touch integrated from the start. We use our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life testing processes.

Worldwide agency approvals cover the whole display, which is developed, built, serviced and supported by a true single source supplier. The 1093L open-frame LCD touch display provides an economical solution for system integrators and VARs.

Technical Information
Viewable Screen Size:
10.1"
Screen Mode:
WXGA
Response Time:
25 ms
Aspect Ratio:
16:10
Mount Type:
Flush Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1280 x 800
Color Supported:
262,000 Colors
Contrast Ratio:
800:1
Brightness:
350 Nit
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
6 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
7"
Width:
10.1"
Depth:
1.5"
Weight (Approximate):
2.65 lb
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E175580 Touchscreen is also known as ELO-E175580 or E175580.
