Elo E124347 Touchscreen

Elo E658788 Touchscreen A newer version of this item is available.
It is replaced by the Elo E658788 Touchscreen.

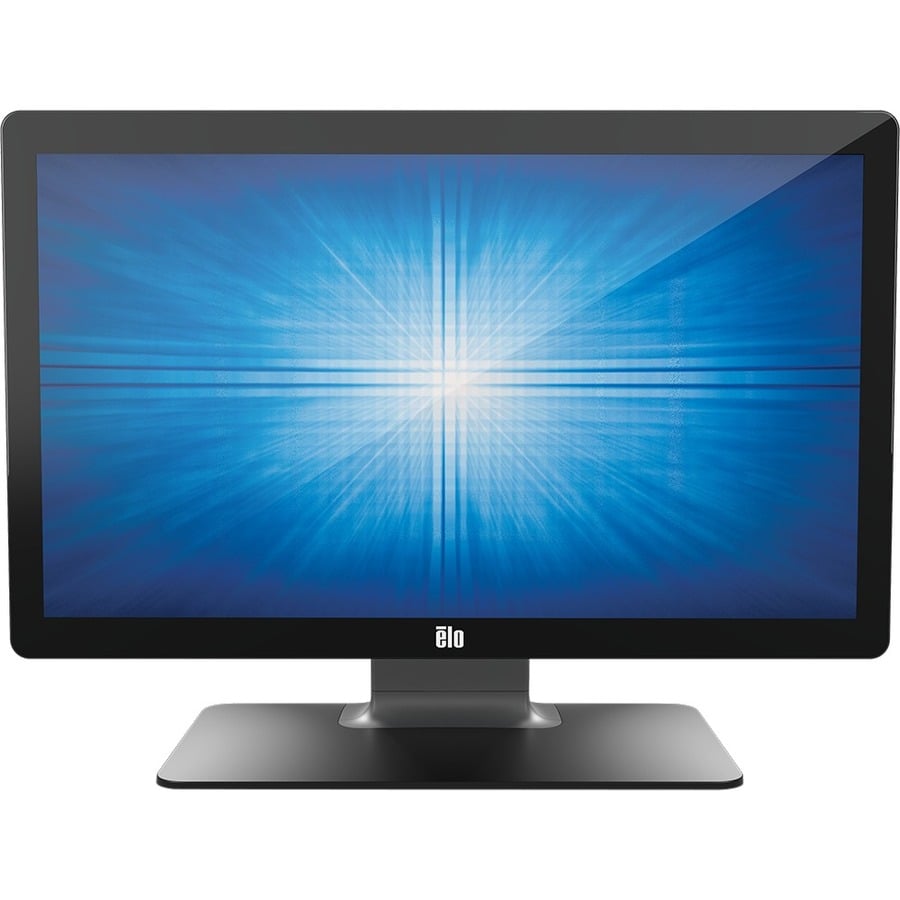

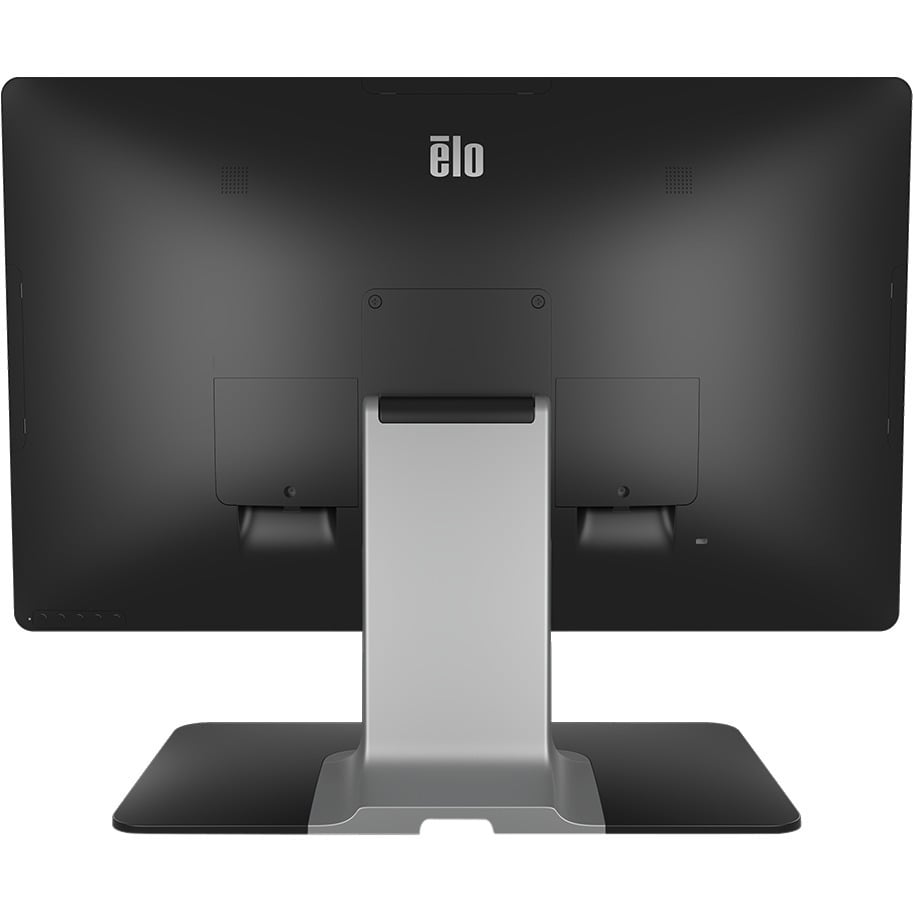

Elo 2203LM 22 Inch Medical Grade - Elo 2203LM 21.5" LCD Touchscreen Monitor - 16:9 - 25 ms - 22" Class - TouchPro Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 250 Nit, 240 Nit - LCD Panel, TouchPro PCAP - LED Backlight - Speakers - HDMI - USB - VGA - Black
  • Experience an energetic display of colors, contrast and pictures with the full hd lcd touchscreen monitor
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • Furnishes captivating visuals with about 250 Nit brightness levels
Read More

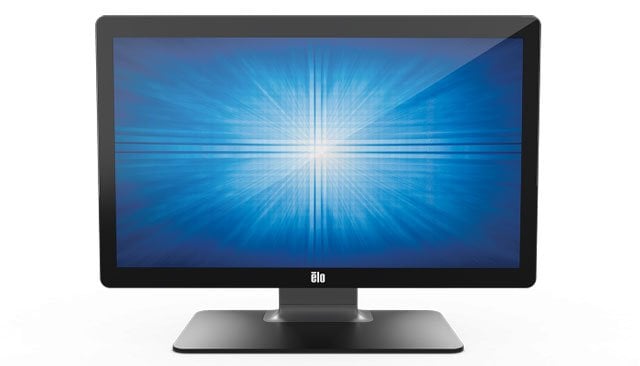

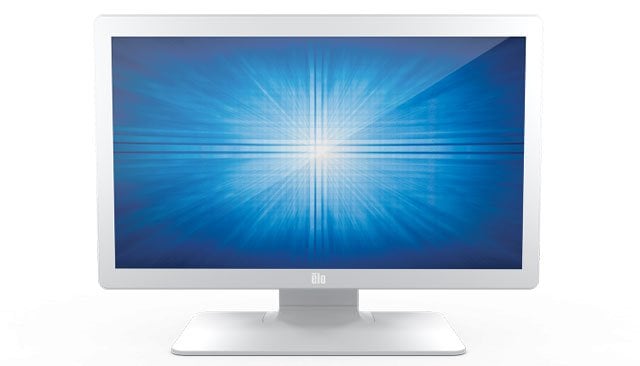

Elo 2203LM 22 Inch Medical Grade Touchscreen Model Overview
The Elo 2203LM 22" Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. The Elo 2203LM 22" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 2203LM 22" Medical Grade Touchscreen Monitor comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E124347 Touchscreen Overview

03-Series Healthcare Touchscreen Monitors

The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series offers IEC60601-1 4th edition and IP54 compliance to support healthcare installations.

Brilliant Displays from 19 to 27-inches

The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.

Well-Suited for

The 03-Series Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments - from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.

Privacy Matters

Optional privacy screen can be used as an additional physical safeguard for private health information or sensitive administrative data. Whether you are a physician or a patient, privacy matters.

Get a handle on it

Some healthcare applications require a display with flexibility of movement to support the appointment with a patient. With handles connected to the monitor, a physician can easily move the display to a comfortable orientation.

Mount with Flexibility

Delivering a seamless experience from patient check-in to check-out is important, so monitor placement matters. The monitors can be mounted on a stand or any mount compatible with VESA configuration - allowing integrators to meet the IT monitor placement requirements demanded by healthcare providers.

The Elo Advantage

Customization

Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.

Global Reach

Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.

Long Life Cycle

We do everything in our power to minimize design changes and we have kept some monitors available to order for over seven years.

Built-to-Last

The 03-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design and build the complete solution, with touch integrated from the start.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Response Time:
25 ms
Aspect Ratio:
16:9
Mount Type:
  • Wall Mountable
  • Pole Mount
  • Shelf Mount
Backlight Technology:
LED
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
22.50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height with Stand:
15.11"
Width with Stand:
20.74"
Depth with Stand:
7.61"
Weight (Approximate):
11.46 lb
Weight with Stand (Approximate):
14.99 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0843173124001
UPC: 843173124001
EAN: 0843173124001
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E124347 Touchscreen is also known as E124347
