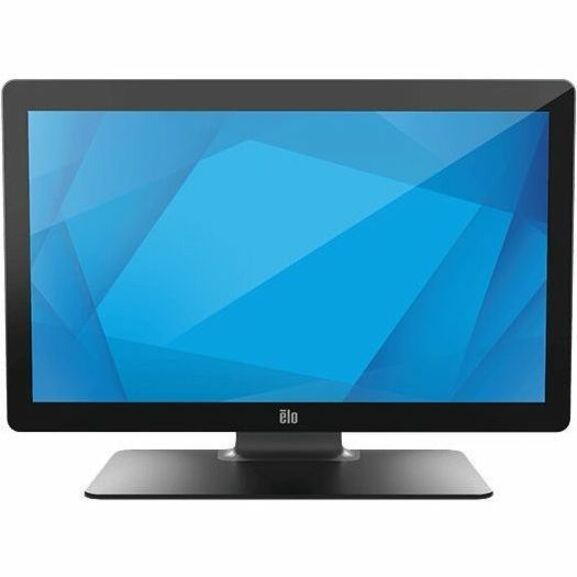

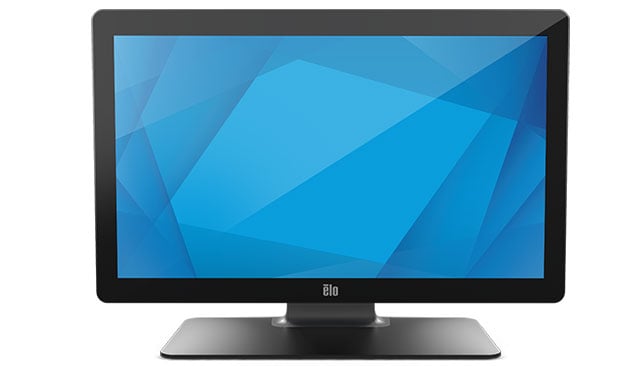

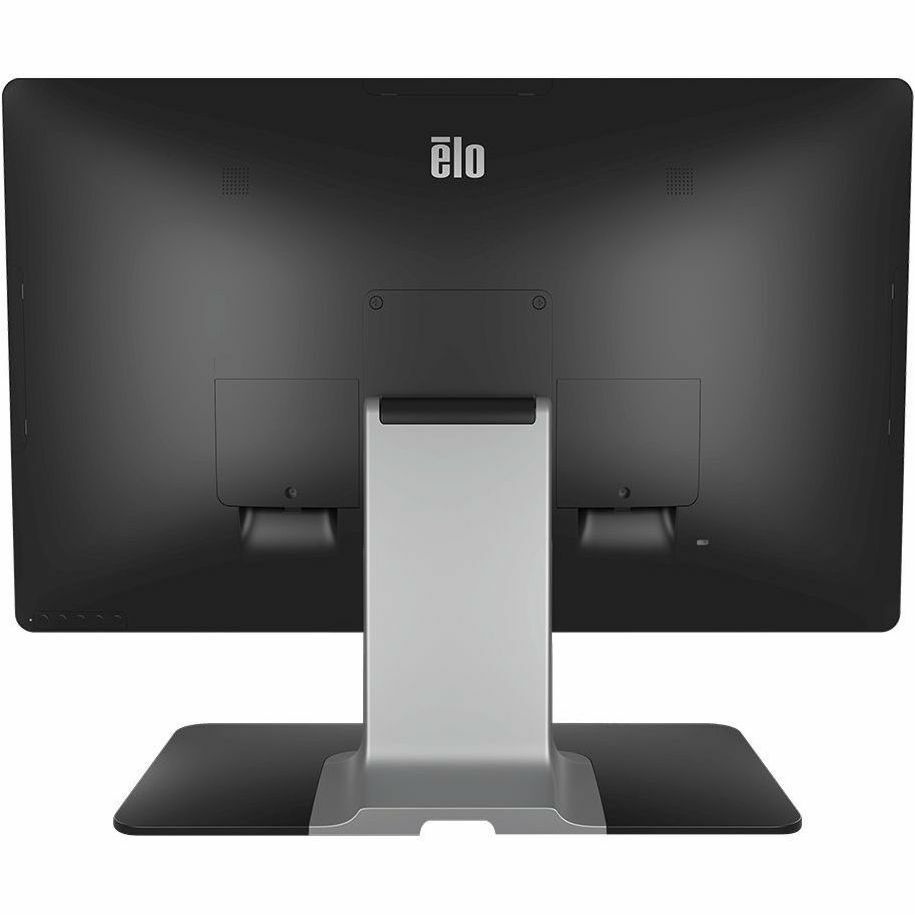

Elo E658788 Touchscreen

Part Number: E658788
Model: 2203LM
Add to My Shopping List Add to Compare
$1,026.31
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Response Time
14 ms

Product Description:

  22" Touchscreen Monitor, Elo 2203LM, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 225 nits Brightness (typical), 1000:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, DICOM 14, Box Includes Quick Install Guide, 3x Tie Wraps, VGA Cable (Part# E810917), HDMI Cable, Touch USB Cable (Part# E408193), Audio Cable, Power Brick (Part# E323104), NA Power Cable (Part# E593865), EU Power Cable (Part# E594264), EEI Label, DICOM Calibration Sheet.
Explore all Elo 2203LM 22 Inch Medical Grade Touchscreens
Add to Quote
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen
Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen Elo E658788 Touchscreen
Full specifications (PDF)

Elo 2203LM 22 Inch Medical Grade Touchscreen Model Overview

The Elo 2203LM 22" Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. The Elo 2203LM 22" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 2203LM 22" Medical Grade Touchscreen Monitor comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E658788 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitor

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy | Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

More from the Manufacturer

Full specifications (PDF)
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Response Time:
14 ms
Response Time Details:
14 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Arm-mountable
  • Wall Mountable
  • Cart Mountable
Backlight Technology:
LED
Features:
  • Privacy Filter
  • Ergonomic Design
  • Anti-glare
  • On-screen Display (OSD)
  • LED Indicator
  • OSD/Power Lock
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Ingress Protection (IP) Rating:
IP54
Impact Protection (IK) Rating:
IK06
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Number of Speakers:
2
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Number of USB Ports:
4
Power Description
Operating Power Consumption:
16.78 W
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
Black
Product Color:
Black
Height with Stand:
15.11"
Width with Stand:
20.74"
Depth with Stand:
7.61"
Weight (Approximate):
10.58 lb
Weight with Stand (Approximate):
14.88 lb
Miscellaneous
Package Contents:
  • 2203LM 22" Medical Grade Touchscreen Monitor
  • Stand
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick (E323104)
  • Power Cable
  • EEI Label
  • DICOM Calibration Sheet
  • 2 x Cable Cover Screws
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173135441
UPC: 843173135441
EAN: 0843173135441
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • POS Monitor Accessories (7)
  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (4)

Recommended Accessories for Model: Elo E658788 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E658788

Top POS Monitor Accessories Purchased With Elo E658788

  • Elo E804330 Accessory
    Elo E804330 Accessory
    Mounting Hardware & Stands, ELO, 24 and 27-Inch Replacement Stand, 02-/03-Series Desktop Monitors, Color: Black
    Item on backorder — chat for lead time
    $201.50
    Add to Quote
  • Elo E352392 Accessory
    Elo E352392 Accessory
    Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White
    Item on backorder — chat for lead time
    $189.47
    Add to Quote
  • Elo E593253 Accessory
    Elo E593253 Accessory
    Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $202.73
    Add to Quote
See All POS Monitor Accessories for Elo E658788 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E658788

Top Touchscreen Accessories Purchased With Elo E658788

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E043382 Accessory
    Elo E043382 Accessory
    Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series
    Item on backorder — chat for lead time
    $133.83
    Add to Quote
  • Elo E810917 Accessory
    Elo E810917 Accessory
    Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens
    Item on backorder — chat for lead time
    $29.89
    Add to Quote
See All Touchscreen Accessories for Elo E658788 Touchscreen >

Frequently Asked Questions

Yes, the Elo 2203LM is purpose-built for healthcare and complies with IEC60601-1 4th edition requirements. It is IP54 certified to support healthcare environments and features DICOM Part 14 functionality to enhance clinical review for healthcare providers while increasing patient engagement.

The Elo 2203LM features projected capacitive 10-touch technology, which provides responsive and accurate multi-touch input suitable for clinical applications, EMR documentation, and medical device integration.

The Elo 2203LM is a 22" medical-grade LCD touchscreen with a 16:9 aspect ratio, 1920 x 1080 Full HD resolution, 16.7 million colors, 225 nits brightness (typical), and a 1000:1 contrast ratio (typical). It features an anti-glare coating and zero-bezel design.

The Elo 2203LM provides RS232 Serial and USB touch controller interface options. The monitor comes with VGA and HDMI cables for video connectivity, plus a touch USB cable and audio cable for complete integration into your healthcare workflow.

The Elo 2203LM is well-suited for EMR documentation, image viewing, clinical collaboration, laboratory and pharmacy deployment, and integration into medical devices. Its compact form factor and clean design make it ideal for healthcare environments requiring reliable touchscreen interaction.

The Elo 2203LM comes with a 3-year warranty and includes a comprehensive accessory package: VGA and HDMI cables, touch USB cable, audio cable, power brick, NA and EU power cables, quick install guide, tie wraps, and a DICOM calibration sheet. Contact us today at barcodesinc.com for additional support options.

The Elo E658788 Touchscreen is also known as ELO-E658788 or E658788.
