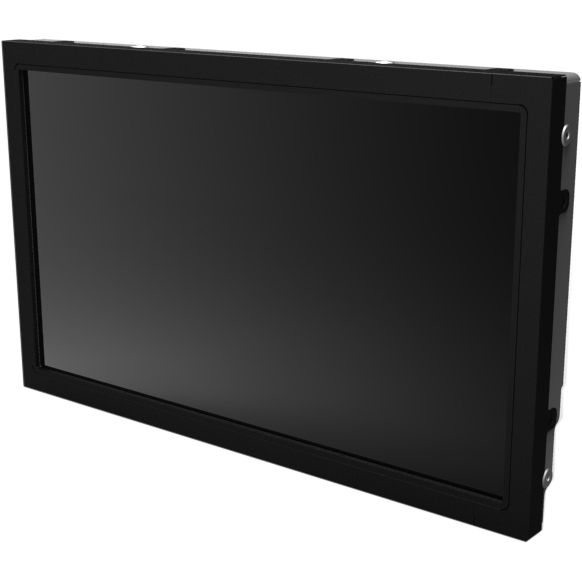

Elo E065303 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E331214 Touchscreen.

Elo 1940L - Elo 1940L 19" Open-frame LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Projected CapacitiveMulti-touch Screen - 1366 x 768 - WXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year

The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
LED backlight technology provides for industry-leading low power consumption and less hazardous materials
Furnishes captivating visuals with about 250 Nit brightness levels

Need a different version? See all Elo 1940L Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

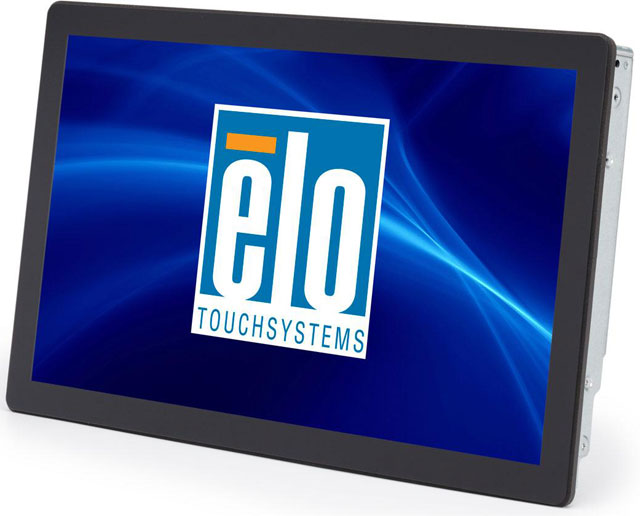

Elo 1940L Touchscreen Model Overview

Available with either IntelliTouch Plus multi touch surface acoustic wave touchscreen technology or projected capacitive for a no bezel look, the 1940L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission for an accurate touch response and vivid images. The 1940L is an ideal solution for many public applications including gift registry, food ordering, airline check in, DVD and bill paying kiosks.

Elo E065303 Touchscreen Overview

Available with either IntelliTouch Plus multi-touch surface acoustic wave touchscreen technology or projected capacitive for a no bezel look, the 1940L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images! The 1940L is an ideal solution for many public applications including gift registry, food ordering, airline check-in, DVD and bill-paying kiosks.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

WXGA

Response Time:

5 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

160°

Mount Type:

Flush Mount

Backlight Technology:

LED

Video

Maximum Resolution:

1366 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Projected Capacitive

Multi-touch Screen:

Yes

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

25 W

Standby Power Consumption:

2 W

Off-Mode Power Consumption:

1 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

Black

Height:

10.6"

Width:

17.6"

Depth:

1.5"

Weight (Approximate):

7.40 lb

Miscellaneous

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
China RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493288074

EAN: 7411493288074

UNSPSC: 43211903

Reviews

Q&A

Accessories

Service Contracts

Questions? Get help from
a POS Expert!

The Elo E065303 Touchscreen is also known as ELO-E065303 or E065303.
