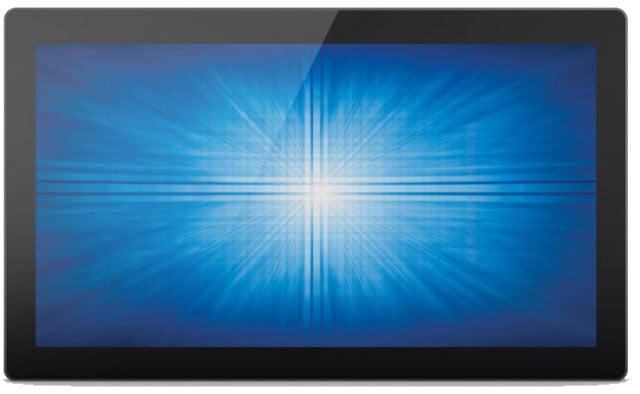

The Elo 2094L 19.5-inch Open-Frame Touch Display combines sleek design with impressive functionality. Engineered with cutting-edge LED backlighting, this touch monitor delivers exceptional image clarity while reducing energy consumption. Its versatile applications make it an ideal choice for kiosks, retail self-service, amusement gaming, and industrial automation. The durable touchscreen is sealed against dirt and liquids, ensuring reliable performance in various environments. With options for both single and multi-touch technologies, the 2094L promises a responsive and engaging user experience.
Key Features
Choice of Touch Technology: Available in IntelliTouch® Surface Acoustic Wave (SAW) or zero-bezel projected capacitive (PCAP).
LED Backlighting: Energy-efficient and sleek design enhances visual appeal.
178° Viewing Angles: Sharp colors and graphics in both portrait and landscape modes.
Durable Touchscreen: PCAP 2GS offers superior optical clarity and is designed for longevity.
Multi-Touch Capability: Supports up to ten simultaneous touches with Thru-glass functionality.
Comprehensive Agency Approvals: Ensures product safety and reliability.
Specifications
Model: 2094L
Color: Black
Active Display Area: 434.9 x 238.7 mm (17.12 x 9.40 inches)
Diagonal: 19.5 inches
Native Resolution: 1920 x 1080
Brightness: 250 nits (typical)
Contrast Ratio: 3000:1
Power Consumption: 20W ON, 1.5W SLEEP, 0.5W OFF
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Weight: Unpackaged: 10.36 lb (4.7 kg)
Warranty: 3 years standard
Elo E331214 Touchscreen Overview

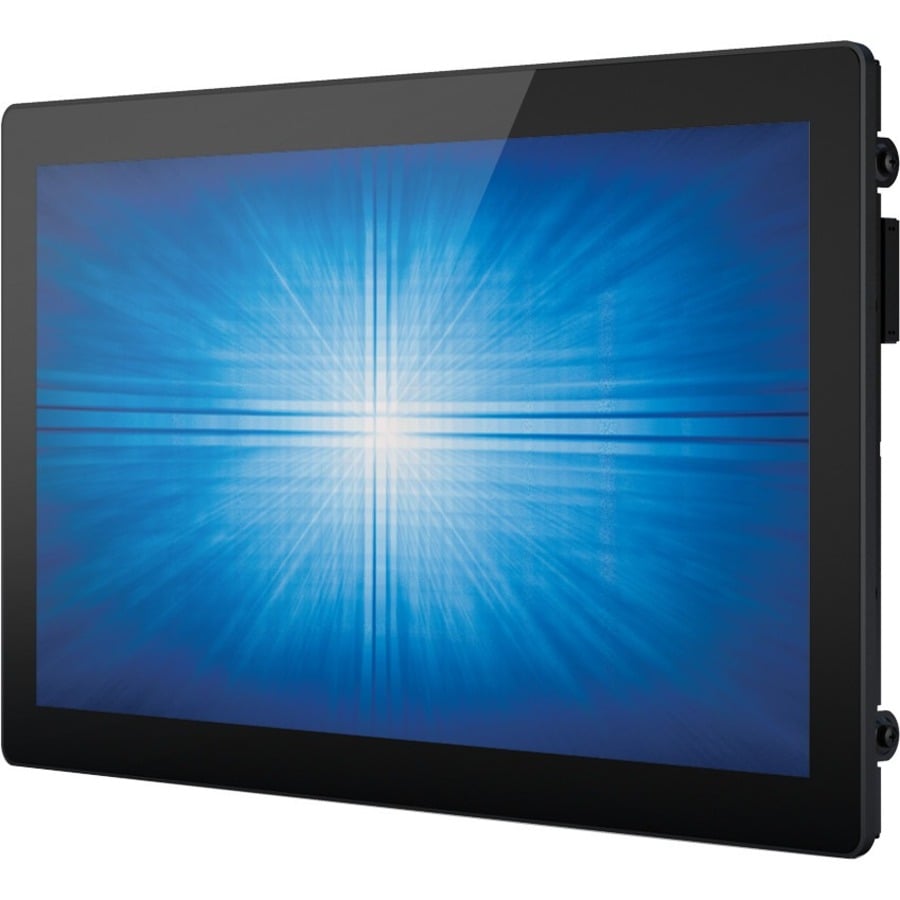

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
What touch technology does the Elo 2094L touchscreen use?
The Elo 2094L features projected capacitive 10-touch technology, which delivers accurate and responsive touch input for high-traffic kiosk and industrial applications. This technology enables drift-free operation and reliable performance across commercial, retail, and automation environments.
What video interfaces are available on the Elo E331214 touchscreen?
The Elo 2094L offers multiple video connectivity options including HDMI, VGA, and DisplayPort interfaces. This versatility allows seamless integration with various systems and controllers, and we include HDMI and VGA cables in the box to get you started immediately.
Is the Elo 2094L suitable for self-service kiosk applications?
Yes, the Elo 2094L is specifically designed for self-service kiosk environments and delivers the reliability and image clarity needed for retail, gaming, and amusement applications. Its wide viewing angle panel and vivid display instantly capture user attention while maintaining stable, drift-free touch responses.

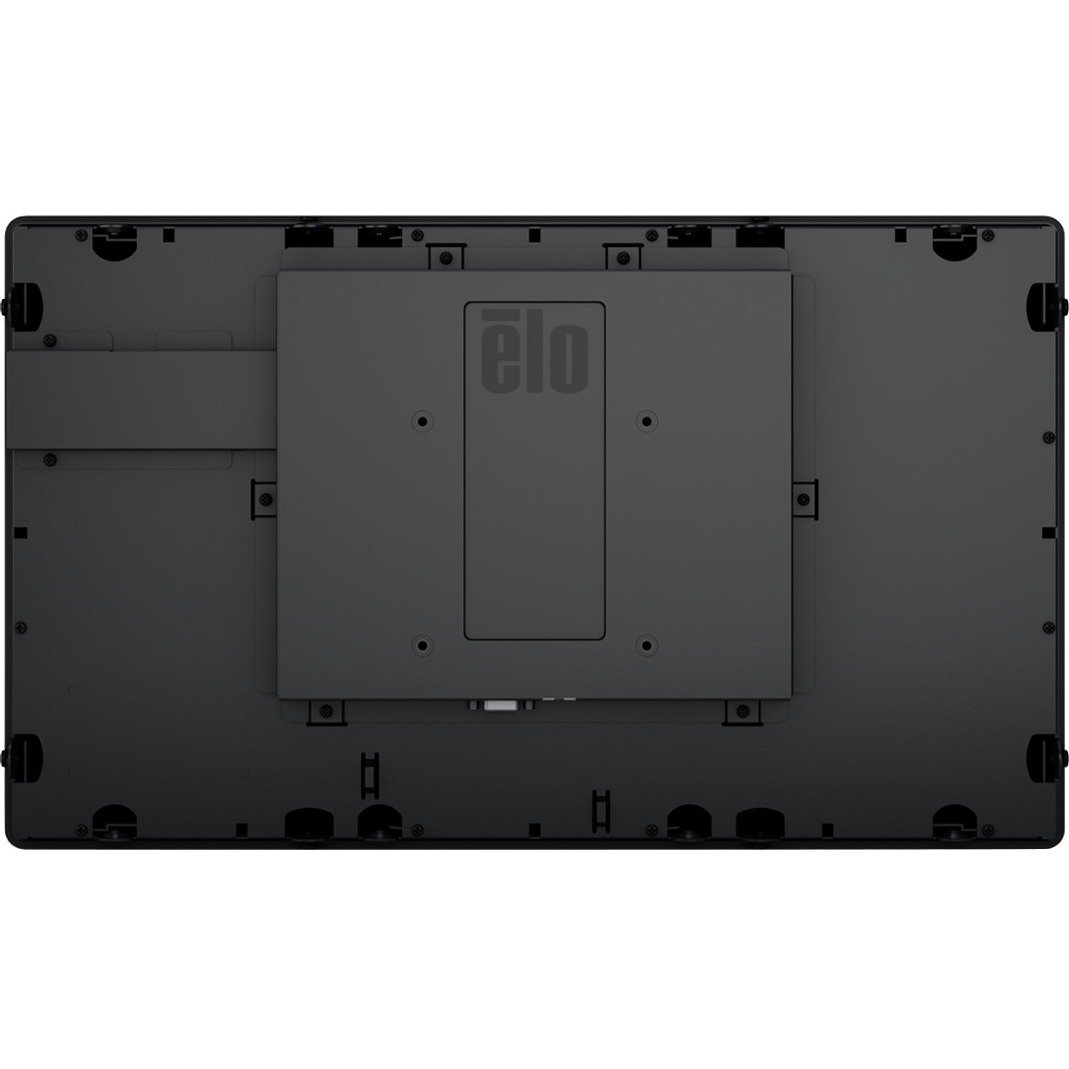

What mounting options does the Elo 2094L open-frame touchscreen provide?

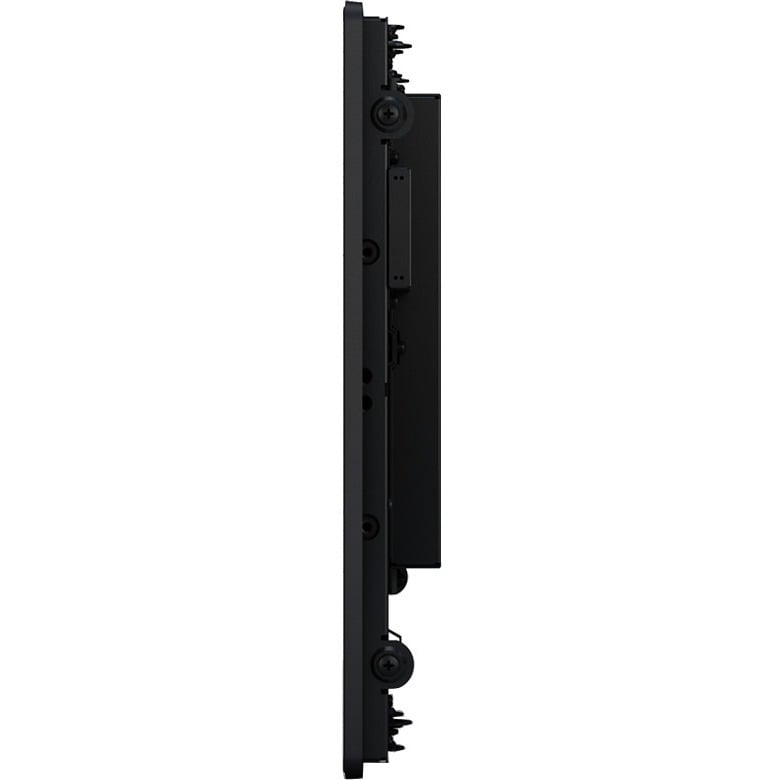

The Elo 2094L features a zero-bezel, flush-mount design with included flush mount brackets and screws for seamless integration into kiosk frames and enclosures. The compact, slim design and narrow outside dimensions make it ideal for OEMs and systems integrators building custom solutions.
What is the display resolution and aspect ratio of the Elo 2094L?
The Elo 2094L delivers 1920 x 1080 resolution with a 16:9 aspect ratio and supports 16.7 million colors for vibrant, clear imagery. With 225 nits typical brightness and a 3000:1 contrast ratio, it provides excellent visibility across commercial and industrial applications.
What warranty and compliance certifications does the Elo 2094L include?
The Elo 2094L comes with a 3-year warranty and meets global environmental and safety standards including RoHS, China RoHS, and WEEE compliance. We offer this touchscreen as a complete, ready-to-deploy solution with all necessary cables and mounting hardware included.
The Elo E331214 Touchscreen is also known as
ELO-E331214
or E331214.
Full specifications (PDF)
