Elo E012584 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

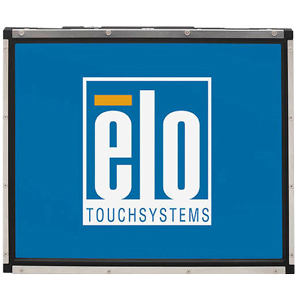

Elo 1739L - 3000 Series 1739L 17 inch LCD Rear-Mount Touchmonitor (IntelliTouch Touch Technology, Dual Serial/USB Interface and Anti-glare Surface Treatment). Requires power supply (Part# E348315), not included. See accessories.
17" Flat Panel Vertical Mount Touch Monitor in Steel

The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1739L
  • Product Name: 1739L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 12"
  • Width: 14.5"
  • Depth: 1.9"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 8.80 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Power Description

  • Operating Power Consumption: 30 W
  • Input Voltage: 12 V DC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 1739L
Screen Size 17
Display Type LCD
Touch Technology Surface Wave
Form Factor Rear Mount
Color Black
Interface USB & Serial/RS-232
