Elo E001124 Touchscreen

Elo E001122 Touchscreen A newer version of this item is available.
It is replaced by the Elo E001122 Touchscreen.

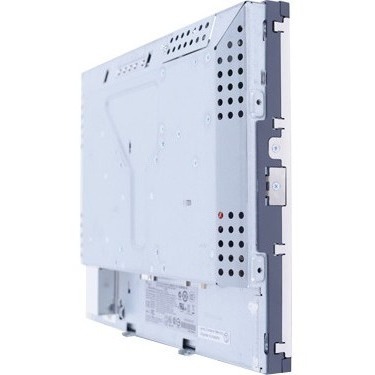

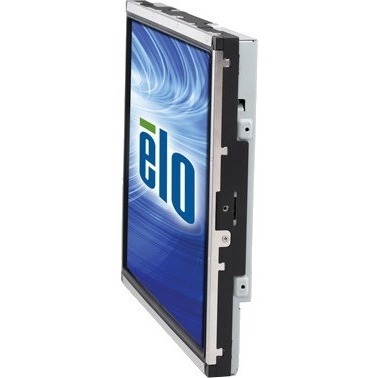

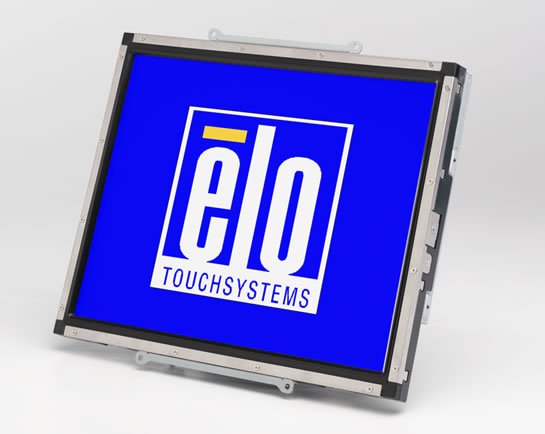

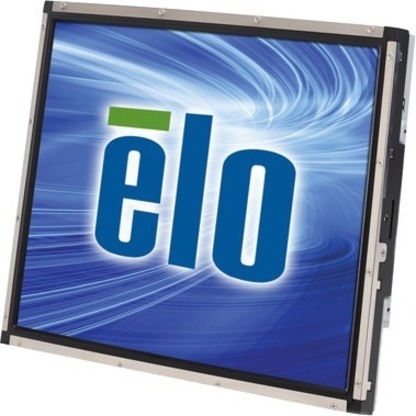

Elo 1537L - Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - IntelliTouch Surface Wave - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Steel, Black - China RoHS, WEEE, TÜV Rheinland - 3 Year
  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More

Need a different version? See all Elo 1537L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E001124 Touchscreen
Elo E001124 Touchscreen Elo E001124 Touchscreen Elo E001124 Touchscreen Elo E001124 Touchscreen Elo E001124 Touchscreen
Elo E001124 Touchscreen
Elo E001124 Touchscreen
Elo E001124 Touchscreen
Elo E001124 Touchscreen
Elo E001124 Touchscreen
Full specifications (PDF)
Elo 1537L Touchscreen Model Overview
The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.
Elo E001124 Touchscreen Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded minibezel with virtually invisible water-resistant seal and choice of touch technology.
Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Aspect Ratio:
4:3
Mount Type:
  • Rear Mount
  • Front Mount
  • Rack-mountable
  • Flush Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
20 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
  • Steel
  • Black
Height:
10.4"
Width:
13.2"
Depth:
1.6"
Weight (Approximate):
5.70 lb
Miscellaneous
Package Contents:
  • 1537L 15-inch Open-Frame Touchmonitor
  • Touch/ Video Cables
  • 2 x Mounting Brackets
Certifications & Standards:
  • TÜV Rheinland
    • Environmentally Friendly:
    Yes
    Environmental Certification:
    • China RoHS
    • WEEE
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0834619002519
    UPC: 834619002519
    EAN: 0834619002519
    UNSPSC: 43211903
