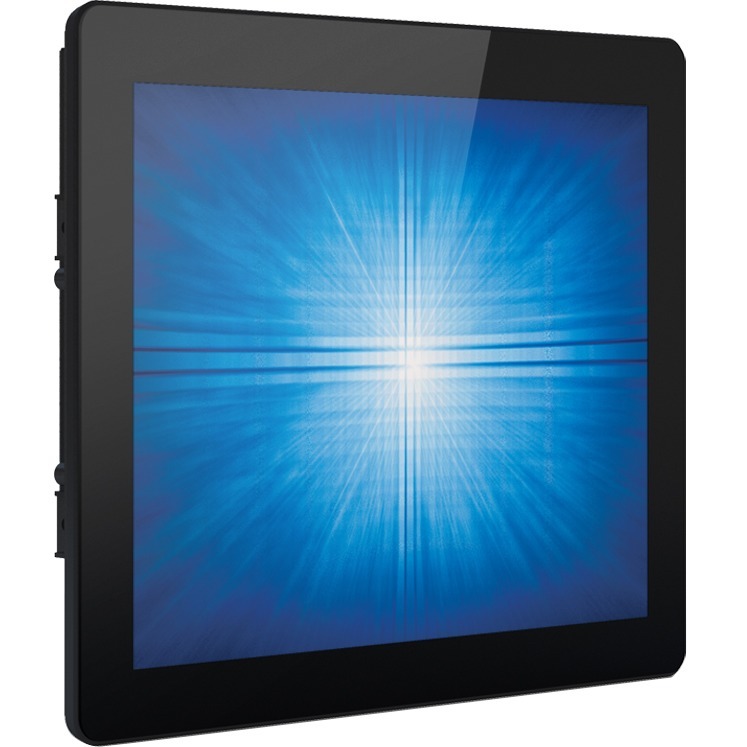

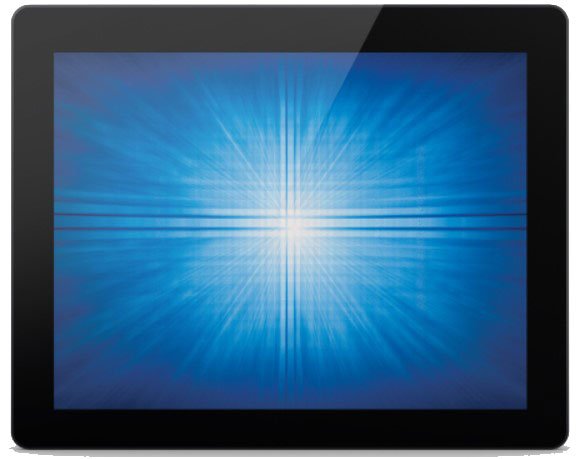

The Elo 1590L 15-inch Open-Frame Touch Display is engineered with advanced touch technology and designed to deliver exceptional reliability for various applications including kiosks, retail self-service, and industrial automation. With a sleek design and energy-efficient LED backlight, this touch display not only enhances usability but also minimizes power consumption. Featuring a choice of industry-leading touch technologies, this display ensures precise, drift-free operation, making it an ideal solution for demanding environments. Backed by a three-year warranty, the Elo 1590L is a perfect blend of performance and value.
Key features
Choice of Elo touch technologies: IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, or Projected Capacitive (PCAP).
Zero-bezel design for a seamless look and enhanced touch durability.
Power Consumption: 16W (ON), 1.2W (SLEEP), 0.5W (OFF)
Weight: Unpackaged: 6.4 lbs (2.9 kg)
Warranty: 3 years standard
Elo E334335 Touchscreen Overview

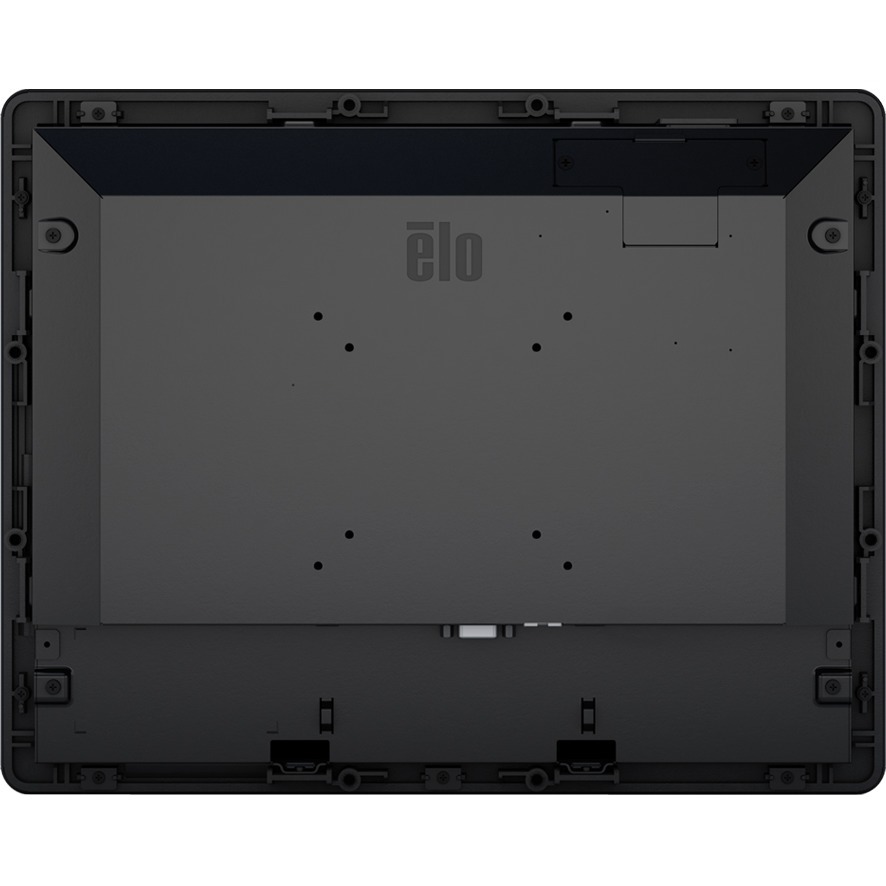

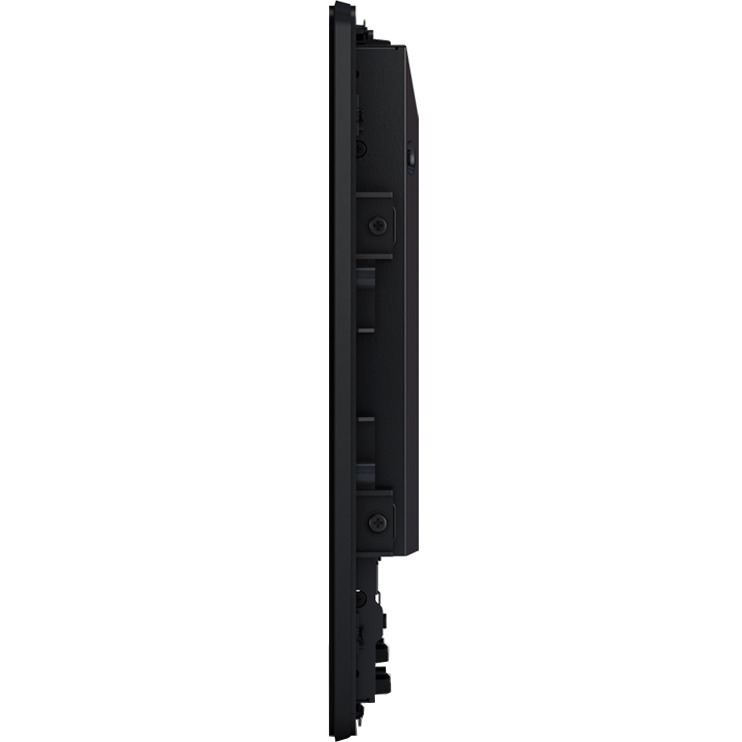

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
Display Port and VGA video interfaces
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
What size and aspect ratio is the Elo 1590L touchscreen?
The Elo 1590L is a 15-inch open-frame LCD touchscreen with a 4:3 aspect ratio and 1024 x 768 resolution. This compact size makes it ideal for kiosk installations and space-constrained industrial automation environments where a standard 16:9 display may not fit your application requirements.
What touch technology does the Elo E334335 use?
The Elo 1590L features projected capacitive 10-touch technology, which delivers accurate, drift-free touch responses and supports multi-touch gestures. This proven Elo touch technology provides reliable performance across commercial kiosk, retail self-service, and industrial automation applications.
What video and connectivity options are available on this touchscreen?
The Elo 1590L offers multiple video interfaces including HDMI, VGA, and DisplayPort, along with a USB touch controller interface. This versatile connectivity allows seamless integration with various systems and OEM platforms, and we include HDMI and VGA cables with your purchase.
Is the Elo 1590L suitable for outdoor or high-brightness environments?
The Elo 1590L features 270 nits brightness (typical) with LED backlight technology, making it suitable for well-lit indoor environments such as retail and gaming applications. For outdoor or extremely bright industrial settings, you may need to evaluate higher-brightness alternatives—contact us today to discuss your specific lighting requirements.
What makes the Elo 1590L energy-efficient compared to older displays?
The Elo 1590L uses state-of-the-art, energy-saving LED backlight technology that consumes less electricity and generates less heat than traditional backlighting. This slim, compact design reduces power consumption while maintaining vivid image quality with 16.2 million colors and a 700:1 contrast ratio.
What warranty and support does the Elo 1590L include?
The Elo 1590L comes with a 3-year warranty and is backed by Elo's proven expertise in touchscreen reliability. We offer this industrial-grade solution for OEMs and systems integrators, and our team is available to assist with installation, compatibility questions, or warranty support—visit barcodesinc.com or contact us today.
The Elo E334335 Touchscreen is also known as
ELO-E334335
or E334335.
