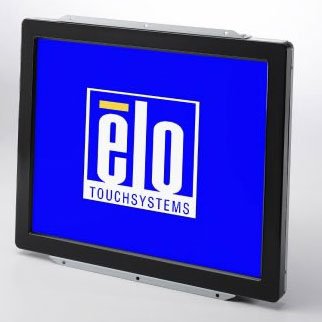

Elo C71685-000 Touchscreen

Elo E995475 Touchscreen A newer version of this item is available.
It is replaced by the Elo E995475 Touchscreen.
Elo Entuitive 1947L - Elo 1947L 19" LCD Touchscreen Monitor - 5:4 - 25 ms - 19" Class - Surface Acoustic Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - DVI - USB - VGA - Black
  • Experience an energetic display of colors, contrast and pictures with the sxga lcd touchscreen monitor
  • The SAW touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability by using clear glass that keeps on working regardless of the possibility of scratches
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 300 Nit brightness
Read More

Need a different version? See all Elo Entuitive 1947L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo C71685-000 Touchscreen
Elo C71685-000 Touchscreen Elo C71685-000 Touchscreen
Elo C71685-000 Touchscreen
Elo C71685-000 Touchscreen
Full specifications (PDF)
Elo Entuitive 1947L Touchscreen Model Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Elo C71685-000 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1947L features a wide viewing angle panel, a choice of touch technologies and mounting options, along with a unique, injection-molded mini bezel and virtually invisible watertight seal.

Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
25 ms
Aspect Ratio:
5:4
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
700:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Physical Characteristics
Product Color:
Black
Height:
14.2"
Width:
17.1"
Depth:
2.2"
Weight (Approximate):
21 lb
Miscellaneous
Additional Information:
  • Multilingual remote on-screen display (OSD)
  • External power supply
Platform Supported:
  • PC
  • Mac
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo C71685-000 Touchscreen is also known as ELO-C71685 or C71685000.
