Elo 736650-001 Touchscreen

Elo E016033 Touchscreen A newer version of this item is available.
It is replaced by the Elo E016033 Touchscreen.

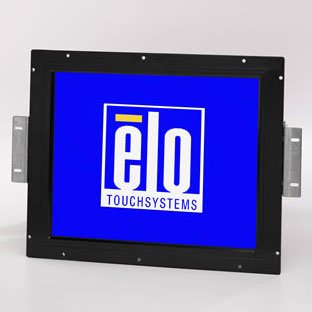

Elo Entuitive 1747L - Elo 3000 Series 1747L Rear-Mount Touchscreen Monitor - 17" - Surface Acoustic Wave - Black
  • The SAW touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability by using clear glass that keeps on working regardless of the possibility of scratches
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 260 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More

Need a different version? See all Elo Entuitive 1747L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo 736650-001 Touchscreen
Elo 736650-001 Touchscreen Elo 736650-001 Touchscreen
Elo 736650-001 Touchscreen
Elo 736650-001 Touchscreen
Full specifications (PDF)
Elo Entuitive 1747L Touchscreen Model Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Elo 736650-001 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded mini bezel and watertight seal, plus a multitude of mounting options.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
25 ms
Aspect Ratio:
5:4
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
450:1
Brightness:
260 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
240 V AC
Physical Characteristics
Color:
Black
Height:
13.4"
Width:
16.4"
Depth:
2.6"
Weight (Approximate):
15.06 lb
Miscellaneous
Package Contents:
  • 3000 Series 1747L Rear-Mount Touchscreen Monitor
  • North American power cable
  • European power cable
  • Detachable touch cable
  • Video cable
  • Mounting brackets
Certifications & Standards:
  • UL
  • cUL
  • FCC
  • IC
  • CE
  • TÜV-GS
  • VCC
  • C-Tick
Platform Supported:
  • PC
  • Mac
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo 736650-001 Touchscreen is also known as ELO-736650 or 736650001.
