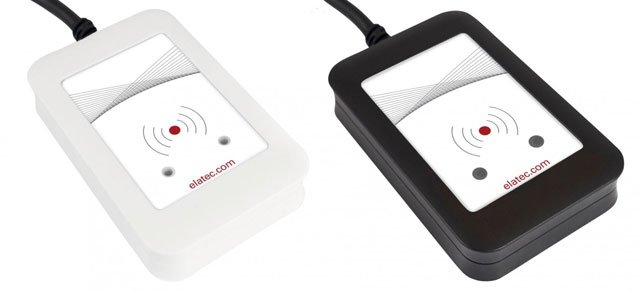

Elatec T4FK-FBFRLM7-PI RFID Reader

The TWN4 USB Front Reader by ELATEC is a compact and versatile RFID reader/writer designed for seamless integration with various applications. Offering multi-frequency support for 125 kHz, 13.56 MHz, NFC, and Bluetooth Low Energy, this reader ensures compatibility with an extensive range of transponders. Its patented 360° rotatable USB connector and optional USB hub provide flexibility in mounting and connectivity. With powerful SDK capabilities, firmware updates, and secure data communication via AES128 encryption, the TWN4 is ideal for diverse uses, including print solutions, POS systems, and access control.
Key features:

• Multi-frequency RFID reader/writer supporting 125 kHz, and Bluetooth Low Energy
• Patented USB connector with 360° mounting capability
• Encrypted communication (AES128) for secure data exchange
• Firmware update in the field and custom inlay options available
• Powerful SDK for developing applications directly on the reader

Specifications:

• Frequency: 125 kHz (LF), 13.56 MHz (HF), 2.4 GHz (BLE)
• Dimensions: 60 mm x 39 mm x 16.5 mm
• Operating Temperature: 0 °C to +65 °C
• Power Supply: 4.3 V - 5.5 V via USB
• Current Consumption: 250 mA (typical)
• Weight: Approx. 22 g
• Supported Transponders: ISO14443A/B, ISO15693, ISO18092 (NFC)
• OS Support: Windows, Linux, Android, iOS, Mac OS X
• Certification: CE, FCC, IC, RoHS compliant
