Digi 70001362

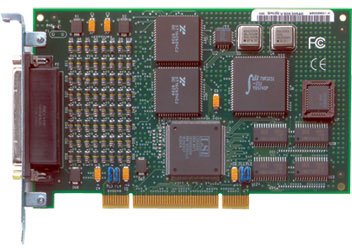

Digi AccelePort Xr 920 - Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, DB-25M Cable, Up to 921.6 Kbps throughput, 16C554 Quad UARTS, Single DB-78F connector on board, DB-25 fan-out cables (DTE or DCE, male or female), DB-9 fan-out cables (DTE, male or female), DB-25 connector box with 4-foot connector cable (DTE or DCE), RJ45 connector attachment, 20 kV surge protection on all pins, Slave design
RISC-based processor for offloading CPU communication bottlenecks

One of the industry's best-known multi-port serial I/O cards, Digi's AccelePort Xr 920 is designed for use in multi-user and remote Access Service (RAS) applications. It supports RS-232 serial communications, multi-strike surge protection on each and every pin, 32-bit IDT RISC processor, up to 921.6 Kbps throughput, software configurable bus port and a wide range of accessories, such as fan-out cables and external I/O connector boxes. CPU utilization is optimized by efficiently handling serial I/O communication interrupts, character processing and data transfers. This is an ideal solution in retail/ point-of-sale, hospitality (restaurants/hotels), data collection and remote access applications.

General Information

  • Product Type: Multiport Serial Adapter
  • Product Series: 8R
  • Brand Name: Digi
  • Manufacturer: Digi International
  • Product Model: 920
  • Product Name: 8r 920 Multiport Serial Adapter

Technical Information

  • Data Transfer Rate: Up to 115.20 Kbps
  • Host Interface: PCI
  • Protocols: EIA-232
  • UART Type: 16C654 Quad

Physical Characteristics

  • Height: 4.2"
  • Width: 6.9"
  • Form Factor: Plug-in Card
  • Dimensions: 4.2" Height x 0.5" Width x 6.9" Depth
  • Thickness: 500 mil

Interfaces/Ports

  • Ports Expandability: 8 x 25-pin DB-25 Male - Serial, Via Cable

Other

  • Cable Information: DB-25 Male Fan-out Cable
  • Package Contents:
    • 8r 920 Multiport Serial Adapter
    • DB-25M fan-out cable
    • 8r 920 Multiport Serial Adapter
    • DB-25M fan-out cable
  • Certifications & Standards:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN55022
    • Class B
    • EN50082-2
    • VCCI Class B
    • EN60950
    • CSA 22.2 No. 950
    • UL 1950
  • Compatibility: OPERATING SYSTEMS:<br> - Microsoft Windows .NET Server 2003<br> - Microsoft Windows XP, 2000, NT<br> - Microsoft Windows 95/98/Me<br> - Solaris SPARC and Intel<br> - Novell NetWare<br> - HP-UX<br> - Linux<br> - OpenVMS<br> - OS/2<br> - QNX<br> - SCO OpenServer<br> - SCO UnixWare<br> - Tru64<br><br> Most drivers ship with product on CD-ROM.<br> Drivers and driver updates also available on our Web-site at www.digi.com/drivers.
  • Additional Information:
    • PCI 2.2 and 2.3 compatible
    • Full modem control and hardware and software flow control
    • Heavy-duty surge protection on all pins for superior reliability
    • Universal PCI bus slot supports 3.3V and 5V
    • RISC-based processor enhances overall system throughput by offloading CPU of communication bottlenecks
    • Hardware/software handshaking support
    • Software configurable bus support<br>
    • ENVIRONMENTAL:<br> - Air Movement: 30 CFM forced

Power Description

  • Input Current:
    • 1 A @ 5 V DC
    • 10 mA @ 12 V DC
  • Input Voltage:
    • 5 V DC 5%
    • 12 V AC 5%
    • -12 V DC 5%

Environmental Conditions

  • Altitude: 0 ft to 12000 ft
  • Humidity: 5 to 90% Non-condensing Relative Humidity Operating
  • Temperature:
    • 50°F (10°C) to 131°F (55°C) Operating
    • -13°F (-25°C) to 185°F (85°C) Storage

Warranty

  • Limited Warranty: 5 Year

Processor & Chipset

  • Processor: 1 x IDT 32-bit RISC On-board

Full specifications (PDF)



The Digi 70001362 is also known as DIG-70001362 .
