Datamax-O'Neil E-4205e – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: JA2-00-1J000B00
Model: E-4205e
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal-Thermal Transfer printing, 203 dpi, 4.25" print width, 5"/sec print speed, USB interface. Color: White
Explore all Datamax-O'Neil E-4205e Barcode Label Printers
Add to Quote
Datamax-O'Neil JA2-00-1J000B00 Barcode Label Printer
Datamax-O'Neil JA2-00-1J000B00 Barcode Label Printer
Datamax-O'Neil JA2-00-1J000B00 Barcode Label Printer Datamax-O'Neil JA2-00-1J000B00 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4205e Barcode Label Printer Model Overview

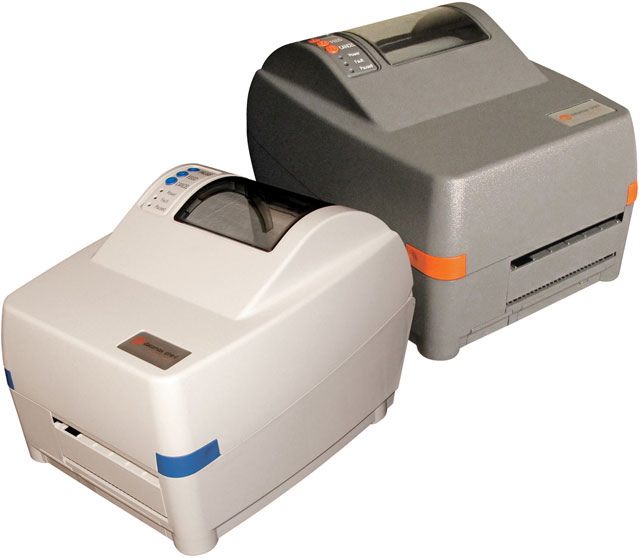

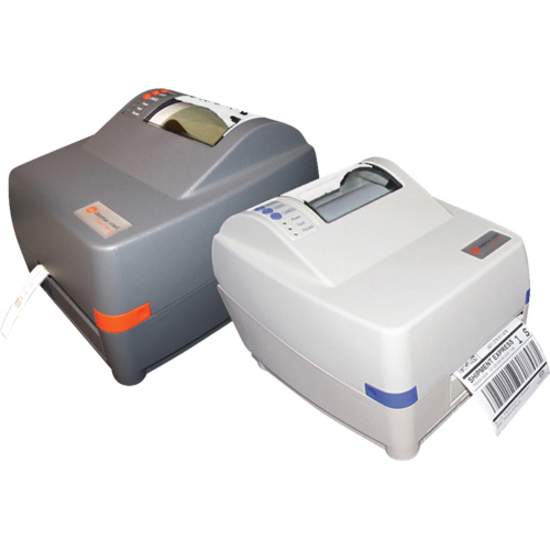

The Datamax-O-Neil E-4205e E-Class Mark II thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. The E-4205e features a 4.25" print width, a print speed of 5"/second and a resolution of 203 dpi. It is ideal for a vast number of diverse applications that require a dependable and cost effective barcode printer. The Datamax-O-Neil E-4205e has a uniquely designed adjustable print mechanism with advanced media sensing.
Datamax-O'Neil JA2-00-1J000B00 Barcode Label Printer Overview

The newest generation of Datamax-O'Neil's E-Class entry-level desktop printer is designated the E-Class Mark II. These new E-Class models take this very popular printer to a significantly higher level of performance, print quality and reliability to meet the broadest range of vertical application requirements. The compact E-Class Mark II E-4205e incorporates a state-of-the-art processor which provides the fastest label generation and print speed of any printer in its class and a throughput that is nearly 70% faster than previous E-Class models.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.30"
Label Core Size:
1"
Ribbon Core Size:
0.50"
Physical Characteristics
Color Family:
White
Product Color:
White
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Additional Information:
  • 3-button, 3-LED Control Panel
  • Easy Access Cantilevered Printhead
  • Clear See-Through Media Window
  • Flash Upgradeable Firmware
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
