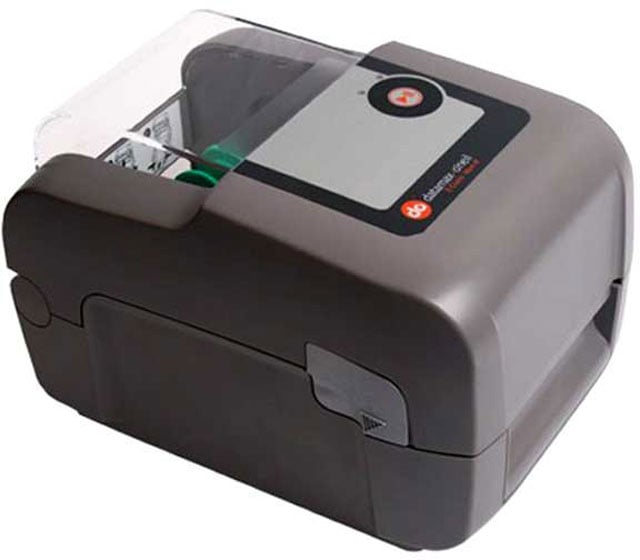

Datamax-O'Neil E-4204B – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: EB2-00-1J000B00
Model: E-4204B
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct thermal/thermal transfer, Serial and USB interfaces, 203 dpi, 4.25" print width, 4"/sec print speed, 16MB DRAM/64MB Flash, DPL, tear bar, LED/Button UI, US power cord.

Honeywell E-4204B Barcode Label Printer Model Overview

The Datamax-O'Neil E-Class Mark III: E-4204B Printer is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective Datamax-O'Neil E-Class Mark III: E-4204B Printer features a 4 inches/sec speed and 4.25 print width plus a choice of USB and Serial interfaces. The Datamax-O'Neil E-Class Mark III: E-4204B Printer's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.
Datamax-O'Neil EB2-00-1J000B00 Barcode Label Printer Overview

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • TLC 39
  • Micro PDF-417
Application/Usage:
Desktop
Features:
Tear Bar
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LED
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Tag
  • Perforated Label
  • Gap
  • Black Bar
  • Notch
Media Sensor:
Adjustable Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • DPL
  • PLB
  • PLE
  • PLI
  • PLZ
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.25 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017493947
UPC: 682017493947
EAN: 0682017493947
UNSPSC: 43212108

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (3)
  • Honeywell Thermal Printhead (1)
  • Power Device (1)
  • Printer Accessories (13)
  • Seagull Scientific Barcode Software (2)

Recommended Accessories for Model: Datamax-O'Neil EB2-00-1J000B00 Barcode Label Printer

Top Batteries Purchased With Datamax-O'Neil EB2-00-1J000B00

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil EB2-00-1J000B00

Top Honeywell Thermal Printhead Purchased With Datamax-O'Neil EB2-00-1J000B00

Top Power Device Purchased With Datamax-O'Neil EB2-00-1J000B00

Top Printer Accessories Purchased With Datamax-O'Neil EB2-00-1J000B00

  • Datamax-O'Neil 32-2300-01 Accessory
    Datamax-O'Neil 32-2300-01 Accessory
    Cable (9-Pin Serial) for the E-4203 and Ovation Printers. Required for host-printer communications.
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Honeywell DPO78-2394-01 Accessory
    Honeywell DPO78-2394-01 Accessory
    The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (inches per second). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
    In Stock
    $697.89
    Add to Quote
  • Honeywell 130063-hsm Accessory
    Honeywell 130063-hsm Accessory
    Power Supplies, Honeywell, Power Cord AC Outlet to Power Supply/Device, Straight, US Type A C13, 8.2ft
    In Stock
    $12.66
    Add to Quote
See All Printer Accessories for Datamax-O'Neil EB2-00-1J000B00 Barcode Label Printer >

Top Seagull Scientific Barcode Software Purchased With Datamax-O'Neil EB2-00-1J000B00

  • Seagull Software BTA-2 Software
    Seagull Software BTA-2 Software
    BarTender Automation: Application License + 2 Printers (includes Maintenance), Use (Part# BTA-PRT) To Add Additional Printers To License. Priced per printer with unlimited computers, not per computer with unlimited printers.
    Item on backorder — chat for lead time
    $1,415.00
    Add to Quote
  • Seagull Software BTP-1 Software
    Seagull Software BTP-1 Software
    BarTender Professional: Application License + 1 Printer (includes 1 Year of Standard Support & Maintenance), For additional printer license (Part# BTP-PRT). Priced per printer with unlimited computers, not per computer with unlimited printers. No Physical Box: Product code via Electronic Delivery.
    Item on backorder — chat for lead time
    $548.00
    Add to Quote

Frequently Asked Questions

The HP CE251A (504A) Original Toner Cartridge delivers a standard yield of 7,000 pages. This cyan cartridge is designed for HP LaserJet printers and provides reliable, consistent output for mid-volume printing environments. We offer this cartridge as a single-pack option for easy replacement.

Yes, the HP CE251A is a cyan toner cartridge designed for HP Color LaserJet Enterprise printers. As an original HP cartridge, it integrates seamlessly with compatible color LaserJet systems to deliver vibrant cyan color output. Contact us today to verify compatibility with your specific printer model.

The HP CE251A is an original laser toner cartridge with a standard yield of 7,000 pages in cyan color. It's supplied as a single pack and meets HP's original equipment specifications for quality and performance. Available from us for immediate deployment in your printing infrastructure.

The HP CE251A is a standard-yield cartridge, whereas HP also manufactures high-yield alternatives that deliver greater page counts per cartridge. High-yield options reduce replacement frequency and can lower cost-per-page in high-volume environments. Visit barcodesinc.com to compare standard and high-yield options for your specific needs.

The HP CE251A is an original HP cartridge engineered to deliver consistent, professional-quality cyan color output across HP Color LaserJet Enterprise printers. Original cartridges are designed to work with HP's ImageRet and ProRes print technologies for optimal color accuracy and fine-line reproduction. We offer genuine HP supplies to ensure the best results from your equipment.

The HP CE251A with its 7,000-page standard yield is best suited for moderate printing volumes. For environments with higher monthly page demands, HP offers high-yield cartridge alternatives that provide greater capacity between replacements. Contact us today to discuss the right supply solution for your warehouse or logistics operation's printing requirements.

The Datamax-O'Neil EB2-00-1J000B00 Barcode Label Printer is also known as DMX-E4204BTTDT or EB2-00-1J000B00.
