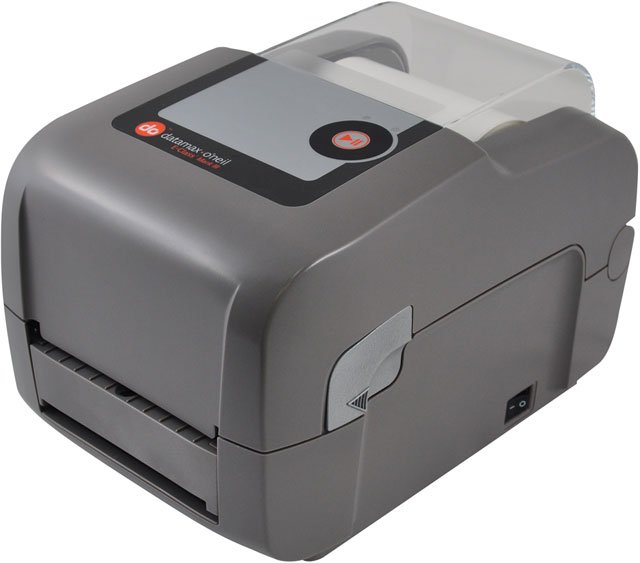

Datamax-O'Neil E-4205A – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: EA2-00-1J005A01
Model: E-4205A
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Desktop Printer/Thermal Transfer, Direct Thermal, Serial/Parallel/USB/Ethernet, 203dpi, 5ips, 64MB Flash/16MB Dram, Dpl, Pl-Z, Pl-E, Adjustable Media Sensor, Tear Edge, Media Guide Chute
Explore all Datamax-O'Neil E-4205A Barcode Label Printers
Add to Quote
Datamax-O'Neil EA2-00-1J005A01 Barcode Label Printer
Datamax-O'Neil EA2-00-1J005A01 Barcode Label Printer
Datamax-O'Neil EA2-00-1J005A01 Barcode Label Printer Datamax-O'Neil EA2-00-1J005A01 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4205A Barcode Label Printer Model Overview

The Datamax-O'Neil E-Class Mark III: E-4205A Printer is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective Datamax-O'Neil E-Class Mark III: E-4205A Printer features a 5 inches/sec speed and 4.25 print width plus a choice of USB, Serial, Parallel and Ethernet interfaces. The Datamax-O'Neil E-Class Mark III: E-4205A Printer's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.
Datamax-O'Neil EA2-00-1J005A01 Barcode Label Printer Overview

3 Dimensions of Value

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.

We've made the E-Class Mark III thermal barcode printer easy to use with quick loading media and an interactive LCD screen. Users will also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III's larger media and ribbon roll capacity. The E-Class Mark III is one of the best values on the market. It is competitively priced with a proven design and reliable performance that will continue to operate long after other barcode printers have failed.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • Micro PDF-417
  • HIBCC
  • EAN/JAN-13
  • EAN/JAN-8
  • TLC 39
Application/Usage:
Desktop
Features:
  • Mirror Printing
  • Rotate Printing
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Gap
  • Notch
  • Black Bar
  • Fanfold
  • Continuous Form
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Label Taken Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Label Core Size:
1.50"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • DPL
  • PLB
  • PLE
  • PLI
  • PLZ
  • EPL
  • ZPL
Power Description
Power Source:
  • Battery
  • Power Adapter
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.25 lb
Miscellaneous
Platform Supported:
PC
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
