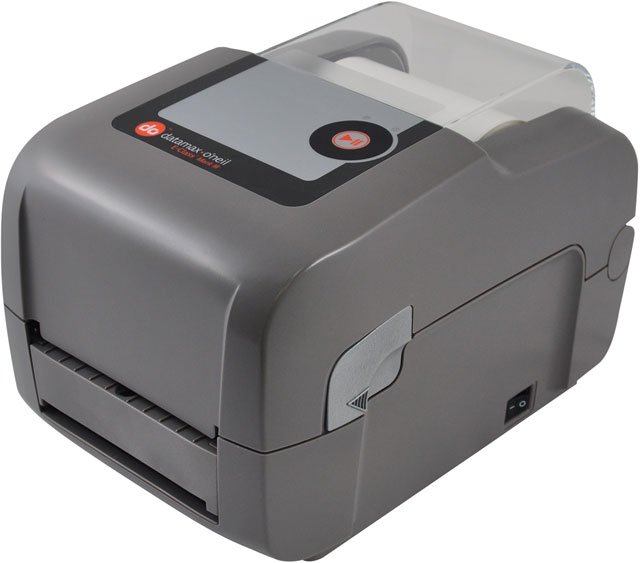

Datamax-O'Neil EA2-00-1J000A00 Barcode Printer


4.0

(2 reviews)

Datamax-O'Neil E-4205A - Thermal transfer, Serial, Parallel, USB and Ethernet interfaces, 203 dpi, 4.25" print width, 5"/sec print speed, 16MB DRAM/64MB Flash, DPL, adjustable media sensor, tear bar, LED/Button UI, US power cord.
Able to print thermal labels, tags, wristbands, tickets, receipt paper in rolls or fanfolded packaging

The Datamax-O-Neil E-4205A is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4205A features a 5 inches/sec speed and 4.25 print width plus a choice of USB, Serial, Parallel and Ethernet interfaces. The Datamax-O-Neil E-4205A's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Tear Bar
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • PDF-417
    • QR Code
    • Data Matrix
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4205A
  • Product Name: E-Class Mark III E-4205A Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Tag
    • Perforated Label
    • Gap
    • Black Bar
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLB
    • PLE
    • PLI
    • PLZ

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LED

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4205A
Print Speed 5
Interface Options Parallel, Serial, Ethernet, USB
Max Label Width 4.30, 4.40
Label Core 1 inch
Print Method Thermal Transfer
Maximum Print Width 4.25
Printer Type Desktop
Max Roll Outer Diameter 5
Print Resolution 203 dpi
Printer Mobility Not Mobile
Ribbon Core 0.5, 1


Customer Review Summary


4.0

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


3.0

Reliable, but clunky software

By Dave Maurer

from Cleveland, OH

4/5/2013

Verified Buyer

Pros

  • Easy to use
  • Inexpensive

Cons

  • clunky software

Best Uses

Comments about Datamax-O'Neil E-4205A EA2-00-1J000A00:

We use this printer for small-scale production tagging of products. We like how simple an reliable it is, and the low cost, but the software is very limited. You must reload the list of products to be printed and rename the list to a single file name each time you print, which makes it impossible to use more than one list of products to print.


5.0

Great tag printer!

By Brenda the Jeweler

from Jacksonville, FL

11/28/2012

Pros

  • Reasonably Priced Unit
  • prints quickly

Cons

Best Uses

  • Business Tag Printing

Comments about Datamax-O'Neil E-4205A EA2-00-1J000A00:

I use the printer to print jewelry price tags.

Displaying reviews 1-2

Back to top

Recommended Accessories for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
External Rewinder, up to 4.5 inch label width. Replacement for (Part# 78-2391-01)
In Stock: Ships Same Day
$427.80
+ Add to Quote
Datamax-O'Neil (OPT78-2907-01)
E-CLASS MARK III BATTERY PACK MOBILE POWER UNIT
In Stock: Ships Same Day
$480.90
+ Add to Quote
Datamax-O'Neil (DPO32-2300-01)
Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.
In Stock: Ships Same Day
$38.30
+ Add to Quote
Datamax-O'Neil Platen Roller Assembly (ROL78-2867-01)
KIT E-CLASS MARK III
In Stock: Ships Same Day
$31.20
+ Add to Quote
Datamax-O'Neil (OPT78-2872-01)
External media supply (10" diameter max roll)
In Stock: Ships Same Day
$78.00
+ Add to Quote
Recommended Labels for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil Label (350931)
3.5" x 1" Direct thermal paper label. 1,375 labels/roll, 8 roll case.
In Stock: Ships Same Day
$119.40
+ Add to Quote
Datamax-O'Neil Label (350924)
4" x 2" Direct thermal paper label. 800 labels/roll, 8 roll case. Also available as a single roll (Part# 350924-R).
In Stock: Ships Same Day
$122.70
+ Add to Quote
Datamax-O'Neil Label (350967)
2" x 1" Direct thermal paper label. 1,375 labels/roll, 16 roll case.
In Stock: Ships Same Day
$153.70
+ Add to Quote
Datamax-O'Neil Duratran II (451984)
4" x 2.875" Thermal transfer kim-syn label. 400 labels/roll, 8 roll case.
In Stock: Ships Same Day
$140.00
+ Add to Quote
Datamax-O'Neil Label (350985)
4" x 3" Direct thermal paper label. 500 labels/roll, 8 roll case.
In Stock: Ships Same Day
$99.20
+ Add to Quote
Recommended Ribbons for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil IQWax+ (IQWAX+-110300)
4.33" x 984' Black Wax Ribbon. 1" core size. Compatible with E-Class Mark III Printers. 6 ribbon case. Used with paper labels. Also available as a single roll (Part# IQWAX+-110300-R).
In Stock: Ships Same Day
$75.40
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-89300)
3.5" x 984' Black Resin Ribbon. Case of 24 ribbon rolls. Used with polyester labels.
Ships in 3-5 Days
$1,604.50
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-64300)
2.5" x 984" RESIN RIBBON 48 ribbon case. Also available as a single roll (Part# IQRES-64300-R).
Ships in 3-5 Days
$1,172.00
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-110300)
IQRES RESIN RIBBON, 4.33" x 984', 1" CORE, 48 rolls/case. Also available as a single roll (Part# IQRES-110300-R).
Ships in 3-5 Days
$2,094.70
+ Add to Quote
Datamax-O'Neil IQRes+ (IQRES+-64300)
2.5" x 984' Black Resin Ribbon. Compatible with E-Class Mark III Printers. Case of 6 ribbon rolls. Used with polyester labels. Also available as a single roll (Part# IQRES+-64300-R).
Ships in 3-5 Days
$232.90
+ Add to Quote
Recommended Printheads for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil E-Class Mark II & III (PHD20-2267-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model E-Class Mark II & III
In Stock: Ships Same Day
$90.20
+ Add to Quote

The Datamax-O'Neil EA2-00-1J000A00 is also known as DMX-E4205ATTDTSPUL or EA2001J000A00 .
