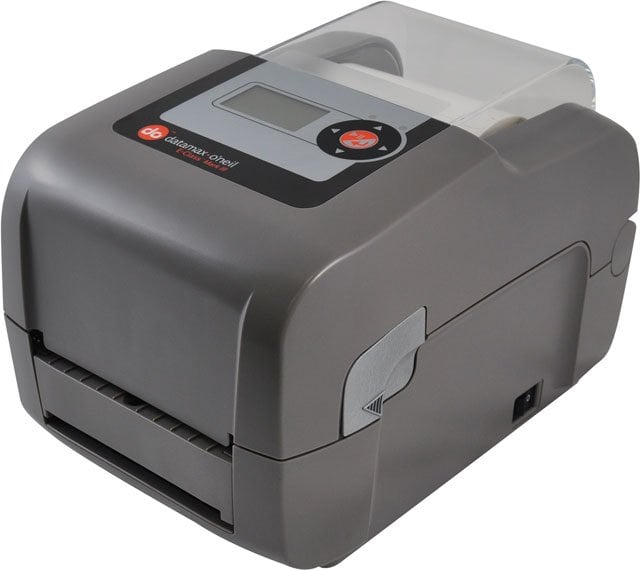

Datamax-O'Neil EA2-00-0J000A01 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil E-4205A - DT 203 dpi DPL FAN FOLD GUIDE
Able to print thermal labels, tags, wristbands, tickets, receipt paper in rolls or fanfolded packaging

The Datamax-O-Neil E-4205A is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4205A features a 5 inches/sec speed and 4.25 print width plus a choice of USB, Serial, Parallel and Ethernet interfaces. The Datamax-O-Neil E-4205A's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Tear Bar
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • TLC 39
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • UPC 2 and 5 Digit Addendums
    • GS1 DataBar
    • Micro PDF-417
    • TCIF

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4205A
  • Product Name: E-Class E-4205A Mark III Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 24"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Tag
    • Gap
    • Notch
    • Black Bar
    • Perforated Label
    • Shipping Label
    • Wristband
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Label Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLZ
    • PLI
    • PLB
    • PLE
    • DPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Power Source: AC Supply

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4205A
Interface Options Serial, Parallel, Ethernet, USB
Maximum Print Width 4.25
Printer Type Desktop
Print Speed 5
Label Core 1 inch
Print Method Direct Thermal
Max Label Width 4.40
Print Resolution 203 dpi
Max Roll Outer Diameter 5
Printer Mobility Not Mobile


Customer Review Summary

Recommended Accessories for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
External Rewinder, up to 4.5 inch label width. Replacement for (Part# 78-2391-01)
In Stock: Ships Same Day
$470.60
+ Add to Quote
Datamax-O'Neil (OPT78-2907-01)
E-CLASS MARK III BATTERY PACK MOBILE POWER UNIT
In Stock: Ships Same Day
$480.90
+ Add to Quote
Datamax-O'Neil Platen Roller Assembly (ROL78-2867-01)
KIT E-CLASS MARK III
In Stock: Ships Same Day
$31.20
+ Add to Quote
Datamax-O'Neil (DPO32-2300-01)
Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.
In Stock: Ships Same Day
$42.10
+ Add to Quote
Datamax-O'Neil (OPT78-2872-01)
External media supply (10" diameter max roll)
In Stock: Ships Same Day
$78.00
+ Add to Quote
Recommended Labels for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil Label (350977)
1.5" x 1" Direct thermal paper label. 1375 labels/roll, 16 roll case. Also available as a single roll (Part# 350977-R).
In Stock: Ships Same Day
$132.80
+ Add to Quote
Datamax-O'Neil Duratran II (451984)
4" x 2.875" Thermal transfer kim-syn label. 400 labels/roll, 8 roll case.
In Stock: Ships Same Day
$150.40
+ Add to Quote
Datamax-O'Neil Label (350924)
4" x 2" Direct thermal paper label. 800 labels/roll, 8 roll case. Also available as a single roll (Part# 350924-R).
In Stock: Ships Same Day
$131.90
+ Add to Quote
Datamax-O'Neil Label (350970)
4" x 6" Direct thermal paper label. 250 labels/roll, 8 roll case. Also available as a single roll (Part# 350970-R).
In Stock: Ships Same Day
$86.70
+ Add to Quote
Datamax-O'Neil Label (453084)
4" x 2.875" Thermal transfer polyester label. 500 labels/roll, 8 roll case.
In Stock: Ships Same Day
$372.80
+ Add to Quote
Recommended Ribbons for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil GPR Plus Premium Wax (226457)
4.33" x 360' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 24, Core Size: 0.5", Available as a single roll (226457-R)
In Stock: Ships Same Day
$234.20
+ Add to Quote
Datamax-O'Neil IQWax+ (IQWAX+-110300)
4.33" x 984' Black Wax Ribbon. 1" core size. Compatible with E-Class Mark III Printers. 6 ribbon case. Used with paper labels. Also available as a single roll (Part# IQWAX+-110300-R).
In Stock: Ships Same Day
$71.40
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-89300)
3.5" x 984' Black Resin Ribbon. Case of 24 ribbon rolls. Used with polyester labels.
Ships in 3-5 Days
$1,634.50
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-64300)
2.5" x 984" RESIN RIBBON 48 ribbon case. Also available as a single roll (Part# IQRES-64300-R).
Ships in 3-5 Days
$1,172.00
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-110300)
IQRES RESIN RIBBON, 4.33" x 984', 1" CORE, 48 rolls/case. Also available as a single roll (Part# IQRES-110300-R).
Ships in 3-5 Days
$2,094.70
+ Add to Quote
Recommended Printheads for Model: Datamax-O'Neil E-4205A Printer
Datamax-O'Neil E-Class Mark II & III (PHD20-2267-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model E-Class Mark II & III
In Stock: Ships Same Day
$109.00
+ Add to Quote

The Datamax-O'Neil EA2-00-0J000A01 is also known as DMX-E4205ADTFANFOLD or EA2000J000A01 .
