Datamax-O'Neil EA2-00-0J000A00 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

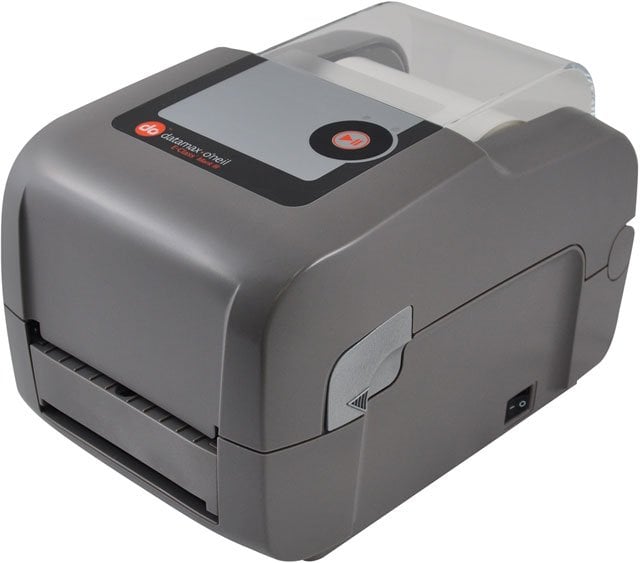

Datamax-O'Neil E-4205A - Direct thermal only, Serial, Parallel, USB and Ethernet interfaces, 203 dpi, 4.25" print width, 5"/sec print speed, 16MB DRAM/64MB Flash, DPL, adjustable media sensor, tear bar, LED/Button UI, US power cord.
Able to print thermal labels, tags, wristbands, tickets, receipt paper in rolls or fanfolded packaging

The Datamax-O-Neil E-4205A is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4205A features a 5 inches/sec speed and 4.25 print width plus a choice of USB, Serial, Parallel and Ethernet interfaces. The Datamax-O-Neil E-4205A's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Tear Bar
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • Micro PDF-417
    • K-Mart NON EDI
    • UPC 2 and 5 Digit Addendums
    • TLC 39

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4205A
  • Product Name: E-Class E-4205A Mark III Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Roll Fed
    • Tag
    • Perforated Label
    • Gap
    • Black Bar
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ
    • PLE
    • DPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LED

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4205A
Print Resolution 203 dpi
Print Speed 5
Interface Options Parallel, Ethernet, USB, Serial
Max Label Width 4.30, 4.40
Label Core 1 inch
Print Method Direct Thermal
Max Roll Outer Diameter 5
Maximum Print Width 4.25
Printer Type Desktop
Printer Mobility Not Mobile
Ribbon Core 1
