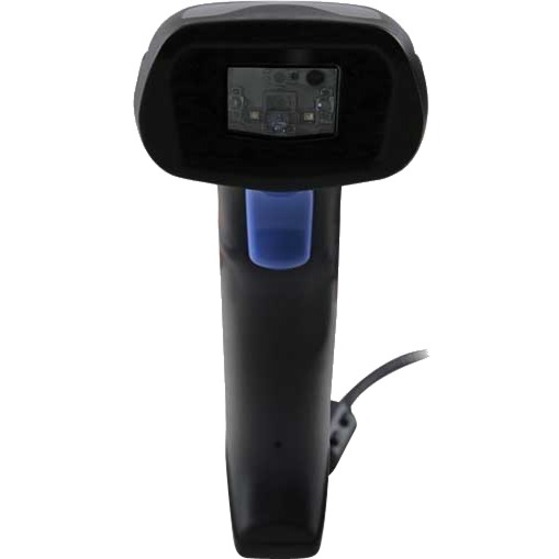

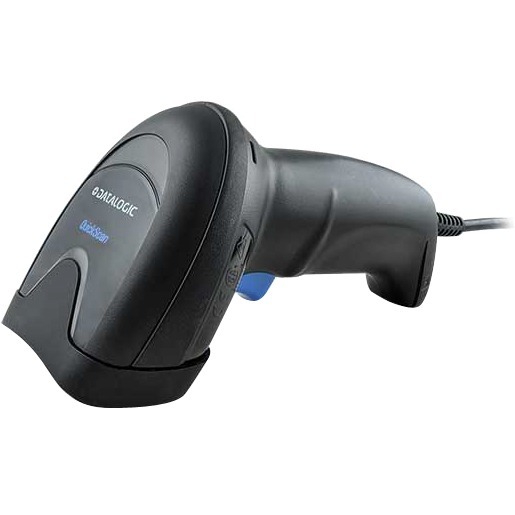

Datalogic QW2520-BKK1S Barcode Scanner

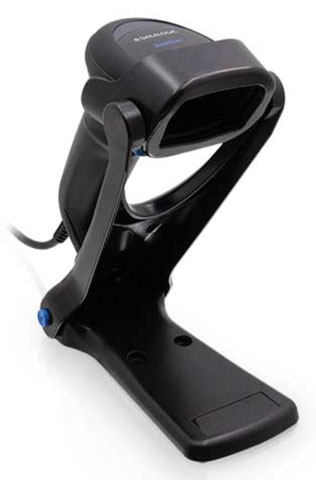

Datalogic QuickScan QW2520 - Corded Barcode Scanner, Datalogic QuickScan QW2520, 2D VGA Imager, General Purpose, Handheld, USB Interface, Black. Kit inc. QW2520-BK Scanner, USB Cable 90A052258, and Stand STD-QW25-BK)
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
$125.79
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $124.53 1% OFF
5 $122.02 3% OFF
Add to Quote

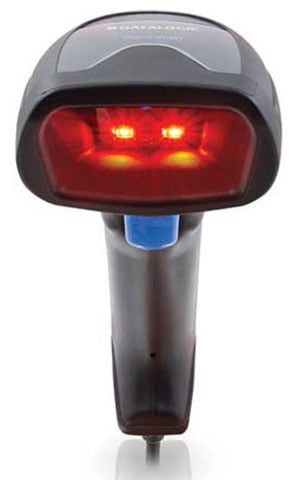

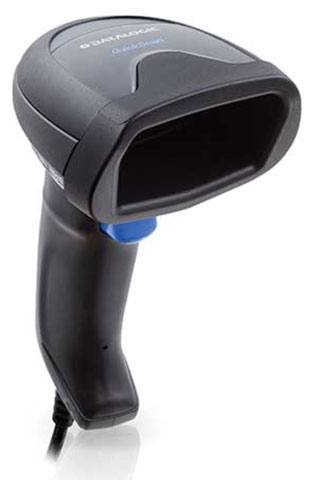

Datalogic QuickScan QW2500 Barcode Scanner Model Overview
The Datalogic QuickScan QW2500 is the simplest and most affordable model within the 2500 Series. It comes in the same rugged, durable IP52 rated housing as the QD2500 scanner. The only moving part is the trigger, which will comfortably give you a class-leading 10 million hits. It offers consistent, reliable reading of all standard barcodes. For applications requiring high efficiency and fast throughput, the Datalogic QW2500 represents one of the best value for money handheld scanners on the market today.
Datalogic QW2520-BKK1S Barcode Scanner Overview

Reliable, repeatable performance that you need

The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today's Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners.

Improve performance with user friendly feedback

When using the QuickScan 2500 imager, you want a low-cost device with top guaranteed scanning performance and a reliable read every time, period. You want an easy to aim device that gives clear audible, tactile and visual feedback on each read, good or bad. You want a device that sits comfortably in your hand and never gives you fatigue, no matter how long your working shift. The QuickScan 2500 imager does not fail, even when continually used for long periods of time and provides plenty of freedom of movement with high quality cables that are robust enough to withstand constant abuse. Any type of barcode - 1D, 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes - the QuickScan 2500 imager has you covered.

Connect, configure, use

As well as being the very affordable and easy to use handheld scanning solution for your business, the QuickScan 2500 imager is extremely easy to setup. It will give you the best fit for your store environment. The simple and seamless configuration of the scanner with connectivity to all manner of hosts, makes this the only solution you will need for your business. It is well built and will comfortably survive 5 ft drops and over 10 million trigger presses. The adjustable brightness of the light source makes it comfortable to suit most people's eyes. With Motionix technology, the imager is ready for action as soon as it is picked up. All in all, you have at your fingertips the perfect device for scanning all your goods.

Perform, perform, perform

The QuickScan 2500 imager boasts a very rich feature set for out-of-the-box capabilities. The 1 MP optics provide best-in-class scanning and depth of field for all your applications. No need to worry about scanning orientation as it is omnidirectional. It will seamlessly read codes displayed on smartphone screens, making promotions and coupons easy to manage. The imager is equipped with an easy to see aiming system that consists of two blue triangles, providing full guidance with extreme precision. This makes it easy for the staff to target the right code to read, and the patented Green Spot technology from Datalogic is clearly projected as a visual indicator upon each successful read.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D :
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot code

Postal Codes :

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes :

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking :

  • Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
20.10"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
30 in/s
Image Formats:
  • JPEG
  • BMP
  • TIFF
Maximum Ambient Light:
110000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
10 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.7 mil
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
5.11 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Retail
  • Commercial Service
  • Hospitality
  • Ticketing
  • Government
  • Healthcare
  • Light/Clean Manufacturing
  • Industrial
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QW2520-BKK1S Barcode Scanner is also known as DTL-QW2520BKK1S or QW2520BKK1S.
