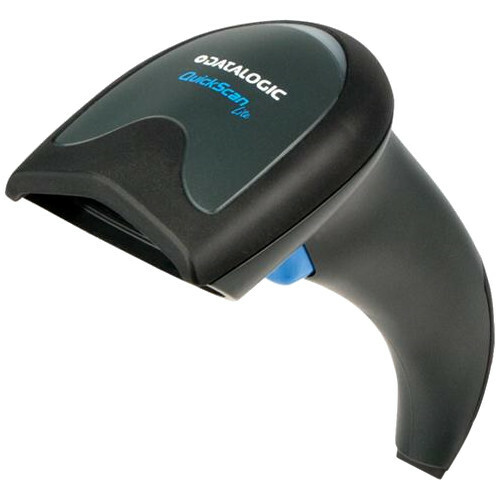

Datalogic QW2120-BKK11S Barcode Scanner

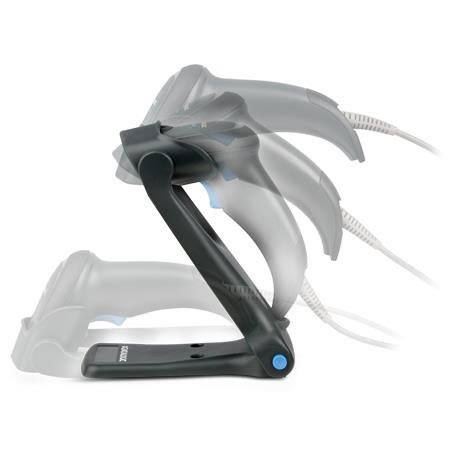

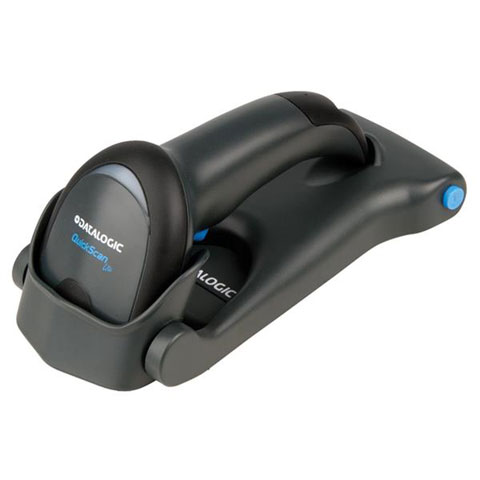

Datalogic QuickScan Lite QW2120 - Corded Barcode Scanner, Datalogic QuickScan Lite QW2120, 1D Linear Imager, General Purpose, Handheld, USB Interface with USB Cable (90A052043) and Stand (STD-QW20-BK), Black, 400 Scans/Second

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Scan barcodes with a staggering speed of 400 scan/s
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Wired connectivity makes this scanner ideal for retail and desktop applications

Need a different version? See all Datalogic QuickScan QW2100 Barcode Scanners

$159.15

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

Full specifications (PDF)

Datalogic QuickScan QW2100 Barcode Scanner Model Overview

The Datalogic QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments. The QW2100 offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is ideal for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line on the QW2100 is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

Datalogic QW2120-BKK11S Barcode Scanner Overview

The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

Postal Codes:

Australian Post
British Post
Canadian Post
China Post
Japanese Post
KIX Post
Korea Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional

Image Sensor Type:

Imager

Scan Rate:

400 scan/s

Maximum Scan Resolution:

4 mil

Depth of Field:

2.5cm - 15cm@5mil
0cm - [email protected]
10cm - 35cm@10mil
0cm - 40cm@13mil
0cm - 60cm@20mil

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black

Height:

6.7"

Width:

2.6"

Depth:

2.8"

Weight (Approximate):

4.20 oz

Miscellaneous

Additional Information:

USB Cable separate

Country of Origin:

Vietnam

Item Numbers

GTIN: 0191756958179, 4056572761050, 5711783792482, 8436575532813

UPC: 191756958179

EAN: 0191756958179, 4056572761050, 5711783792482, 8436575532813

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Datalogic QW2120-BKK11S Barcode Scanner is also known as DTL-QW2120BKK11S or QW2120BKK11S.
