Datalogic QuickScan 2200 Series – Barcode Scanner – Scanner with Cable and Stand

Part Number: QD2220-BKK1S
Model: QuickScan 2200 Series
3-year Premium Plus ($66.92)
3-year Premium ($12.22)
No Support
Add to My Shopping List Add to Compare
$81.04
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
1D / Linear Codes: ? Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic QuickScan 2200 Series, QuickScan I QD2220, Kit, Linear Imager, USB Only, Black, Kit includes Scanner, USB Cable (Part# 90A052065) and Stand (Part# STD-QW25-BK)
Explore all Datalogic QuickScan 2200 Series Barcode Scanners
Add to Quote

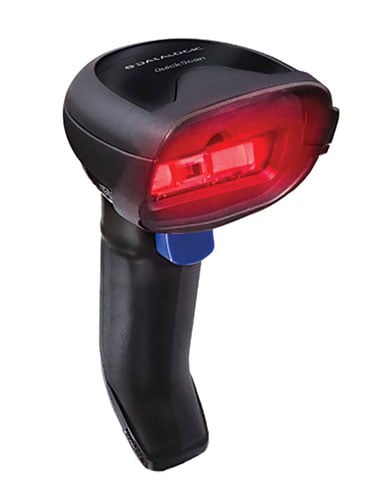

Datalogic QD2220-BKK1S Barcode Scanner
Datalogic QD2220-BKK1S Barcode Scanner
Datalogic QD2220-BKK1S Barcode Scanner
Datalogic QD2220-BKK1S Barcode Scanner Datalogic QD2220-BKK1S Barcode Scanner Datalogic QD2220-BKK1S Barcode Scanner
Full specifications (PDF)

Datalogic QuickScan 2200 Series Barcode Scanner Model Overview

The QuickScan™ QD2200 Series by Datalogic is an entry-level handheld imager designed for corded applications that efficiently handles 1D barcodes. With tailored linear imaging technology, this device excels in retail POS checkout situations and is robust enough to capture long barcodes with ease. Lightweight and user-friendly, it ensures rapid scanning and reliable performance, making it an ideal choice for businesses looking to enhance their checkout speed and accuracy without breaking the bank.


Key features
  • Lightweight and balanced design for comfortable handling
  • Extra-wide scan angle and extra-long scan line
  • Extended reading range and depth-of-field (DOF)
  • Datalogic's Green Spot technology for superior good-read feedback
  • USB interface, includes the latest USB-C
  • Aladdin TM 3.0 configurator for easy configuration
  • 5-Year Factory Warranty for peace of mind

Specifications
  • Decoding Capability: 1D/Linear Codes
  • Electrical:
    • Operating Current: <165 mA @ 5V
    • Input Voltage: 5 VDC +/- 5%
  • Environmental:
    • Ambient Light: 0 - 120,000 lux
    • Drop Resistance: 1.5 m / 5.0 ft
    • Humidity: 0-95% (Non-Condensing)
    • Sealing: IP42
  • Physical Characteristics:
    • Dimensions: 15.6 x 6.7 x 10.7 cm / 6.1 x 2.6 x 4.2 in
    • Weight: 123.0 g / 4.3 oz
  • Warranty: 5-Year Factory Warranty
Datalogic QD2220-BKK1S Barcode Scanner Overview

TAILORED LINEAR IMAGING TECHNOLOGY

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes

Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

COMFORT AND RELIABILITY

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures.

Finally, the QuickScan QD2200 imager will prove to be the best longterm choice, by cutting down-time, no read/misread management time, and service costs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • ? Auto discriminates all standard 1D codes including GS1 DataBar&trade; linear codes.
Light Source:
LED
Image Sensor Type:
  • Imager
  • CCD
Scan Mode:
Trigger
Scan Pattern:
Linear
Scanner Range:
Standard Range
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
45°
Motion Tolerance:
40 in/s
Maximum Ambient Light:
120000 lux
Drop Specification:

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Illumination Type:
LED
Illumination Color:
Red
Interfaces/Ports
Host Interface:
USB
Power Description
Input Current:
165 mA
Standby Current:
40 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Weight (Approximate):
4.34 oz
Miscellaneous
Package Contents:
  • QuickScan QD2220-BK Barcode Scanner
  • USB Cable
  • Stand
Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Retail
  • Industrial
  • Commercial Service
  • Hospitality
  • Government
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (9)
  • Mounting Hardware and Stands (5)
  • Scanner Accessories (12)

Recommended Accessories for Model: Datalogic QD2220-BKK1S Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic QD2220-BKK1S

See All Cables, Connectors, and Adapters for Datalogic QD2220-BKK1S Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic QD2220-BKK1S

See All Mounting Hardware and Stands for Datalogic QD2220-BKK1S Barcode Scanner >

Top Scanner Accessories Purchased With Datalogic QD2220-BKK1S

See All Scanner Accessories for Datalogic QD2220-BKK1S Barcode Scanner >

Frequently Asked Questions

The QD2220 is a linear imager that autodiscriminates all standard 1D barcode codes, including GS1 DataBar linear codes, postal codes, and stacked codes like EAN/JAN Composites and GS1 DataBar variants. This makes it ideal for retail POS environments where 1D barcodes remain the standard. We offer the QD2220 as a complete kit that includes the scanner, USB cable, and stand to get you up and running immediately.

Yes, the QD2220 is built for durability with IP42 particulate and water sealing protection, and it withstands repeated drops from 1.5 meters onto concrete surfaces. The scanner also features a user-replaceable window pack, which lowers your cost of ownership by allowing you to replace damaged scan windows instead of replacing the entire unit. Contact us today to discuss the QD2220's durability features for your specific application.

The QD2220-BKK1S model features USB connectivity, making it straightforward to integrate with most POS systems and computers without additional adapters. The kit includes the USB cable, so you have everything needed for immediate deployment. If you require different connectivity options, our team can help you explore alternative QuickScan models available from us.

Yes, the QD2220 is specifically designed to seamlessly read barcodes through plexiglass barriers, making it flexible for various checkout and retail environments where barriers may be present. This capability, combined with its ergonomic design and Datalogic's patented 'Green Spot' good-read feedback, provides operators with clear visual confirmation on the barcode itself. Visit barcodesinc.com to learn more about how the QD2220 can optimize your scanning workflow.

The QD2220 operates in temperatures from 0 to 50°C (32 to 122°F) and handles humidity levels of 5-95% non-condensing, with IP42 sealing protection against particulates and water. It features 16 kV ESD protection and can handle ambient light up to 100,000 lux, making it suitable for bright retail environments. The scanner weighs just 119 grams and measures 17.0 x 6.5 x 7.0 cm, providing lightweight comfort for all-day scanning operations.

The QD2220-BKK1S kit is a complete solution that includes the Datalogic QuickScan 2200 Series linear imager scanner, a USB cable for connectivity, and a stand for hands-free reading in POS environments. This all-in-one package eliminates the need to source components separately, allowing you to deploy the scanner immediately. Contact us today to order the QD2220-BKK1S kit or discuss customized scanner solutions for your warehouse or retail operation.

The Datalogic QD2220-BKK1S Barcode Scanner is also known as DTL-QD2220BKK1S or QD2220BKK1S.
