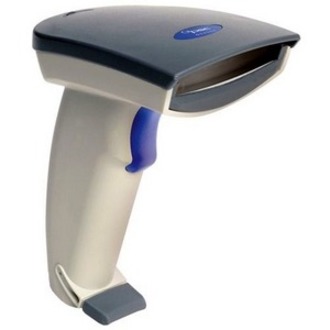

Datalogic QS25-1100-00 Barcode Scanner

The Datalogic QS25-1100-00 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QS2500 - Datalogic QuickScan QS2500 Bar Code Reader - Wired
  • Scan barcodes with a staggering speed of 200 scan/s
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic QS2500 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic QS25-1100-00 Barcode Scanner
Datalogic QS25-1100-00 Barcode Scanner Datalogic QS25-1100-00 Barcode Scanner Datalogic QS25-1100-00 Barcode Scanner Datalogic QS25-1100-00 Barcode Scanner
Datalogic QS25-1100-00 Barcode Scanner
Datalogic QS25-1100-00 Barcode Scanner
Datalogic QS25-1100-00 Barcode Scanner
Datalogic QS25-1100-00 Barcode Scanner
Full specifications (PDF)

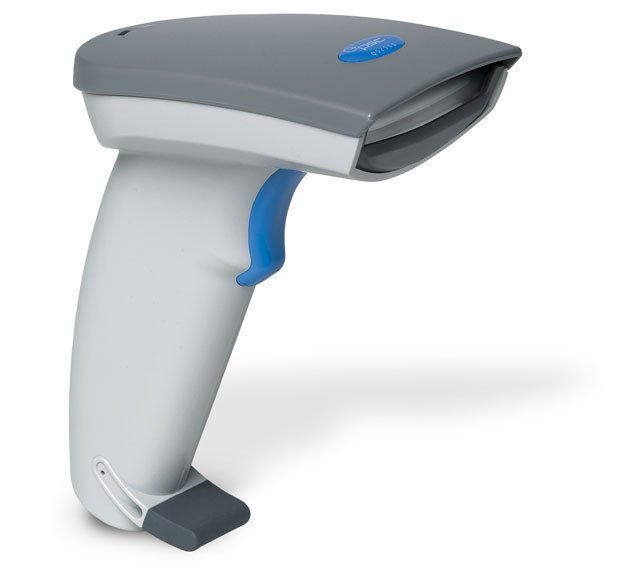

Datalogic QS2500 Barcode Scanner Model Overview
The QuickScan QS2500 Linear Imager Handheld Scanner is ideal for retail, office, and light-industrial applications. The QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field (up to 8.0" / 20.3 cm). The QS2500 also reads poorly printed barcode labels quickly and easily. The QS2500 is capable of reading a wide range of barcode symbologies, including Reduced Space Symbology (RSS) and PDF417, allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades, along with programming and label editing. Its enclosure is lightweight and ergonomic, and has an available hands-free tabletop stand. All units ship with one user's guide. The QuickScan QS2500 now includes a five year warranty!
Datalogic QS25-1100-00 Barcode Scanner Overview

Ideal for:

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • Code 128
  • Codabar
  • Pharmacode 39
  • Code 39
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 16K
  • UK Plessey
  • MSI/PLESSEY
  • Telepen
  • RSS-14
  • RSS-14 Expanded
  • RSS-14 Limited
  • RSS-14 Stacked
  • RSS-Limited
  • PDF417 with Audio Assist
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
200 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 4.5"@5mil
  • 0.5" - 8.5"@10mil
  • 0.5" - 11"@13mil - 100% UPC
  • 1" - 16"@20mil
  • 2" - 28"@40mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
7.3"
Width:
2.9"
Depth:
4.5"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 46XX
  • USB

    • Certifications & Standards:

    Electrical:

    • UL
    • cUL

    Emissions:

    • FCC-A
    • EN 55022-B
    • VCCI-B

    Laser classification:

    • IEC 60825 Class 1 LED

    Restriction of Hazardous Substances:

    • Complies to EU RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic QS25-1100-00 Barcode Scanner is also known as PSC-QS251100
