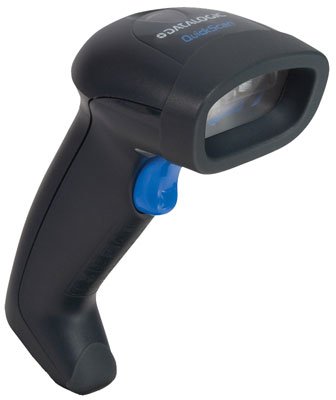

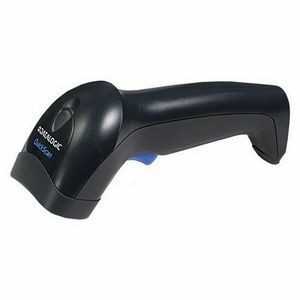

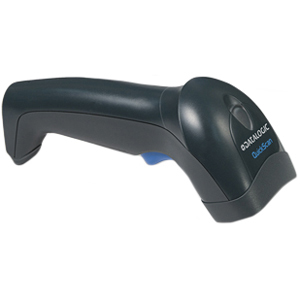

Datalogic QD2330-BKK1 Barcode Scanner
Datalogic QD2330-BKK1 Barcode Scanner
Datalogic QuickScan L -
USB Kit with USB cable. Color: Black.
Share:
Gun Shaped Ergonomics: Easy to handle and use
The Datalogic QuickScan L: QD2300 barcode reader is a barcode scanner with laser technology at an affordable price. The QuickScan L: QD2300 reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read barcodes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. The wider than usual scan angle allows users to read a longer barcode from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5 oz / 128 gr (without the cable).
Technical Information
- Barcode Dimension: 1D
- Scan Rate: 100 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- Interleaved 2/5
- Code 39 full ASCII
- Code 39 TriOptic
- Discrete 2/5
- UPC/EAN with supplementals
- UCC/EAN128
- Code 128
- Code 128 full ASCII
- Code 93
- CODABAR
- Code MSI
- Code 11
- IATA
- GS1 DataBar
- Chinese 2 of 5
- Interleaved 2/5
- Code 39 full ASCII
- Code 39 TriOptic
- Discrete 2/5
- UPC/EAN with supplementals
- UCC/EAN128
- Code 128
- Code 128 full ASCII
- Code 93
- CODABAR
- Code MSI
- Code 11
- IATA
- GS1 DataBar
- Chinese 2 of 5
- Maximum Scan Resolution: 5 mil
- Depth of Field: 5.50"@5 mil
General Information
- Product Type: Handheld Barcode Scanner
- Product Series: L
- Brand Name: Datalogic
- Manufacturer: Datalogic S.p.A
- Product Name: QuickScan L Barcode Reader
- Product Line: QuickScan
Physical Characteristics
- Color: Black
- Weight (Approximate): 4.50 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Additional Information:
- Supported Interfaces:
- RS-232
- Keyboard Wedge
- USB Keyboard
- USB HID
Full specifications (PDF)| Brand | Datalogic |
| Model | QuickScan L: QD2300 |
| Connection | USB |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Connectivity | Corded |
| Form Factor | Handheld |
| Included Cables | USB |
| Color | Black |
| Scan Pattern | Single Line |
| Ruggedness | General Purpose |
