Datalogic QuickScan 2200 Series – Barcode Scanner – Cable Only

Part Number: QD2220-BKK1
Model: QuickScan 2200 Series
3-year Premium Plus ($66.92)
3-year Premium ($12.22)
No Support
Add to My Shopping List Add to Compare
$75.57
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
1D Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes.
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic QuickScan 2200 Series, QuickScan I QD2220, Kit, Linear Imager, USB Only, Black, Kit includes Scanner and USB Cable (Part# 90A052065)
Explore all Datalogic QuickScan 2200 Series Barcode Scanners
Add to Quote

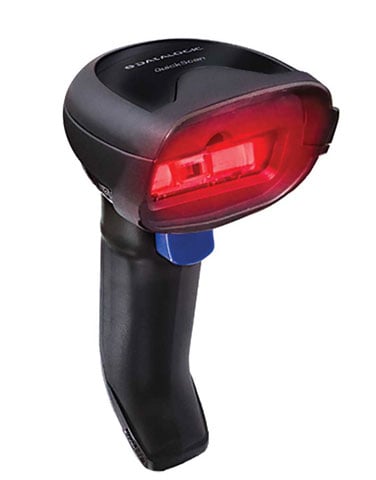

Datalogic QD2220-BKK1 Barcode Scanner
Datalogic QD2220-BKK1 Barcode Scanner
Datalogic QD2220-BKK1 Barcode Scanner
Datalogic QD2220-BKK1 Barcode Scanner Datalogic QD2220-BKK1 Barcode Scanner Datalogic QD2220-BKK1 Barcode Scanner
Full specifications (PDF)

Datalogic QuickScan 2200 Series Barcode Scanner Model Overview

The QuickScan™ QD2200 Series by Datalogic is an entry-level handheld imager designed for corded applications that efficiently handles 1D barcodes. With tailored linear imaging technology, this device excels in retail POS checkout situations and is robust enough to capture long barcodes with ease. Lightweight and user-friendly, it ensures rapid scanning and reliable performance, making it an ideal choice for businesses looking to enhance their checkout speed and accuracy without breaking the bank.


Key features
  • Lightweight and balanced design for comfortable handling
  • Extra-wide scan angle and extra-long scan line
  • Extended reading range and depth-of-field (DOF)
  • Datalogic's Green Spot technology for superior good-read feedback
  • USB interface, includes the latest USB-C
  • Aladdin TM 3.0 configurator for easy configuration
  • 5-Year Factory Warranty for peace of mind

Specifications
  • Decoding Capability: 1D/Linear Codes
  • Electrical:
    • Operating Current: <165 mA @ 5V
    • Input Voltage: 5 VDC +/- 5%
  • Environmental:
    • Ambient Light: 0 - 120,000 lux
    • Drop Resistance: 1.5 m / 5.0 ft
    • Humidity: 0-95% (Non-Condensing)
    • Sealing: IP42
  • Physical Characteristics:
    • Dimensions: 15.6 x 6.7 x 10.7 cm / 6.1 x 2.6 x 4.2 in
    • Weight: 123.0 g / 4.3 oz
  • Warranty: 5-Year Factory Warranty
Datalogic QD2220-BKK1 Barcode Scanner Overview

TAILORED LINEAR IMAGING TECHNOLOGY

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes

Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

COMFORT AND RELIABILITY

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures.

Finally, the QuickScan QD2200 imager will prove to be the best longterm choice, by cutting down-time, no read/misread management time, and service costs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Linear
Scanner Range:
Standard Range
Scanning Distance:
40.60"
Features:
  • Beep
  • Notification LED
Cable Type Included:
USB
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
45°
Motion Tolerance:
40 in/s
Maximum Ambient Light:
120000 lux
Drop Specification:

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Illumination Type:
LED
Illumination Color:
Red
Air Electrostatic Discharge (+/-):
16kV
Interfaces/Ports
Host Interface:
USB
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Weight (Approximate):
4.34 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Retail
  • Industrial
  • Commercial Service
  • Hospitality
  • Government
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (9)
  • Mounting Hardware and Stands (5)
  • Scanner Accessories (12)

Recommended Accessories for Model: Datalogic QD2220-BKK1 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic QD2220-BKK1

See All Cables, Connectors, and Adapters for Datalogic QD2220-BKK1 Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic QD2220-BKK1

See All Mounting Hardware and Stands for Datalogic QD2220-BKK1 Barcode Scanner >

Top Scanner Accessories Purchased With Datalogic QD2220-BKK1

See All Scanner Accessories for Datalogic QD2220-BKK1 Barcode Scanner >

Frequently Asked Questions

The QD2220 is a linear imager that reads all standard 1D barcode symbologies, including GS1 DataBar linear codes, postal codes, and stacked codes. It's specifically designed for retail POS environments where 1D barcodes remain the primary standard. The scanner's reading capability extends across a wide variety of barcode formats, making it versatile for most warehouse and retail applications.

Yes, the QD2220 seamlessly reads barcodes through plexiglass barriers, making it ideal for checkout counters and environments where scanners need to work through protective shields. This capability gives operators full control and flexibility in various work environments without sacrificing read reliability.

The QD2220-BKK1 kit includes a USB connection, making it compatible with modern POS systems and computers. The kit comes with the scanner and USB cable, providing plug-and-play installation for retail and warehouse environments.

The QD2220 features robust construction designed for daily retail and warehouse use, with IP42 particulate and water sealing protection. It can withstand repeated drops from 1.5 meters (5 feet) onto concrete surfaces and operates in ambient light conditions up to 100,000 lux, making it reliable for demanding work environments.

The scanner features Datalogic's patented 'Green Spot' technology that provides visual feedback directly on the barcode, along with an adjustable beeper for audible confirmation of good reads. This dual feedback system helps operators confirm successful scans quickly and intuitively, reducing no-read errors and improving efficiency.

We offer the Datalogic QD2220-BKK1 barcode scanner as part of our comprehensive AIDC product lineup. Contact us today or visit barcodesinc.com to order this scanner and get expert guidance on the right solution for your retail or warehouse operation.

The Datalogic QD2220-BKK1 Barcode Scanner is also known as DTL-QD2220BKK1 or QD2220BKK1.
