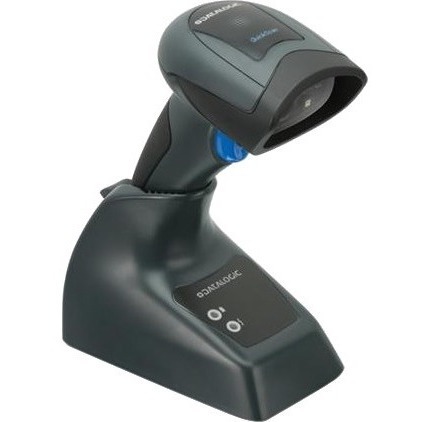

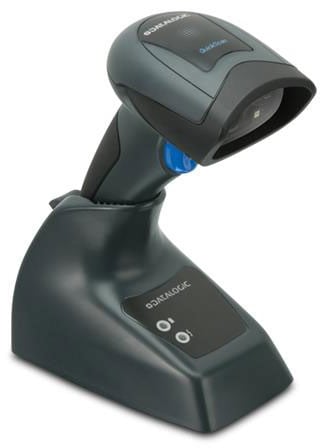

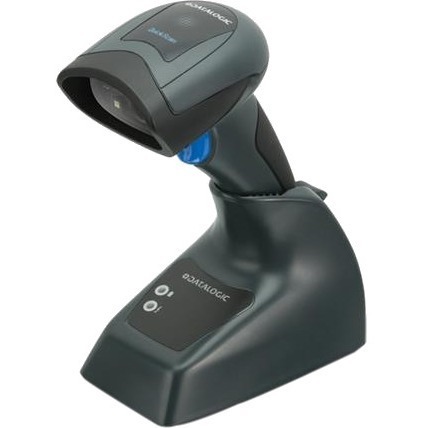

Datalogic QBT2430-BK Barcode Scanner

Datalogic QuickScan QBT2430 - Cordless Barcode Scanner, Datalogic QuickScan QBT2430, 2D Area Imager, General Purpose, Handheld, Bluetooth, SCANNER ONLY, Black. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately
Connectivity
Cordless
Form Factor
Handheld
Scanner Capability
1D, 2D
Scanner Type
Imager
Ruggedness
General Purpose
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
Read More
$528.49
In Stock
Recommended TrueSupport Coverage (/mo.)
Quantity Discount
2 $ in Cart
4+ Chat for discount
For large quantities, register an opportunity with us to receive discounts up to 15%
Add to Quote

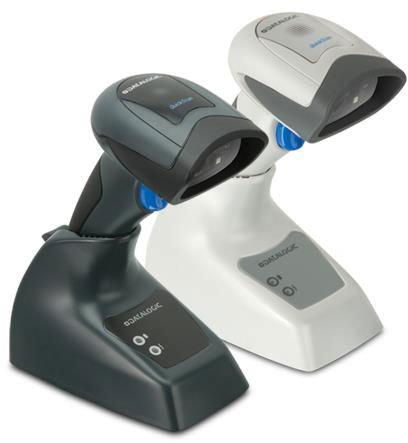

Datalogic QuickScan QBT2400 Barcode Scanner Model Overview

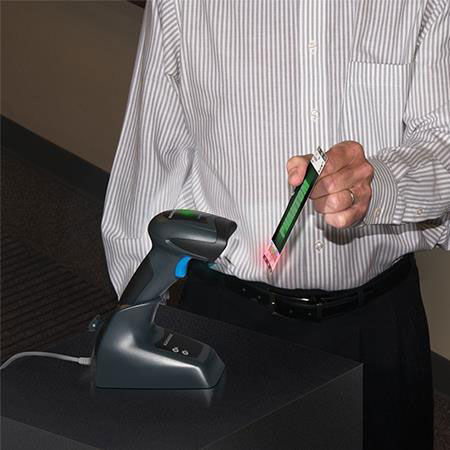

Ideally suited for applications at the point-of-sale (POS), the Datalogic QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. The QuickScan QBT2400 consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency. The QuickScan QBT2400 reader also features Datalogic?s patented ?Green Spot? technology for additional good read confirmation by placing a green spot directly on the code.
Datalogic QBT2430-BK Barcode Scanner Overview

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.

The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.5cm - 15cm@5mil - Code 39
  • 0.5cm - 35cm@13mil - EAN/UPCA
  • 2cm - [email protected] - PDF417
  • 2cm - 16cm@10mil - Data Matrix
Scan Pattern:
Omni-directional
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
30000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Miscellaneous
Additional Information:

USB Cable separate

Country of Origin:
Vietnam
Item Numbers
GTIN: 0015055936273, 4056572761173
UPC: 015055936273
EAN: 0015055936273, 4056572761173
UNSPSC: 43211701
