Datalogic QBT2430-BK-BTK2 Barcode Scanner

The Datalogic QBT2430-BK-BTK2 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic QuickScan QBT2430 - Cordless Barcode Scanner, Datalogic QuickScan QBT2430, 2D Area Imager, General Purpose, Handheld, Bluetooth, RS-232, Black. Kit inc. Imager, Base Station and 90G000008 RS-232 Cable, 8-0935 Power Supply and 6003-0940 EU Line Cord.

Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
Allows productive and precise reading of 1D barcodes
Streamline your business processes with an imager that point-shoots with high-performance scanning
Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
With Bluetooth technology, you can scan barcodes and then transmit data from the base

Need a different version? See all Datalogic QuickScan QBT2400 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Datalogic QBT2430-BK-BTK2 Barcode Scanner

Overview

Full specifications (PDF)

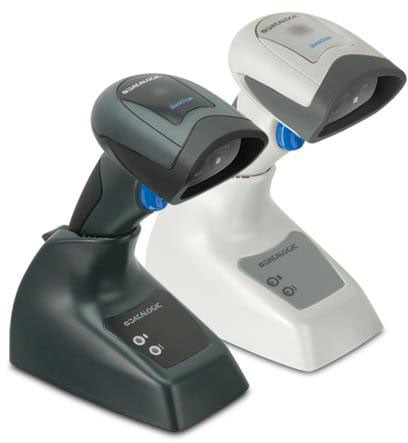

Datalogic QuickScan QBT2400 Barcode Scanner Model Overview

Ideally suited for applications at the point-of-sale (POS), the Datalogic QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. The QuickScan QBT2400 consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency. The QuickScan QBT2400 reader also features Datalogic?s patented ?Green Spot? technology for additional good read confirmation by placing a green spot directly on the code.

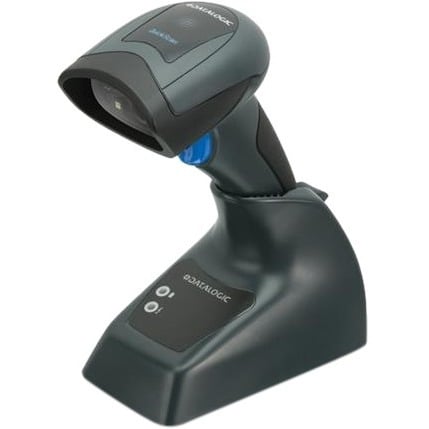

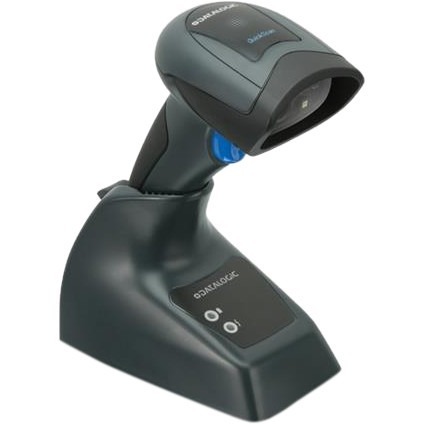

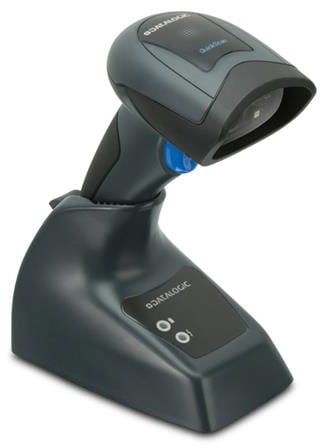

Datalogic QBT2430-BK-BTK2 Barcode Scanner Overview

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.

The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

2D Codes:

Aztec Code
Aztec Mesas
Data Matrix
MaxiCode
QR Code
Micro QR Code
China Han Xin Code

Postal Codes:

Australian Post
British Post
Canadian Post
China Post
IMB
Japanese Post
KIX Post
Korea Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Image Sensor Type:

Imager

Maximum Scan Resolution:

4 mil

Depth of Field:

0.5cm - 15cm@5mil - Code 39
0.5cm - 35cm@13mil - EAN/UPCA
2cm - [email protected] - PDF417
2cm - 16cm@10mil - Data Matrix

Scan Pattern:

Omni-directional

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Serial

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Maximum Number of Scans per Full Charge:

30000

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black

Height:

6.4"

Width:

1.6"

Depth:

3.6"

Weight (Approximate):

7.05 oz

Miscellaneous

Additional Information:

USB Cable separate

Country of Origin:

Vietnam

Item Numbers

GTIN: 5711783253204

EAN: 5711783253204

UNSPSC: 43211701
