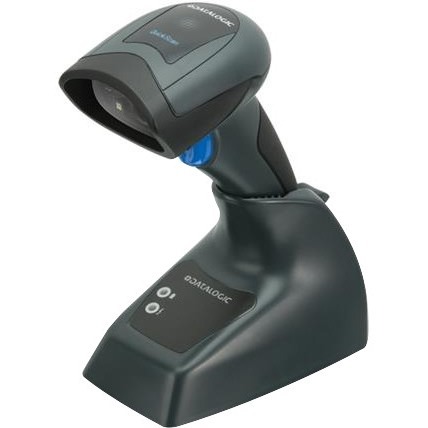

Datalogic QuickScan QBT2430 – Barcode Scanner – Cordless – 1D, 2D – Scanner with Cable and Stand

Part Number: QBT2430-BK-BTK1
Model: QuickScan I QBT2400
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
1D, 2D

Product Description:

  Cordless Barcode Scanner, Datalogic QuickScan QBT2430, 2D Area Imager, General Purpose, Handheld, Batch/Bluetooth, Black, Driver's License. Kit inc. Imager and Base Station. Kit inc. Imager, Base Station and USB Cable.
Explore all Datalogic QuickScan QBT2400 Barcode Scanners
Add to Quote
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner
Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner Datalogic QBT2430-BK-BTK1 Barcode Scanner
Full specifications (PDF)

Datalogic QuickScan QBT2400 Barcode Scanner Model Overview

The Datalogic QuickScan™ QBT2400 is a cutting-edge 2D imager designed for efficiency and ease of use in various applications like retail and point-of-sale environments. With its advanced Bluetooth® wireless technology, this imager provides seamless data transmission to multiple devices, ensuring high productivity. The innovative illumination and aiming system reduces visual stress for operators while maintaining precision, coupled with Datalogic's unique 'Green Spot' technology for clear good-read feedback. The QBT2400 also features a durable, long-lasting battery that is easily replaceable, making it an ideal solution for fast-paced work environments.
Key Features
  • Bluetooth wireless technology with a range of up to 25.0 m (82.0 ft)
  • Compatible with Android and iOS devices via Bluetooth HID profile
  • Easy, tool-free, user-replaceable lithium-ion battery
  • Alternative recharging method through USB/microUSB cable
  • Reduces visual stress with LED-based aiming system
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • Batch Mode capability: stores over 500 linear codes
  • 3-Year Factory Warranty for peace of mind

Specifications
  • Cordless Communication: Bluetooth 3.0 Certified Class 2
  • Decoding Capability: Supports 1D, 2D, and postal codes
  • Electrical:
    • Battery Type: Lithium-Ion 1400 mAh
    • Charge Time: <3 hrs @ 12 VDC
  • Reading Performance:
    • Wide VGA: 752 x 480 pixels
    • Resolution: 0.102 mm / 4 mils (Linear Codes)
  • Environmental:
    • Operating Temperature: 0 to 50 °C / 32 to 122 °F
    • Humidity: 5-95% (non-condensing)
    • Water Sealing: IP42
  • Physical Characteristics:
    • Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in
    • Weight: Reader - 200 g / 7.1 oz; Base/Charger - 230 g / 8.1 oz
Datalogic QBT2430-BK-BTK1 Barcode Scanner Overview

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Featuring Bluetooth&reg; Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.

The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar&trade; linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.5cm - 15cm@5mil - Code 39
  • 0.5cm - 35cm@13mil - EAN/UPCA
  • 2cm - [email protected] - PDF417
  • 2cm - 16cm@10mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Cable Type Included:
USB
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
30000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Miscellaneous
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Industrial
  • Retail
Country of Origin:
Vietnam
Item Numbers
GTIN: 0010031781014, 0493212781995, 0785525091282, 5712505174333
UPC: 010031781014, 493212781995, 785525091282
EAN: 0010031781014, 0493212781995, 0785525091282, 5712505174333
UNSPSC: 43211701
