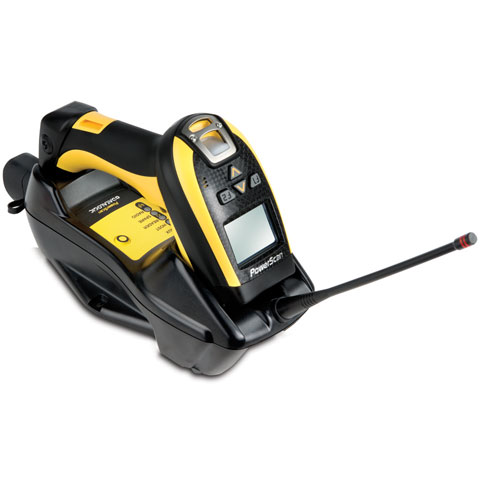

DataLogic PowerScan PM9501 Barcode Scanner Model Overview
The PowerScan™ PM9501 from Datalogic offers an effortless and intuitive scanning experience, designed to enhance productivity in various environments. With its omnidirectional reading capabilities, this high-performance scanner efficiently decodes any type of barcode from contact up to 1.0 m / 3.3 ft away, while the advanced decoding software ensures quick and accurate scanning. Its ergonomic design promises superior comfort and usability, making it ideal for extensive scan-intensive applications. The high-capacity Lithium-Ion battery allows for exceptional performance, ensuring you can rely on the PowerScan PM9501 to meet your operational demands.
Key Features
High-performance Liquid Lens for reading standard, wide, and high-density codes
Omnidirectional scanning for versatile barcode reading
Ergonomic handle reduces wrist strain
User-friendly interface with optional display and customizable keypads
Soft white light illumination for improved visibility
Multiple wireless communication options including Standard and Industrial Ethernet
IP65 rated for protection against dust and water
Specifications
Dimensions: Cradle: 24.0 x 10.8 x 9.5 cm; PM9501: 21.2 x 11.0 x 7.4 cm
Weight: PM9501-XX: 400 g; PM9501-DKXX: 445 g
Battery: Lithium-Ion 3350 mAh, Reads per charge: 60,000+
Radio Frequency: 433 MHz (200 m low speed), 910 MHz (270 m low speed)
Operating Temperature: -20 to 50 °C
Drop Resistance: Up to 50 drops from 2.0 m onto concrete
Sealing Rating: IP65 for dust and water resistance
An intuitive and effortless scanning experience is the target of the PowerScan™ 9501 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.
MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9501 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.
The PM9501 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.
The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
The Datalogic PM9501-HP433RBK10 Barcode Scanner is also known as
DTL-PM9501HP433RBK10
