Datalogic PowerScan PM9500 Barcode Scanner Model Overview
AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic’s latest decoding software guarantees snappy reading in any type of environment.
Key Features:
- High-performance Liquid Lens allows one model to read standard, wide and high density codes
- Snappy omnidirectional reading
- Intuitive aiming system
- Soft white light illumination
- Available with optional display and 4 or 16-key keyboards
- High speed 433 MHz and 910 MHz radio communications
- Point-to-point and multi-point transmission
- Networking and seamless roaming
- Multiple interfaces available
- Ethernet Connectivity (Standard and Industrial)
- Lithium-Ion battery replaces in 3 seconds!
- Datalogic’s Motionix™ motion-sensing technology
- Ergonomic shape
- Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
- Water and Particulate Sealing Rating: IP65
- In-field replaceable window and cradle contacts
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.

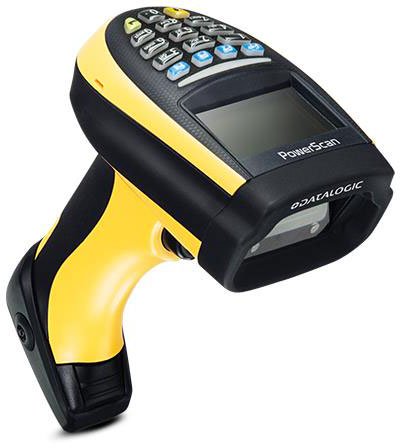

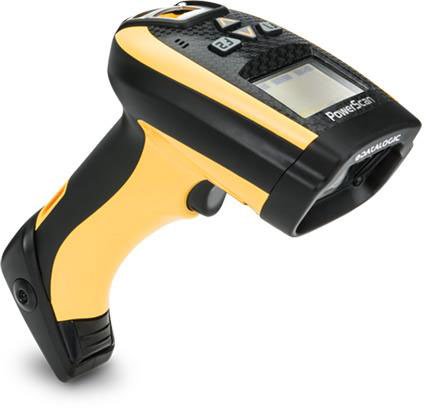

The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.
The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
INDUSTRY - APPLICATION • Entertainment: • Access Control • Mobile Coupons • Ticket Validation • Security / Age Verification • Lottery • Manufacturing Shop Floor: • Work-in-Progress • Sub-Assembly • Component Tracking • Quality Control • Time and Cost Analysis • Machine Replenishment /Configuration • Line Inventory Control • Warehouse and Logistic Centers: • Shipping / Receiving • Parcel Preparation • Picking / Put Away • Automatic Sorting Back-Up • End of Line Sorting
Brand
Datalogic
Model
PowerScan PM9500
Included Cables
USB
Kit Options
Scanner with Cable and Stand
Get help from a Barcoding Expert!
The Datalogic PM9501-BK910-RTK20 Barcode Scanner is also known as
DTL-PM9501BK910RTK20
or PM9501BK910RTK20.
