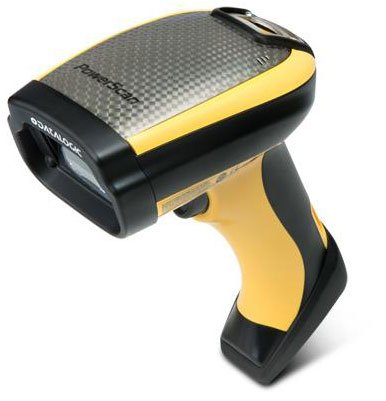

Datalogic PowerScan PM9500-DPM Barcode Scanner Model Overview
The PowerScan PM9500-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance of the PowerScan PM9500-DPM is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The PowerScan PM9500-DPM scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.
The PowerScan™ PM9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.
The PowerScan PM9530-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.
Base Presentation Charger, Datalogic PowerScan 9501 Retail, BC9030, 910MHz, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately

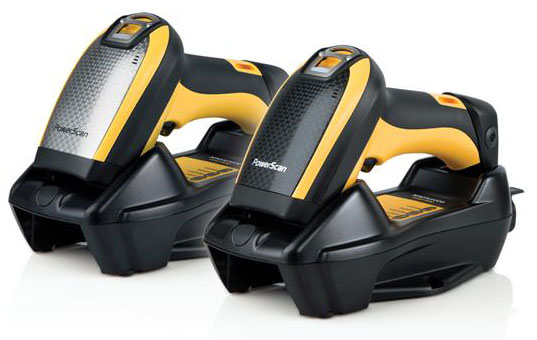

Base Presentation Charger, Datalogic PowerScan 9501, BC9030, Docking for Barcode Scanner, Charging Capability, Bluetooth Connectivity, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately
Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Base Presentation Charger, Datalogic PowerScan 9501 Retail, BC9030, 910MHz, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
The Datalogic PM9500-DPM910RBK20 Barcode Scanner is also known as
DTL-PM9500DPM910RB03
or PM9500DPM910RBK20.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
