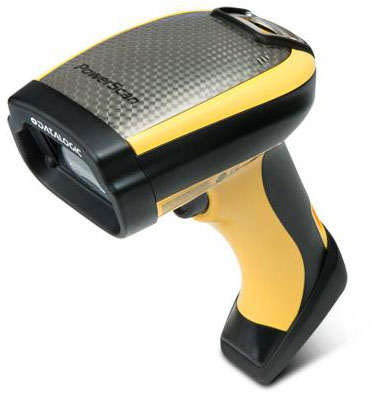

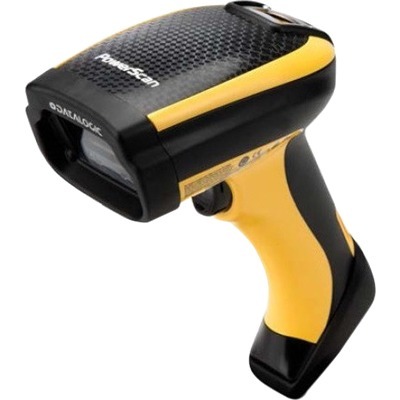

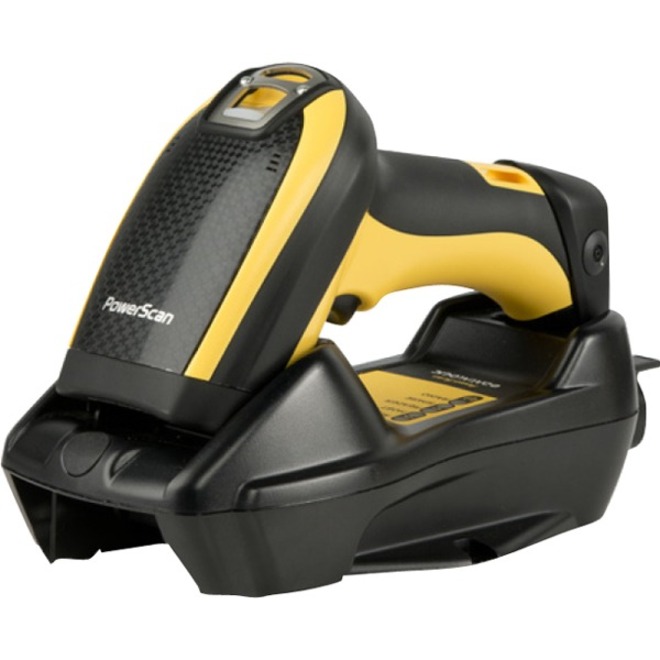

Datalogic PowerScan PM9500-DPM – Barcode Scanner – Cordless – 2D

Part Number: PM9500-DPM910RB
Model: PowerScan PM9500-DPM
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Scanner Capability
2D
Scanner Type
CCD, Imager

Product Description:

  SCANNER ONLY, Cordless 2D DPM Scanner, Direct Part Marking Optics, Removable Battery. Cradle, cables, and power supply sold separately.
Explore all Datalogic PowerScan PM9500-DPM Barcode Scanners
Add to Quote
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner
Datalogic PM9500-DPM910RB Barcode Scanner Datalogic PM9500-DPM910RB Barcode Scanner Datalogic PM9500-DPM910RB Barcode Scanner Datalogic PM9500-DPM910RB Barcode Scanner Datalogic PM9500-DPM910RB Barcode Scanner Datalogic PM9500-DPM910RB Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Datalogic PowerScan PM9500-DPM Barcode Scanner Model Overview

The PowerScan PM9500-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance of the PowerScan PM9500-DPM is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The PowerScan PM9500-DPM scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.
Datalogic PM9500-DPM910RB Barcode Scanner Overview

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

The PowerScan™ PM9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PM9530-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Cdoes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Scanning Distance:
5.91"
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8.3"
Width:
4.3"
Depth:
2.9"
Weight (Approximate):
13.40 oz
Miscellaneous
Package Contents:
  • PowerScan PM9500-DPM Handheld Barcode Scanner
  • Base Station BC9030-910
  • Cable CAB-433
  • Power Brick 8-0935
  • Power Cord 6003-0941
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
