Datalogic PM8300-910 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

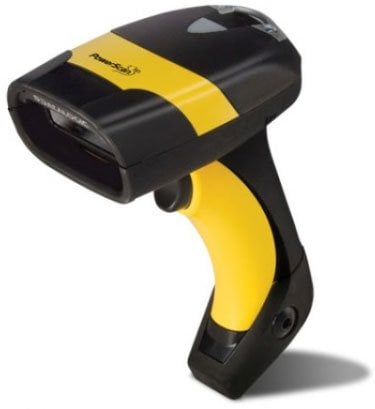

Datalogic PowerScan PM8300 - SCANNER ONLY. Laser Scanner, standard range, no display, no keypad. Does not include necessary cables or accessories. For the full Kit see (Part# PM8300-910K1).
Standard Range and Auto Range optic models available

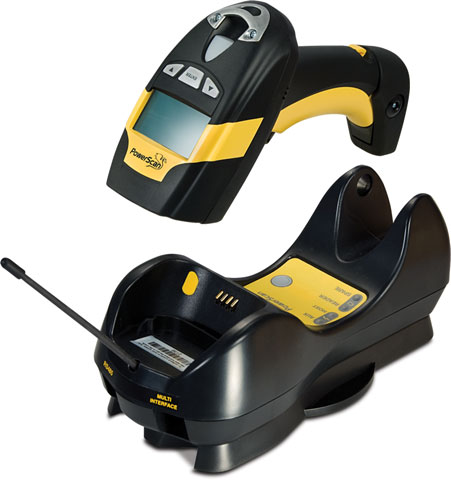

The Datalogic PowerScan PM8300, featuring the STAR Cordless System for narrow band radio communications, represents the key to increased productivity and flexibility in the workplace. It offers scalable solutions to solve simple point-to-point applications as well as networking capability combined with seamless roaming for complex projects. An optional display with a 3-button keypad provides time and battery status and enables interaction with the host. The PowerScan PM8300 readers' mechanics have been developed and tested to withstand extreme environmental conditions maintaining consistent reading performance. Hard shocks (6.5 ft. / 2 m drops), dust and water (IP65/IP64 sealed) and adverse temperature conditions (operative at -22F / -30C) do not affect product performance or reliability.

Technical Information

  • Scan Rate: 35 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 98.43 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • 2/5 family
    • Code 39 (plus Code 32 Cip 39)
    • EAN/UPC
    • EAN-128
    • Code 128
    • Code 93
    • Codabar
    • Code 49
    • Code MSI
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • GS1 Databar
    • 2/5 family
    • Code 39 (plus Code 32 Cip 39)
    • EAN/UPC
    • EAN-128
    • Code 128
    • Code 93
    • Codabar
    • Code 49
    • Code MSI
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • GS1 Databar
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 1.18" - 3.94"@5 mil
    • 1.18" - 7.09"@7.50 mil
    • 1.18" - 12.99"@10 mil
    • 1.18" - 16.54"@13 mil
    • 1.18" - 19.69"@15 mil
    • 1.18" - 25.59"@20 mil
    • 1.18" - 39.37"@40 mil
    • 3" - 110"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: M8300
  • Product Name: PowerScan M8300 SR Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Weight (Approximate): 13.93 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Environmental Protection IP65
    • Electrical:
    • C-CSA-US (60950 to Canada and USA)
    • Emissions:
    • FCC-A
    • EN 55022-B
    • AS/NZS 3548
    • Laser Classification:
    • CDRH Class II
    • IEC 60825-1 Class 2
    • Radio:
    • ETSI-ETS 300220
    • FCC 15.249
  • Additional Information:
    • Supported Interfaces:
    • USBSerialKeyboard Wedge

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model PowerScan PM8300
Connectivity Cordless
Scanner Type Laser
Scan Pattern Single Line
Color Yellow
Communication Range more than 33 ft
Scanner Capability 1D
Form Factor Handheld
Included Cables Scanner Only - No Cable
Communication Type RF
Ruggedness Rugged
