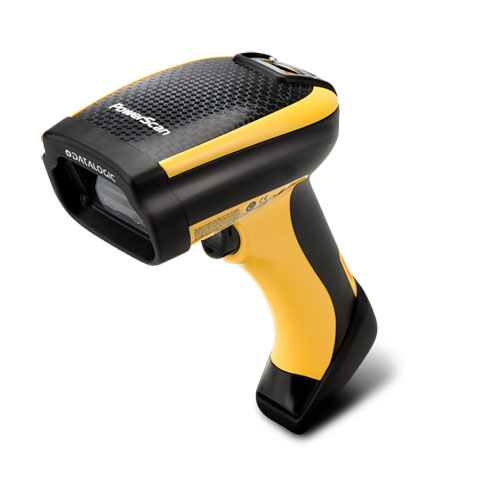

Datalogic PowerScan PM9100 Barcode Scanner Model Overview
The new PowerScan PM9100 scanner includes Datalogic's innovative green 'laser-like' acquisition system, based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 reader features Datalogic's exclusive 3GL (3 Green Lights) for superior good-read feedback. The PM9100 offers scalable solutions as well as network connections combined with seamless roaming for complex installations. The PM9100 scanner has been tested to withstand extreme environmental conditions and is suitable for even the toughest industrial applications.
Datalogic PM9100-910RB Barcode Scanner Overview
TECHNOLOGY DRIVEN The new PowerScan™ PM9100 series includes Datalogic's innovative new technology, a green 'laser-like' acquisition system based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 readers feature Datalogic's exclusive 3GL™ (3 Green Lights) for superior good-read feedback.
DATALOGIC'S STAR CORDLESS SYSTEM™ The PM9100 reader is based on Datalogic's STAR Cordless System™ 2.0, a proprietary narrow band radio system that offers scalable solutions from simple point-to-point applications to point-to-multipoint applications as well as network connections combined with seamless roaming for complex installations, making the STAR 2.0 Cordless System the most versatile and effective radio system, without interference caused by existing wireless solutions (Wi-Fi and/or Bluetooth).
BUILT TO LAST The PM9100 reader has been tested to withstand extreme environmental conditions and is suitable for the toughest industrial applications.

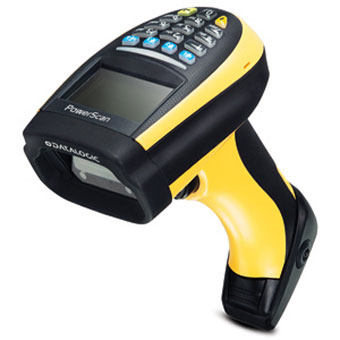

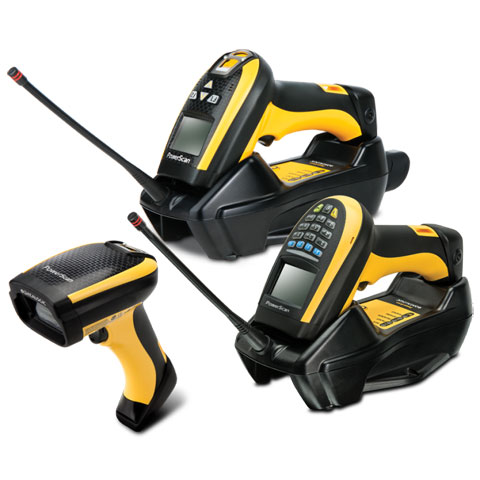

DEVELOPED WITH THE USER IN MIND The PowerScan PM9100 series includes different models able to satisfy all customers' needs; the product is available in a basic cordless model and in two different versions with display and 4 or 16-key keypads. The BC9180 base includes one model with two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus. PM9100 reader is fully supported with Datalogic's Aladdin™ configuration program, providing a user-friendly interface for the start-up procedure and device programming.

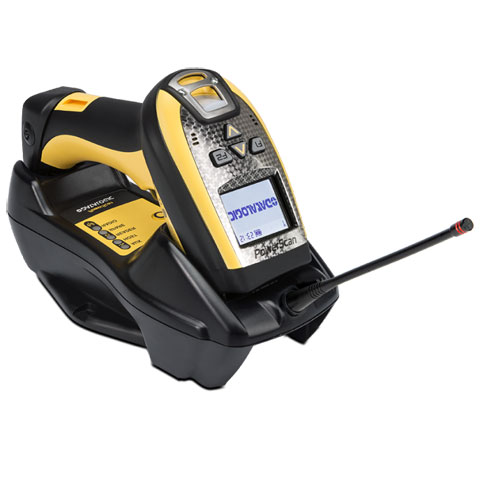

Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Base Presentation Charger, Datalogic PowerScan 9501 Retail, BC9030, 910MHz, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Ease of Care Agreement, Datalogic PowerScan 9100 Linear Imager Series, PD91, Overnight Replacement, 3 Years, Comprehensive, Service, Service Depot, Exchange, Physical Service
In Stock
$65.70
Top Wireless Access Points Purchased With Datalogic PM9100-910RB
What barcode types does the Datalogic PM9100-910RB scanner read?
The PM9100-910RB reads all standard 1D linear codes including Code 128, Code 39, EAN/UPC, and GS1 DataBar formats. It features Datalogic's innovative green laser-like acquisition system optimized for excellent 1D decoding capability across industrial and retail applications.
How long does the battery last on a single charge?
The PM9100-910RB delivers 50,000+ continuous reads per charge with its 2150 mAh Lithium-Ion battery. The battery charges in 4 hours using external power or 10 hours using host power, making it ideal for full-shift warehouse operations.
What is the wireless range of the PM9100-910RB?
Operating on 910 MHz frequency, the PM9100-910RB provides a 100-meter (328 feet) open-air wireless range with seamless roaming and two-way communications. The system supports up to 16 readers per radio receiver in multi-point configurations, perfect for large warehouse environments.
Is the Datalogic PM9100-910RB rugged enough for warehouse environments?
Yes, the PM9100-910RB is built for demanding industrial use with IP65 particulate and water sealing, 20 kV ESD protection, and the ability to withstand 50 drops from 2.0 meters (6.6 feet) to concrete. It operates reliably in temperatures from -20°C to 50°C (-4°F to 122°F) and is immune to ambient light exposure.
What connectivity options are available for the PM9100-910RB?
The PM9100-910RB supports multiple interface options including Keyboard Wedge, RS-232, RS-485, and USB (OEM USB, USB COM, USB HID Keyboard), with optional Ethernet connectivity available. This flexibility allows seamless integration with existing warehouse management systems and point-of-sale infrastructure.
What accessories are required to use the PM9100-910RB scanner?
The PM9100-910RB scanner requires the BC9030-910 base cradle, power supply (models 6003-0941 and 8-0935), and appropriate cables for your system integration. Contact us today at barcodesinc.com to ensure you have all necessary components for your specific warehouse setup.
The Datalogic PM9100-910RB Barcode Scanner is also known as
DTL-PM9100910RB
or PM9100910RB.
Full specifications (PDF)
