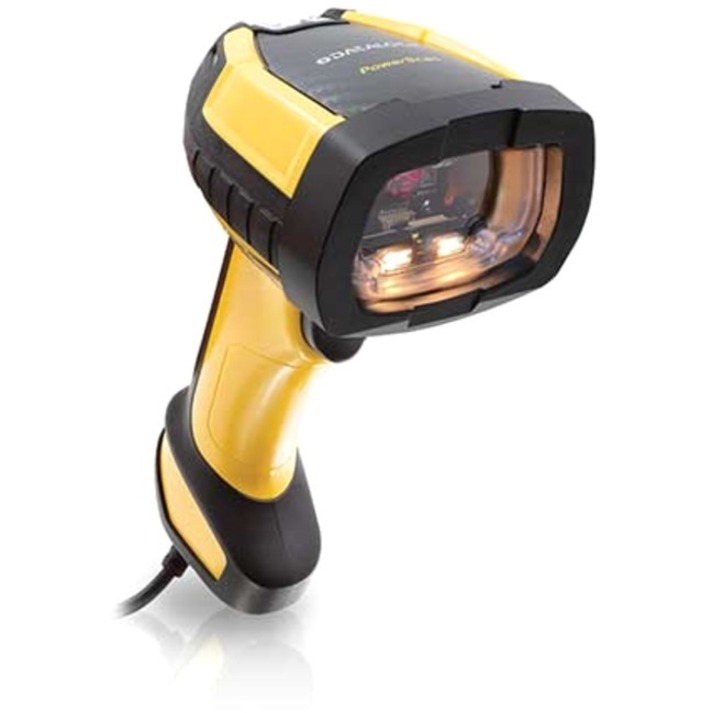

Datalogic PD9630-SRK2 Mobile Computer

Datalogic PowerScan PD9630 - Mobile Computer, Datalogic PowerScan PD9630-SR, Standard Range, RS-232 Kit. Includes: Scanner, RS232 Cable (Part# CAB-549)
  • Allows productive and precise reading of 1D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
$501.00
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $475.95 5% OFF
5 $460.92 8% OFF
Add to Quote
Datalogic PowerScan PD9630 Mobile Computer Model Overview
The Datalogic PowerScan PD9630 Ultra-Rugged Barcode Reader offers everlasting performance with optimal flexibility. The PowerScan PD9630 can easily read 1D/2D barcodes and with three optic options, Standard Range, High Performance, and Document Capture, there is a PowerScan PD9630 to handle every situation. Featuring Datalogic's new instinctive 'frame' aimer, 3GL (3 Green Lights) technology, and Motionix motion-sensing technology, the PowerScan PD9630 bundles high-performance technology in an ultra-rugged frame. IP65 and IP67 Water and Particulate Sealing Ratings as well as an ergonomic shape ensures that the PowerScan PD9630 will last under constant use.
Datalogic PD9630-SRK2 Mobile Computer Overview
Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses

Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Digital Watermarking:
  • Digimarc Barcodes (PD9630-HP and PD9630-DC)
Light Source:
LED
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Scanning Distance:
68.90"
Cable Type Included:
Serial
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Minimum Print Contrast:
15%
Maximum Element Resolution (DataMatrix):
10 mil
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Height:
7.5"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
11.22 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Warehouse
  • Logistics
  • Picking
  • Sorting
  • Industrial
Item Numbers
UNSPSC: 43211701
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic PD9630-SRK2 Mobile Computer is also known as DTL-PD9630SRK2 or PD9630SRK2.
